• Model NO.：OPGW
• Wire Core Material：Steel
• Certification：CE, ISO, RoHS, CCC, UL, VDE
• Model：Opgw
• Brand：Optelec
• Name：Optical Fiber Composite Overhead Ground Wire
• Fiber Count：12 to 48 Fibers
• Over All Diameter (Mm)：9 to 20mm
• Loose Tube：Stainless Steel Tube
• Transport Package：Iron Wooden Drum
• Specification：IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652
• Trademark：Powtech
• Origin：Qingdao, China
• HS Code：8547
• Production Capacity：100km,Month

Basic Info.

Model NO. OPGW Wire Core Material Steel Certification CE, ISO, RoHS, CCC, UL, VDE Model Opgw Brand Optelec Name Optical Fiber Composite Overhead Ground Wire Fiber Count 12 to 48 Fibers Over All Diameter (Mm) 9 to 20mm Loose Tube Stainless Steel Tube Transport Package Iron Wooden Drum Specification IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652 Trademark Powtech Origin Qingdao, China HS Code 8547 Production Capacity 100km/Month

Product Description

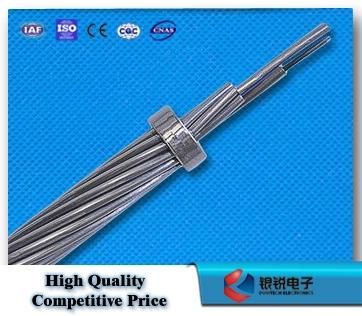

OPGW Cable





OPGW cable features:
1-Laser welded stainless steel tubes provide mechanical and thermal protection for optical fibers.
2-Light weight and small diameter
3-Good resistance to moisture and hydrogen ingress
4-Fiber counts up to 96fibers

OPGW cable standard compliance
IEEE -1138, IEC60794-4-1, IEC60793, ITU-T G. 652, ITU-T G. 655, IEC60794-1, DL/T 788-2001, YD/T 980-2002
OPGW cable technical parameter:
According fiber cores, weather condition, RTS, short circuit current capacity, DC resistance, line voltage and etc.

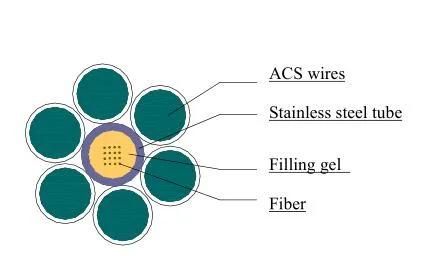

OPGW cable Mechical characteristics:
Over all diameter (mm): 9~20mm
Fiber count: 12~96fibers
Fiber optical tube: Laser welded stainless steel
Armore type: Aluminum-clad wire
Unit weight (kg/km): 250~500kg/km
Short circuit current capacity: Up to 50kA2. T
Rated tensile strength (RTS): Up to 90kN

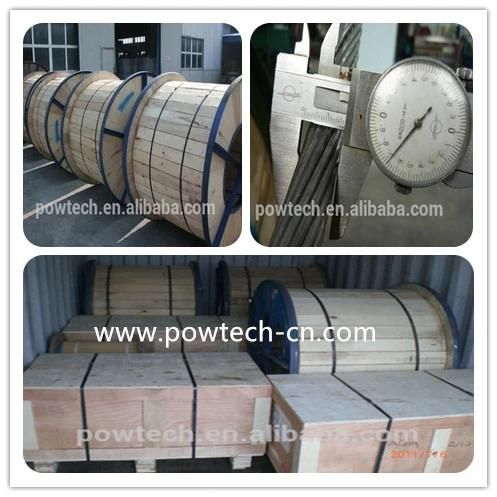

Package&shipping:

FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.

Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.

Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production

Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.

Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
