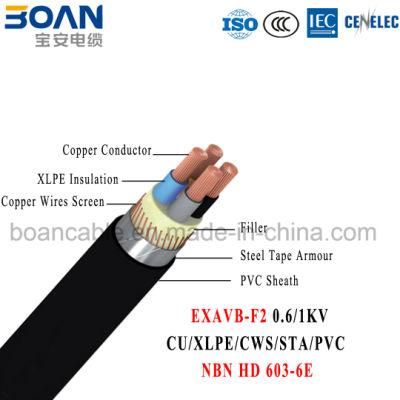

• Model NO.：EXAVB-F2
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL
• Model：Exavb-F2
• Brand：Boan
• Color：Black
• Standard：Nbn HD 603-6e
• Rated Voltage：0.6,1kv
• Insulation：XLPE Insulation
• Sheath：PVC
• Screen：Copper Wire Screen
• Armour：Steel Tape Armour
• Type：Class 2
• Certificate：ISO9001,ISO14001 ,Ohsas18001,CCC
• Origin：China Mainland
• HS Code：8544492100
• Production Capacity：22000 Kilometres Per Year

Cross section(mm²)Nominal
overall
diameter
(mm)Nominalweight
(kg/km)Minimumbending radius
(mm)Maximum
current rating
Air 30 °C *
(A)Maximum
current rating
Buried 20 ºC *(A)Voltage drop
cos μ= 0,8(V/A.km)1*1613.3455135100842.1681*2514.95701501351071.4121*3516.47951651691291.0511*5017.89401802071530.8021*7019.911702002681880.5871*9521.614602203282260.4481*12023.318002353832570.3741*15025.020552504442870.3201*18527.024702705103240.2741*24030.230653056073750.2291*30032.637603307034190.1991*40035.84685360823-0.1741*50041.15880415946-0.1561*63047.977054801088-0.1412*1622.010302201151002.1172*2525.213352551491291.3702*3527.216602751851551.0092*5030.020853002251830.7663*1622.911602301008421173*2526.4158526512710713703*3528.519802901581291.0093*7034.830203502461880.5533*9538.638753902982260.4183*12042.247854253462570.3463*15046.960004703992870.2953*18551.372455154563240.2513*24056.791055705383750.2093*30062.4110206256214190.1813*25+1*1627.617702801271071.3703*35+1*1629.621603001581291.0093*50+1*2533.428103351921530.7663*70+1*3537.134653752461880.5533*95+1*5041.244654152982260.4183*120+1*7046.158354653462570.3463*150+1*7050.168155053992870.2953*185+1*9555.083205554563240.2513*240+1*12060.8104406105383750.2093*300+1*15066.8126656703214190.1814*1624.71355250100842.117 4*2528.618952901271071.3704*3531.124003151581291.0094*5035.031053551921530.7664*7037.137603752461880.5534*9541.348854152982260.4184*12046.163154653462570.3464*15050.375805053992870.2954*18555.091855554563240.2514*24060.8116306105383750.2094*30067.1141356756214190.1815*1626.51570265100842.1175*2530.822253101271071.370* Current ratings according to IEC 60364-5-52, table B.52.12, method of installation F trefoil for
single-core cables and method of installation E for multi-core cables.
** Current ratings according to IEC 60364-5-52, table B.52.5 for single-core and three-core cables
and table B.52.3 for two-core cables, method of installation D2."
 Packaging & Shipping

Fumigated Steel-Wooden Drum/Wooden Drum

Company Information

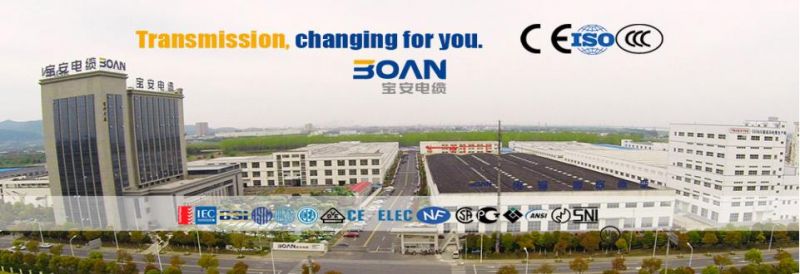

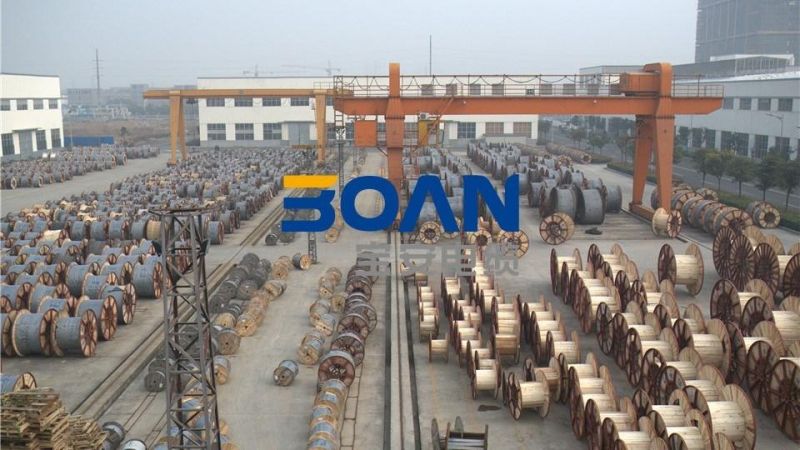

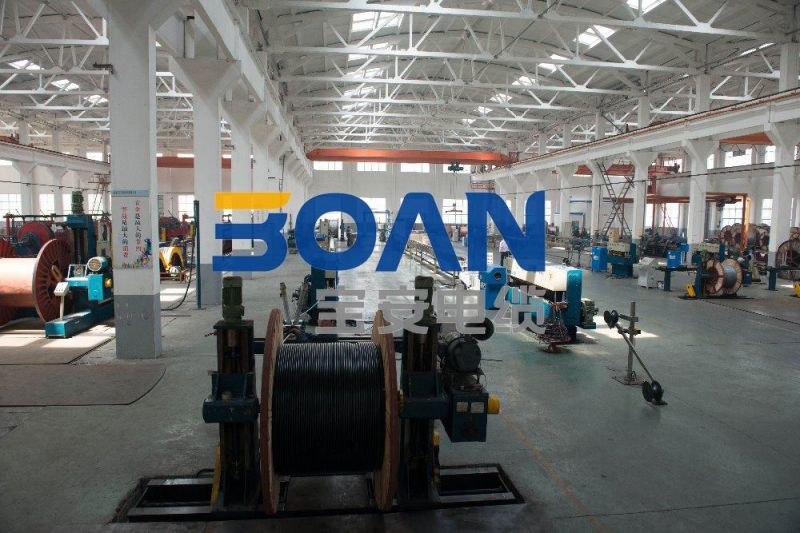

Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.

Certifications
