• Model NO.：10*20 ohm per meter
• Feature：Enameled
• Length：1 to 50000 M etc
• Diameter：About 0.95mm
• Color：Gray, Transparent etc
• Coated：FEP

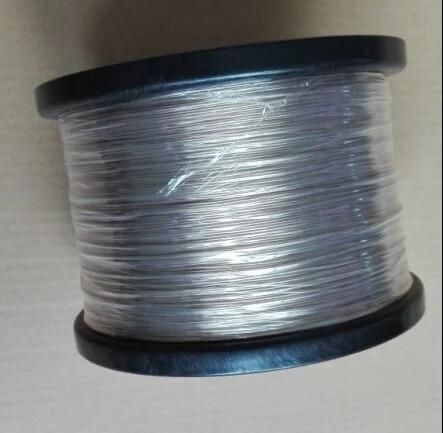

• Pack：1000 M or 5000 M Per Spool
• Strength：More Than 50n
• Volt：12
• Transport Package：Spool. Carton, Wood Case
• Specification：ISO14000
• Trademark：Senphus
• Origin：Jiangyin Wuxi
• HS Code：85168000
• Production Capacity：1000 00 Meter,Meters Per Day

Basic Info.

Model NO. 10*20 ohm per meter Feature Enameled Length 1 to 50000 M etc Diameter About 0.95mm Color Gray, Transparent etc Coated FEP Pack 1000 M or 5000 M Per Spool Strength More Than 50n Volt 12 Transport Package Spool. Carton, Wood Case Specification ISO14000 Trademark Senphus Origin Jiangyin Wuxi HS Code 85168000 Production Capacity 1000 00 Meter/Meters Per Day

Product Description

Car Seat Cushion Heating Wire

Feature

1. 1. Parameter list

1.1conductor parameter list

first, single conductor diameter:0.063mm~0.073mm

second,    pitch:9.2mm±10%

third,  heating wire quantities:20±2 pieces

forth,  Conductor Material:NCF072

fiveth,stranded diameter:0.5mm

1.2 middle part parameter list

first,  material  Polyarylate (Kuraray   vectran), 400D

second,  temperature tolerance which don't have change or deduct obviously, meantime, it can't be dissolved and burn under  -100ºCto 250ºC(fire prevention),thermal decomposition temperature >450 ºC

three, Stretching resistance: >100 N



1.3 product parameter list

 first,  Material teflon,Model:FEP  or PA12  Color:Transparent

 second, Sparkover Voltage >3000V

third, temperature tolerance:-40ºC~120ºC

 forth, thickness of extrusion:≥0.25mm

 fiveth, produce diameter:0.95±0.05mm

 sixth, produce resistance:10  ohm/m±5%

  seventh,stretching resistance≥100N

 eighth, elongation  > 2 %

 nineth, stripping force:2~8 N

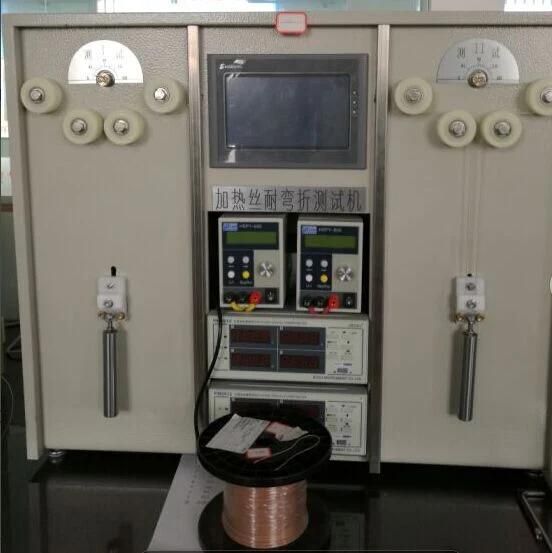

 tenth, buckling radius  1mm,buckling angle is 90 degree angle,hang subject300g, Hz360 time/minute,buckling>20000times

Senphus Car Seat Cushion Heating Wire Technique Data

Voltage(v)	Resistance(OHMs/M)	Injected Coated
12	10	None
12	0.95	FEP
12	1.8	FEP
12	1.5	Nylon

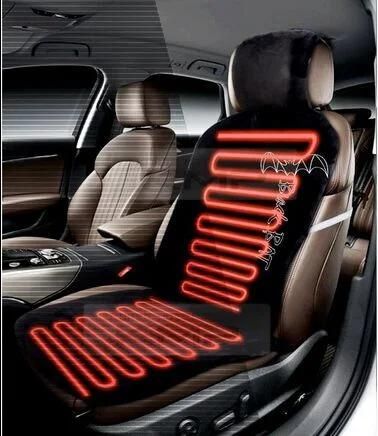

 Senphus car seat heating wire Bending times more than 10000 timeswhen the heating wire installed in the car seat cover, the whole part bending times more than 50000 times
