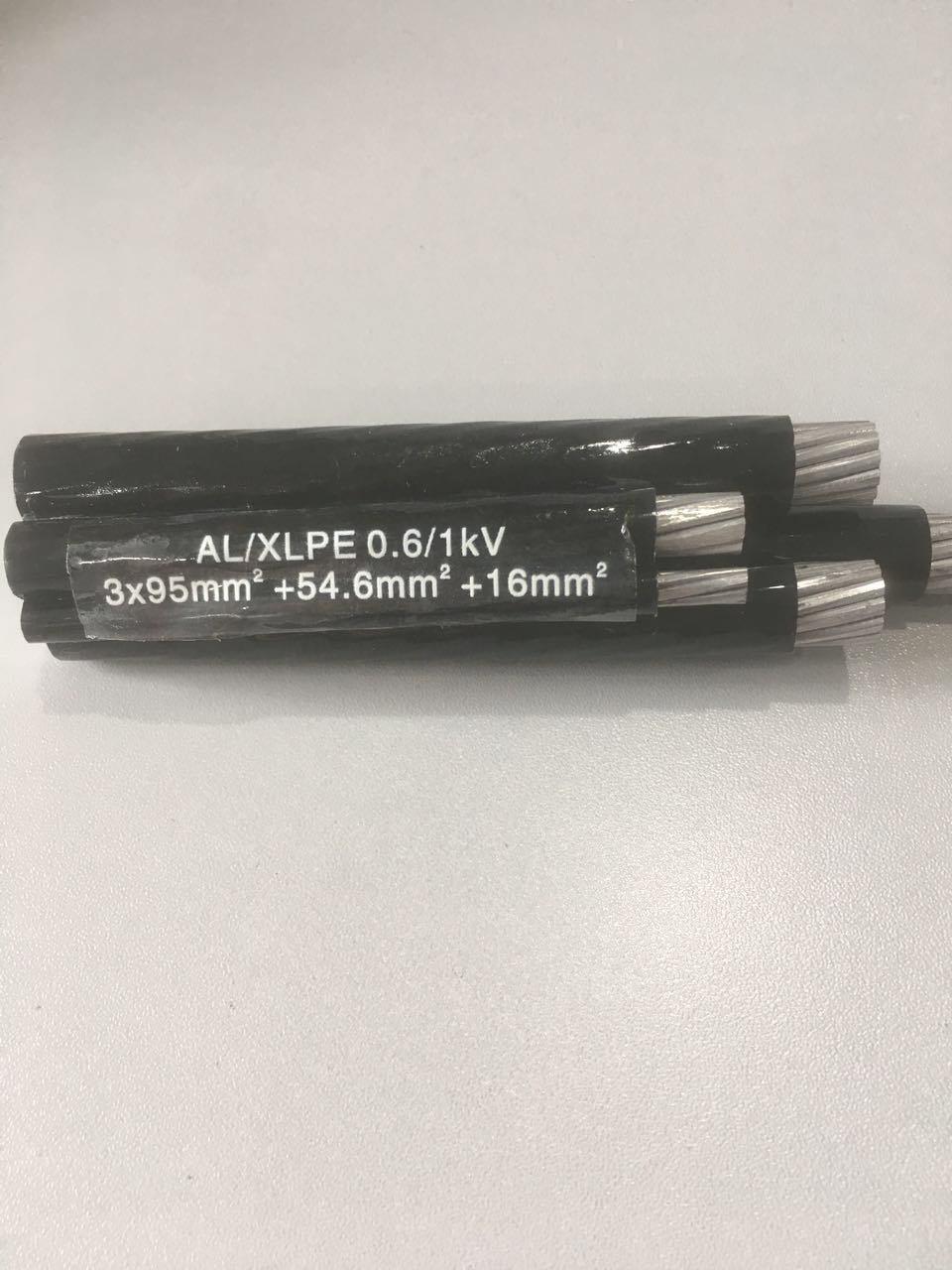

3*95+54.6+16sqmm ABC Cables with Street Lighting for Overhead
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：XLPE,PE,PVC
- Material Shape：Round Wire
Base Info
- Model NO.：3*95+54.6+16sqmm
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, RoHS
- Model：ABC
- Insulation：XLPE,PE,PVC
- Core：4
- Conductor Material：Aluminum
- Standard：IEC,NFC33-209
- Quality Guarantee：10 Years
- Sheath Color：Black
- Mark：Laser Type
- Manufacture：Yes
- Sample：Yes
- Cable Parts：Yes
- Transport Package：Wooden Drum
- Specification：4X35mm2 ABC cable
- Trademark：Hongda
- Origin：China, Henan
- HS Code：8544492100
- Production Capacity：3000km,Per Months
Description
ABC Cables without Street Lighting1+1 Structure Phase Conductor Neutral Conductor Completed Cable Section Insulation Thickness Electrical Resistance Section Insulation Thickness Electrical Resistance Overall Diameter Cable Weight DC.20°C DC.20°C No.xmm2 mm Ω/km mm2 mm Ω/km mm kg/km 1x25 1.3 1.20 25 1.3 1.20 17.6 210 1x35 1.3 0.868 35 1.3 0.868 19.6 270 1x50 1.5 0.641 50 1.5 0.641 23 360 1x70 1.5 0.443 70 1.5 0.443 26.4 500 1x95 1.7 0.320 95 1.7 0.320 30.6 680 3+1 Structure Phase Conductor Neutral Conductor Completed Cable Section Insulation Thickness Electrical Resistance Section Insulation Thickness Electrical Resistance Overall Diameter Cable Weight DC.20°C DC.20°C No.xmm2 mm Ω/km mm2 mm Ω/km mm kg/km 3x25 1.3 1.20 25 1.3 1.20 21.2 410 3x35 1.3 0.868 35 1.3 0.868 23.7 550 3x50 1.5 0.641 50 1.5 0.641 27.8 730 3x70 1.5 0.443 70 1.5 0.443 31.9 1000 3x95 1.7 0.320 95 1.7 0.320 36.9 1370 3x120 1.7 0.253 120 1.7 0.253 40.6 1690 ABC Cables with Street Lighting 3+1+1 Structure Phase Conductor Neutral Conductor Street Lighting Conductor Completed Cable Section Insulation Thickness Section Insulation Thickness Section Insulation Thickness Overall Diameter Cable Weight No.xmm2 mm mm2 mm mm2 mm mm kg/km 3x50 1.5 50 1.5 25 1.3 29.8 830 3x70 1.5 70 1.5 25 1.3 33.6 1100 3x95 1.7 95 1.7 25 1.3 38.2 1470
Standards
BS 7870-5 Hongda cable can also design and produce for special application requirement.
Packaging&Delivery
Standards
BS 7870-5 Hongda cable can also design and produce for special application requirement.
Packaging&Delivery

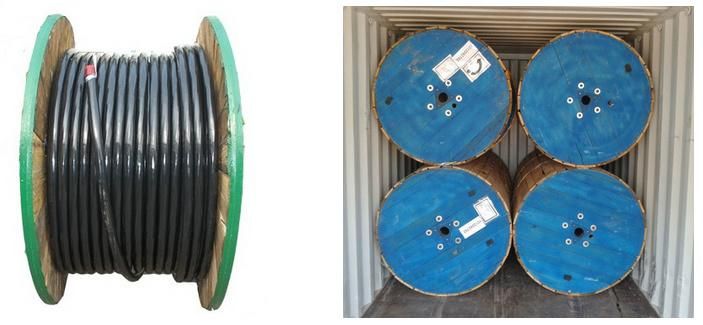

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 10 days(detailly depend on the order quantity)
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
Tel :+86 15039132763
