• Model NO.：CU,XLPE,LSZH,AWA,LSZH
• Material Shape：Round Wire
• Range of Application：Power Construction
• Certification：ISO9001, CE, CCC, BS 6724
• Brand：Boan
• Rated Voltage：0.6,1kv
• Sheath Color：Black
• Standard：BS 6724
• Insulation：XLPE Type Gp8
• Bedding：LSZH Type Lts1
• Sheath：LSZH Type Lts1
• Armour：Aluminum Wire Awa
• Cores：Single Core
• Transport Package：Fumigated Steel-Wooden Drum
• Origin：China Mainland
• HS Code：8544492100
• Production Capacity：38000km,Year

Basic Info.

Model NO. CU/XLPE/LSZH/AWA/LSZH Material Shape Round Wire Range of Application Power Construction Certification ISO9001, CE, CCC, BS 6724 Brand Boan Rated Voltage 0.6/1kv Sheath Color Black Standard BS 6724 Insulation XLPE Type Gp8 Bedding LSZH Type Lts1 Sheath LSZH Type Lts1 Armour Aluminum Wire Awa Cores Single Core Transport Package Fumigated Steel-Wooden Drum Origin China Mainland HS Code 8544492100 Production Capacity 38000km/Year

Product Description

Product Description
Single core LSZH cable with aluminium wire armour (AWA).Power and auxiliary control cables for use in power networks,
underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and
toxic fumes create a potential threat to life and equipment.
Technical Data

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL THICKNESS OF INSULATION mm	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km	MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
1	50	1	17.5	800	0.387
1	70	1.1	20.2	960	0.268
1	95	1.1	22.3	1240	0.193
1	120	1.2	24.2	1510	0.153
1	150	1.4	27.4	1900	0.124
1	185	1.6	30	2320	0.0991
1	240	1.7	32.8	2930	0.0754
1	300	1.8	35.6	3580	0.0601
1	400	2	40.5	4520	0.047
1	500	2.2	44.2	5770	-
1	630	2.4	48.8	7250	0.0283
1	800	2.6	55.4	9381	0.0221
1	1000	2.8	60.6	11540	0.0176

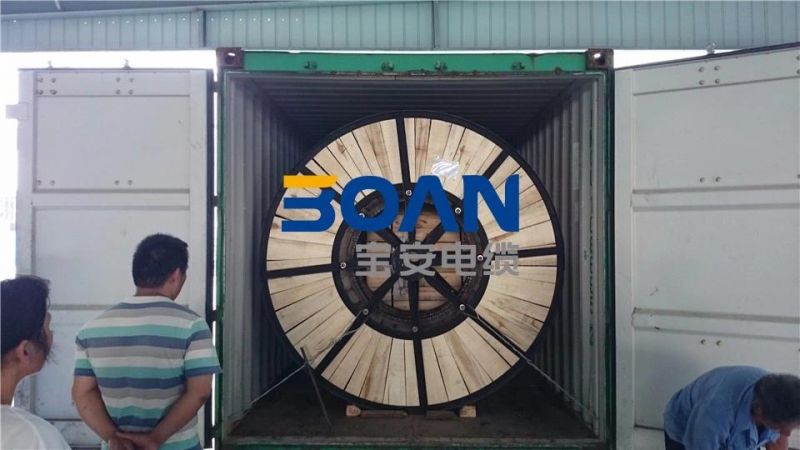

Packaging
Fumigated steel-wooden drum/ wooden drum

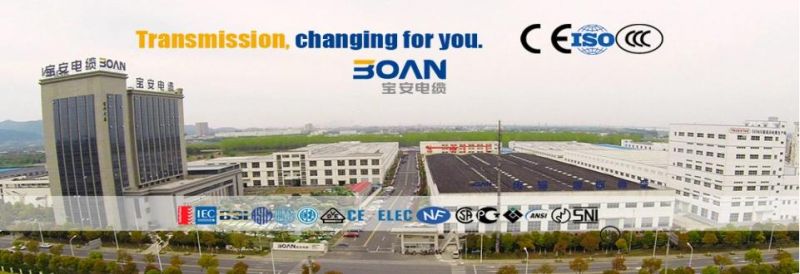

Company Information
Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.
