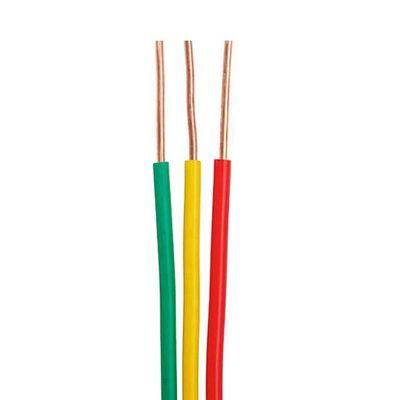

PTFE Insulated High Temperature Electrical Cable UL1213

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Insulation Material：PTFE
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant

Base Info

  • Model NO.：UL1213
  • Certification：ISO9001, UL, RoHS
  • Rated Temperature：80 ºC
  • Rated Voltage：12-14V
  • According to：UL Subject758, UL1581, C22.2
  • Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
  • Performance：for General Purpose Internal Wiring of Appliance
  • Conductor：Stranded, Tinned or Bare Copper Conductor
  • Capacity：300, 000km Annual
  • Color：Could Be Customized Color
  • Delivery Time：7-15days
  • Package：Coil or Spool Packing
  • Transport Package：610feet in Roll
  • Specification：2pin 20 AWG 2 Conductors
  • Trademark：B&T
  • Origin：Xiamen, Fujian
  • HS Code：8544492100
  • Production Capacity：300, 000km

Description

Rated Temperature105ºCInsulatedPTFE insulationStandardOverall Diameter
(mm)Nom.Min.NomTolerance1237/0.3745.642.62 0.250.183.12±0.151419/0.3618.961.85 0.250.182.35±0.151619/0.28714.61.45 0.250.181.95±0.10181/1.0223.21.02 0.250.181.52±0.101819/0.23523.21.18 0.250.181.68±0.102019/0.1936.70.95 0.250.181.45±0.10207/0.3236.70.98 0.250.181.48±0.102219/0.1559.40.76 0.250.181.26±0.10227/0.25459.40.76 0.250.181.26±0.10221/0.6559.40.65 0.250.181.15±0.102419/0.1294.20.61 0.250.181.10 ±0.10267/0.161500.49 0.250.180.99±0.10287/0.1272390.39 0.250.180.89±0.10301/0.2543610.25 0.250.180.75±0.10
PTFE Insulated High Temperature Electrical Cable UL1213PTFE Insulated High Temperature Electrical Cable UL1213
