• Certification：RoHS, UL, CE, ISO9001, CCC
• Brand：Hongan
• Sheath Material：LSZH
• Color：Request
• Strength Member：Metal
• Feature：Non Self-Supporting
• Fiber Count：1,2,4
• Fiber Type：G657A,G652D,G655c
• Transport Package：Wooden Drum
• Specification：2.0*3.0mm
• Trademark：Hongan or customized
• Origin：China
• HS Code：8544700000
• Production Capacity：20000000m,Month

TypeFiber countSize (mm)Nominal weight (kg/km)Permitted tensile  Long term/ Short term (N)Permitted crush  Long term/ Short term (N)Bend radius Static state/ Dynamic state (mm)GJXJH12.0x3.09.9100/2001000/220015D/30DGJXFJH12.0x3.07.9100/2001000/220015D/30D
Description

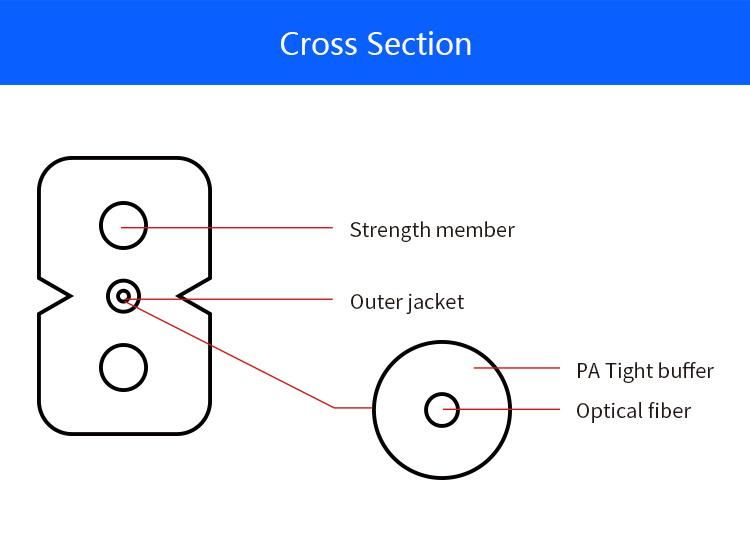

FTTH drop cable with easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.

Characteristics:
• Choice of fibre types
• Single mode optical fibre meting ITU-T G.657A1 or ITU-T G.657A2
• Individually coloured optical fibres
• Notched 2 x 3 mm construction for easy stripping
• White LSZH jacket for internal use
• Black LSZH jacket for short distance external use

Applications:
Intelligent building,
Digital community,
Campus network,
LAN

Detailed Image

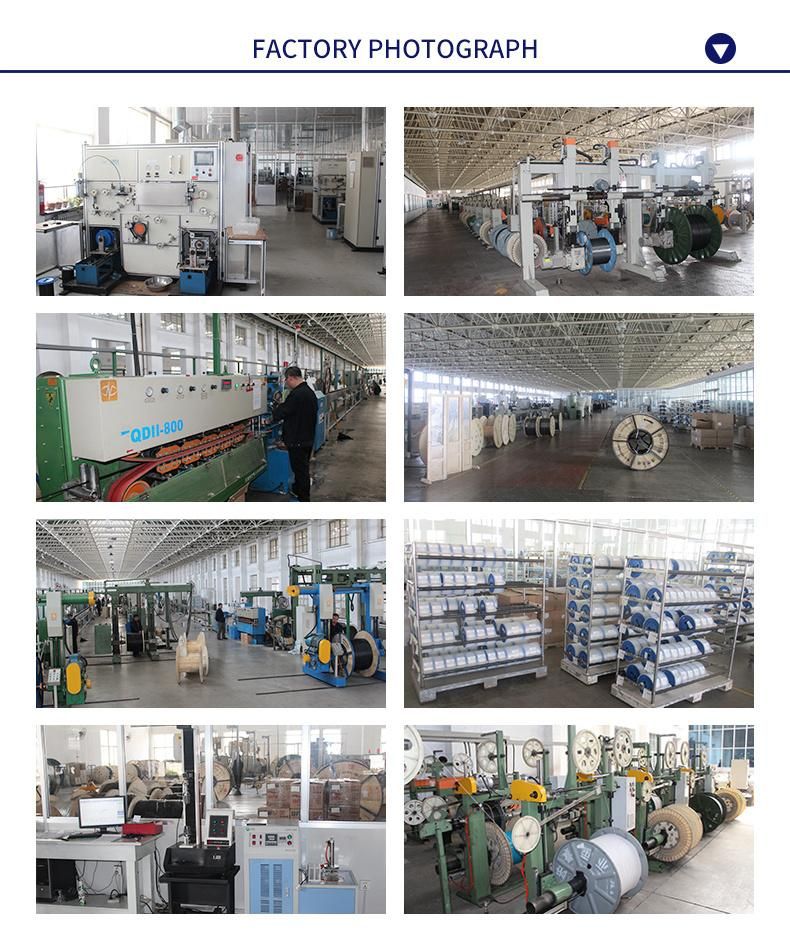

Production Line

Yearly productive capacity
fiber 4 million fkm
fiber cable  1.2 million core km
data cable 96000 cases
municipal telephone cable 6 couple million 6 couple km

Annual export volume
200,000 km

Certification

Company Infromation



Hongan Group Co., Ltd, which locates at Wendeng District, Weihai City , Shandong Province of China, was eatablished in 1985.It has 1500 empolyees and total assets is over 1.5 billion RMB. It covers an area of 2 million square meters,construction area is 0.6 million square meters, main products form a big whole industry chain, and can be devided into 9 categories:
1.optical fiber
2.indoor & outdoor optical fiber cable (armored & nonarmored cable , drop cable etc)
3.CAT5 CAT5E CAT6 CAT7 network lan cable (both UTP and FTP)
4.municipal telephone cable (HYA,HYAC,HYAT,HYV etc)
5.patchcord, fiber jumper
6.fiber pigtail
7.EPON,GPON , data center solutions and equipments
8.FTTH products
9.OEM products, customized new cable

Main product type

Outdoor layer stranded optical cable :GYTA,GYTS,GYTA53,GYTY,GYTY53,GYTZA,GYTZS,GYTZA53,GYTC8S,GYTA5333
outdoor central tube optical cable :GYXTW,GYXTW53,GYXTS
ribbon cable:GYDTA,GYDTS,GYDXTW
drop cable:GJFJV,GJFJH,GJXH,GJXV,GJXFH,GJXFV,GJYXCH,GJYXFCH
indoor optical cable:GJFJBV,GJPFJH,GJPFJV,GJBFJV,GJBFJV
Data cable:indoor & outdoor CAT5E,indoor & outdoor CAT6,HSYV3  25 &50&100 pairs,HSYV5  25 &50&100 pairs
municipal telephone cable :HYA,HYA53,HYAT,HYAC,HYAT53
optic-electric composite cable : GDTA, GDTS
distribution cabling system: RJ-45 panel,network module,110 patch panel,CAT5E 24 ports patch panel,CAT6 24 ports patch panel,patch cord & pigtail, fiber optic coupler, optical distribution frame,fiber optic cable connector box, optical fiber termination box ,OLT,ONU,PLC splitter, FTTH splitters distribution box,optical cable cross connecting cabinet,, fiber closure,PCI-E server adaptor, etc



Hongan practices the scientific outlook on development, and insists the philosophy of specialization and high-tech in operation and development.It owned excellent performance and honors :
China's TOP 10 cable enterprise
China's TOP 100 Electrical Machinery and Equipment Manufacturing Enterprises
China's Electrical Information BEST 100 enterprises
National Torch Plan high-tech enterprises
Shandong TOP 10 high-tech enterprises
Shandong BEST 100 industrial enterprises
China's AAA Level credit enterprise
Shandong provincial famous trademark
