UL2464 PVC Insulation Multi Conductor Shielded PVC Signal Cable Control Cable

B&T (Zhangzhou) Cable Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Hook-up Wire
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：UL2464
  • Wire Core Material：Copper
  • Certification：CE, ISO, RoHS, UL, VDE, Reach
  • Model：UL2464
  • Brand：Bort
  • Temperature Range：-40c ~ 80c
  • Jacket：PVC
  • Rated Voltage：300V
  • Transport Package：Coil
  • Trademark：BORT
  • Origin：China
  • HS Code：8544492900
  • Production Capacity：300000km,Per Year

Description

Basic Info.

Model NO. UL2464 Wire Core Material Copper Certification CE, ISO, RoHS, UL, VDE, Reach Model UL2464 Brand Bort Temperature Range -40c ~ 80c Jacket PVC Rated Voltage 300V Transport Package Coil Trademark BORT Origin China HS Code 8544492900 Production Capacity 300000km/Per Year

Product Description

UL2464 PVC Insulation Multi Conductor Shielded PVC Signal Cable Control Cable

UL2464 Multi-Conductor Shielded PVC Signal Cable and Control Cable

UL2464 PVC Insulation Multi Conductor Shielded PVC Signal Cable Control Cable

★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

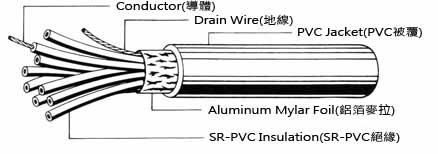

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure  easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer

AWG/NO.OFCONDNo./mmmmm/n/dmmmm
24×2C11/0.160.2516/4/0.100.804.35
24×3C11/0.160.2516/4/0.100.804.50
24×4C11/0.160.2516/5/0.100.804.80
24×5C11/0.160.2516/6/0.100.805.10
24×6C11/0.160.2516/6/0.100.805.45
24×7C11/0.160.2516/6/0.100.805.50
22×2C17/0.160.2516/5/0.100.804.75
22×3C17/0.160.2516/6/0.100.804.95
22×4C17/0.160.2516/6/0.100.805.30
22×5C17/0.160.2516/7/0.100.805.65
22×6C17/0.160.2516/8/0.100.806.05
22×7C17/0.160.2516/8/0.100.806.10
