Bare AAAC All Aluminum Alloy Conductor
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：AAAC
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001,ISO14001, CCC, Ce
- Brand：Gdyg
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
D.C. resistanceWire Conductor mm2 mm mm kg/km kN Ohm/km 16 18.6 7 1.84 5.52 50.8 6.04 1.7896 25 29.0 7 2.30 6.90 79.5 9.44 1.1453 40 46.5 7 2.91 8.72 127.1 15.10 0.7158 63 73.2 7 3.65 10.9 200.2 23.06 0.4545 100 116 19 2.79 14.0 319.3 37.76 0.2877 125 145 19 3.12 15.6 399.2 47.20 0.2302 160 186 19 3.53 17.6 511 58.56 0.1798 200 232 19 3.95 19.7 638.7 73.20 0.1439 250 290 19 4.41 22.1 798.4 91.50 0.1151 315 366 37 3.55 24.8 1008.4 115.29 0.0916 400 465 37 4.00 28.0 1280.5 146.40 0.0721 450 523 37 4.24 29.7 1440.5 164.70 0.0641 500 581 37 4.47 31.3 1600.6 183.00 0.0577 560 651 61 3.69 33.2 1795.3 204.96 0.0516 630 732 61 3.91 35.2 2019.8 230.58 0.0458 710 825 61 4.15 37.3 2276.2 259.86 0.0407 800 930 61 4.40 39.6 2564.8 292.80 0.0361 900 1046 91 3.83 42.1 2888.3 329.40 0.0321 1000 1162 91 4.03 44.4 3209.3 366.00 0.0289 1120 1301 91 4.27 46.9 3594.4 409.92 0.0258
Application:
For high voltage transmission lines, higher urban, high-rise buildings and forest and other safety requirements occasions.
Product Features:
1,Simple structure, easy erection maintenance, low cost and large transmission capacity.
2,Through the application together with the tower erected manner, saving erection.
3,Conducive to cross rivers and valleys and other special geographical conditions laid.
4,Having good conductivity and sufficient mechanical tensile strength, tower and pole distance can be enlarged.
Our company:
Workshop:

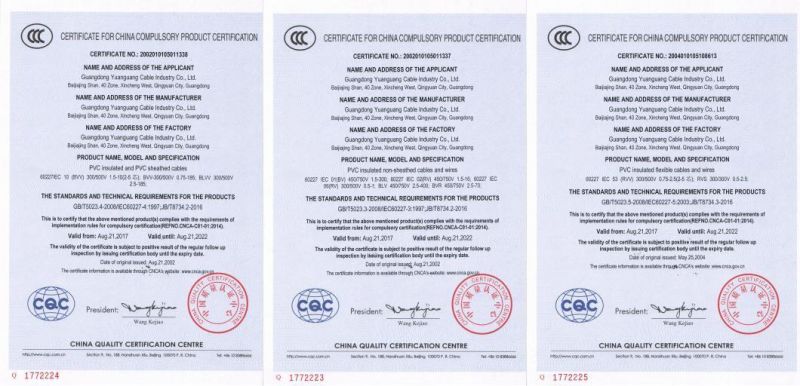

Certificates:
