• Model NO.：H05V-U , H07V-U Cable
• Material Shape：Round Wire
• Range of Application：in Dry Rooms, Instruments, Switches and Distributi
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Central Conductor：Fine Solid Copper
• Insulation：Polyvinyl Chloride (PVC)
• Transport Package：a: Roll of 100 M B: Reel of 1500 M.
• Specification：0.5mm2 to 10mm2
• Trademark：Hongda or as customer require
• Origin：China
• HS Code：8544492900
• Production Capacity：40km,Day

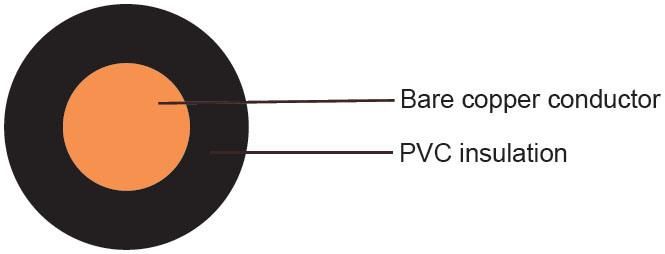

Solid bare copper single wire
Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1
Special PVC TI1 core insulation
H05V-U (20, 18 & 17 AWG)
H07V-U (16 AWG and Larger)

(607) 060.516 x 0.200.62.1 - 2.590.7524 x 0.200.62.2 - 2.711132 x 0.200.62.4 - 2.814(607) 021.530 x 0.250.72.8 - 3.4202.550 x 0.250.83.4 - 4.132456 x 0.300.83.9 - 4.848684 x 0.300.84.4 - 5.3671080 x 0.401.05.7 - 6.811316126 x 0.401.06.7 - 8.116925196 x 0.400.88.4 - 10.226035276 x 0.401.29.7 - 11.735650396 x 0.401.211.5 - 13.950970356 x 0.501.413.2 - 1669895475 x 0.501.415.1 - 18.2930120608 x 0.501.616.7 - 20.21174150756 x 0.501.618.6 - 22.51461185925 x 0.502.020.6 - 24.917892401221 x 0.502.223.5 - 28.52351Tolerance of pulley is ±5%

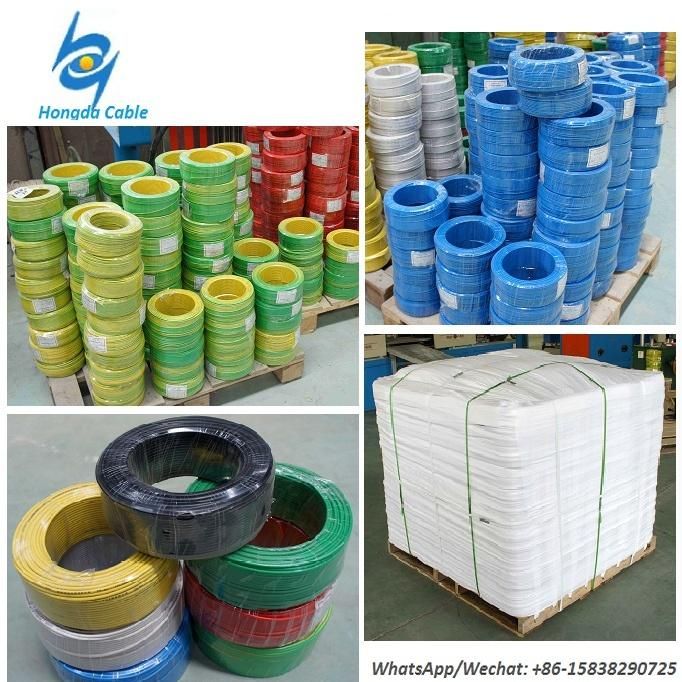

PVC H05V-U / H07V-U Nya Cable PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

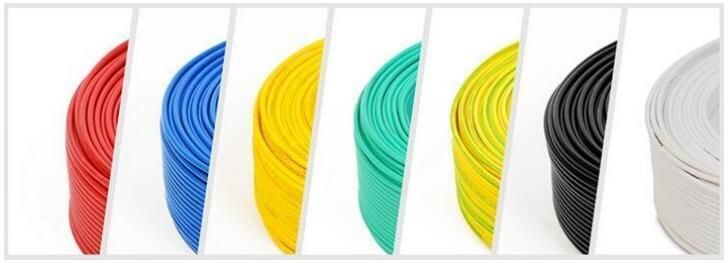

PVC H05V-U / H07V-U Nya Cable AVAILABLE COLORS:
Cables (Sizes 0.5mm2 to 6mm2): Black, White, Sky Blue, Blue, Red, Purple, Yellow and Green.
Cables (Sizes 10mm2 to 25mm2): Black, White, Blue and Red.
Cables (Sizes 25mm2 to 240mm2): Black. HIGHER SIZES (FROM 750 MCM TO 1.000 MCM), UNDER REQUIREMENT.


Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
