• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, UL
• Model：YJV
• Brand：Yifang
• Transport Package：Wooden Drum
• Origin：China
• Production Capacity：200km,Month

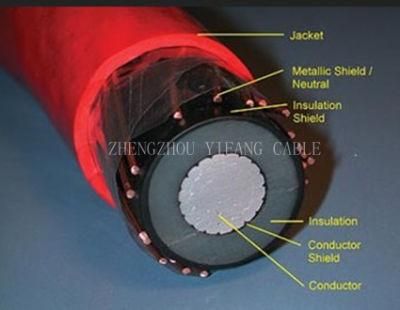

NUMBER OF CORESingle coreCONDUCTOR

• Compact stranded hard drawn Aluminum wire
• Conductor sizes 35 mm2 up to 240 mm2

CONDUCTOR SHIELDSemi conducting cross-linked polyethyleneINSULATION

• Cross-linked polyethylene
• Colour : Natural

SHEATH

• Track resistant cross-linked polyethylene
• Colour : Black

CLASSIFICATION

• Normal operation 90 °C
• Emergency overload conditions 130 °C
• Short circuit conditions 250°C
• Voltage rating 25 Kv.( Phase to Phase )

TESTING VOLTAGE49KV for 5 minutesREFERENCEICEA S-66-524 /MEA/PEA



Nominal Sectional Area
mm2Minimum Number of wire
NODiameter of Conductor (approx.)
mmThickness of Insulation
mmThickness of sheath
mmOverall Diameter (approx.)
mmMaximum DC. conductor resistance at 20°C
Ω / km

Minimum insulation

 resistance at 15.6°C
MΩ-km

Allowable ampacities in free air at 40°C ambient
ACable weight (approx.)
kg / km2565.904.453.1822.51.20003,1531183933566.954.453.1824.50.86802,8901484435068.334.453.1825.50.64102,60618451770129.734.453.1827.50.44302,375227599951511.454.453.1829.00.32002,1442767111201512.954.453.1831.00.25301,9523188311501514.274.453.1832.50.20601,8303679331853015.984.453.1833.50.16401,6944251,0732403018.474.453.1836.50.12501,5295151,293
