PVC Self-Extinguishing and Flame Retardant 3X2.5mm, 3X1.5mm H05VV-F Flexible Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station, Power and Control Cable
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：H05VV-F cable
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, SGS
  • Model：Cyky Cable
  • Brand：Hongda
  • Rated Voltage：450,750V
  • Transport Package：500m Per Drum, 1000m Per Drum
  • Specification：1.5sqmm to 400sqmm
  • Trademark：Hongda
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1200km,Month

Description

  • Green-yellow earth core (3 cores and more)
 Characteristic: Colour of sheath:black, UV resistantCore identification:2-core:
3-core: green-yellow, blue, brown
4-core: green-yellow, brown, black, grey
5-core: green-yellow, blue, brown, black, grey
7 and more: green-yellow, other cores black
with white numberingMaximum conductor operating temperature:+70°CWorking temperature:-15°C to + 70°CLowest installation temperature:-5°CMaximum short-circuit conductor temperature:+160°CMinimum bending radius:10 x D, D - overall diameterDielectric test voltage 50Hz:2,5kV
Assembly:
Single conductor of stranded or solid annealed copper, PVC Insulation and PVC Jacket, several colors are available, surface printed.

H05VV-F Flexible Cable Specification:
Product:Number of cores
x core cross section
[mm2]		Color:Approx. outer Ø [mm]:Copper weight
[kg/km]		Weight [kg/km]
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F
H05VV-F		2 x 0,75
3 x 0.75
4 x 0.75
5 x 0.75
2 x 1
3 x 1
2 x 1.5
3 x 1.5
4 x 1.5
5 x 1.5
3 x 2.5
4 x 2.5
5 x 2.5		white
white
white
white
white
white
white
white
white
white
white
white
white		6,4
6,8
7,4
8,3
6,8
7,2
7,6
8,2
9,2
9,3
10,1
11,2
12,4		14,4
21,6
28,8
36,0
19,2
29,0
29,0
43,0
58,0
72,0
72,0
93,0
120,0		50
60
73
88
57
73
82
95
117
144
152
192
243

PVC Self-Extinguishing and Flame Retardant 3X2.5mm, 3X1.5mm H05VV-F Flexible Cable

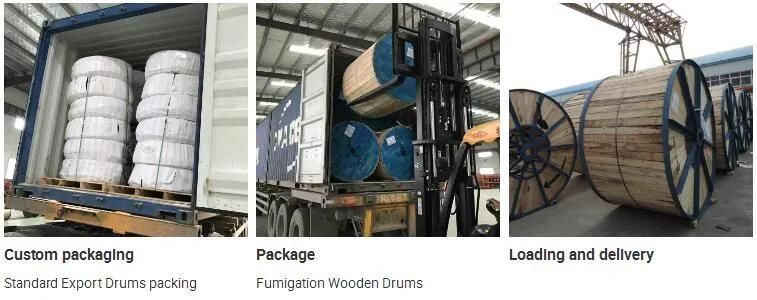

H05VV-F Flexible Cable PACKAGE:

A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

PVC Self-Extinguishing and Flame Retardant 3X2.5mm, 3X1.5mm H05VV-F Flexible Cable

Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10. We have a good reputation in the overseas
