• Model NO.：Gammarus
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：ABC Cable
• Brand：OEM
• Product Name：Al Conductor XLPE Insulated 5 Core 16mm Aluminum a
• Transport Package：Wooden Drum
• Specification：5 Core 16mm
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

TypeApplicationDuplex Service DropTo supply120volt aerial service for temporary service at construction sites,outdoor or street lighting .For service at 600 volts or lower at a conductor temperature of 75°C maximum.Triplex Service DropTo supply power from the utility's lines to the consumer's weatherhead.For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximumfor polyethylene insulation 90°C maximum for crosslinked insulation.Quadruplex Service DropUsed to supply 3 phase power, usually from a polemounted transformer, to the user'sservice head where connection to the service entrance cable is made. To be used at voltages of 600volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethyleneinsulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.

PHASE CONDUCTORH68 condition aluminium conductor, round stranded compressed. NEUTRAL OR MESSENGER CONDUCTORAlloy aluminium conductor, round stranded compressed. STREET LIGHTING CONDUCTORH68 condition aluminium conductor, round stranded compressed. INSULATIONXLPEASSEMBLYThe cable consists of insulated phase and street lighting aluminium conductors, shall be held firmly onto the insulated neutral messenger aluminium alloy conductor in a right hand (Z) lay.

roduction Name

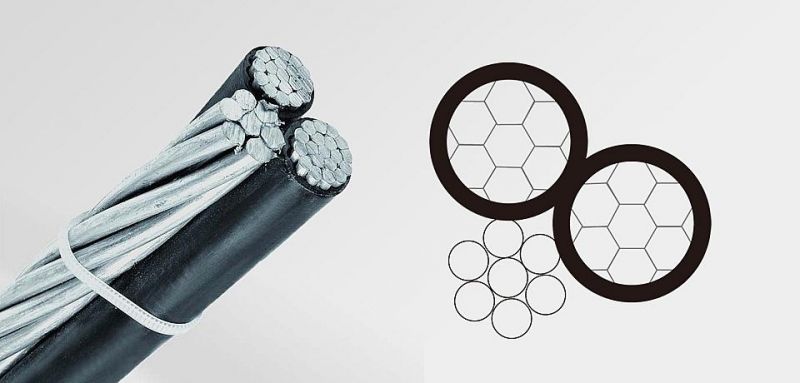

ICEA Standard Triplex AAC 1/0AWG Gammarus XLPE insulation AAAC 123.3Kcm neutral conductor 0.6/1KV ABC

Standard

IEC,ASTM,BS,DIN,CSA,JIS,NF,KS, ANSI/ICEA S-76-474 etc.

Brand

SITONG

Used

Overhead

Rated Voltage

600v/1000v

Code Word

  Gammarus

AWG or Kcmil

2*1/0 AWG+1*123.3

Bare Neutral Message

AAAC

Number of Aluminum Wire

7

Diameter of Aluminum Wire

3.37 mm

Rated Strength Ibs.

4460

Phase Conductor

AAC

Number of Wires

7

Diameter of Wire

3.12 mm

 Thickness of Insulation  1.52 mm

Weight

569 kg/km

Allowable Ampacities(XLPE)



 205 A

Allowable Ampacities(PE)

160 A



Packing shipping
