• Model NO.：RS-485 Cable
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Transport Package：Wooden Drum
• Specification：1.5mm to 10mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：50 Kilometer,Month

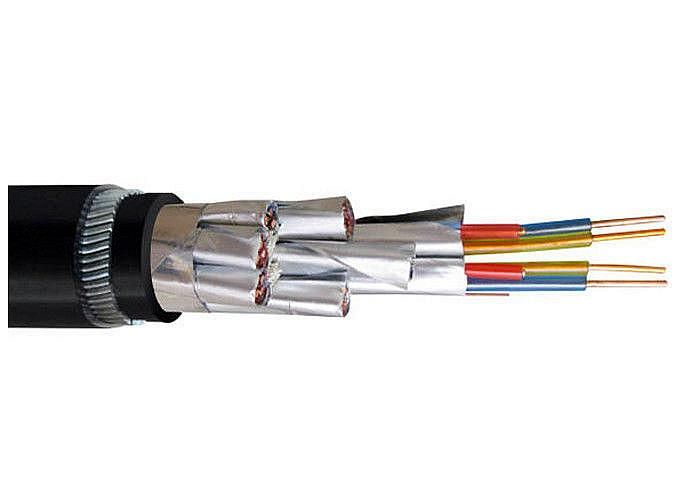

CONDUCTORAnnealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360INSULATIONPE (Polyethylene) type 03 to BS6234PAIRINGTwo insulated conductors uniformly twisted together with a lay not exceeding 100mmCOLOUR CODESee technical informationINDIVIDUAL SCREENAluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm²BINDER TAPEPETP transparent tapeCOLLECTIVE SCREENAluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²OUTER SHEATHPVC Sheath, type TM 1 or type 6 to BS 6746SHEATH COLOURBlack or blue

Mechanical and Electrical Properties

Operating temperature: -40˚C up to + 70˚C( fixed installation) 0˚C to +50˚C(during operation )
Minimum bending radius: 5 x overall diameter

NO.OF PAIRSNO.AND DIA. OF WIRESNOMINAL CONDUCTOR CROSS-SECTIONAL AREANOMINAL THICKNESS OF INSULATIONNOMINAL THICKNESS OF SHEATHNOMINAL DIA. OF CABLEAPPROX.WEIGHT NO./MMMM2MMMMMMKG/KM1516/0.20.50.61.522.65702016/0.20.50.61.525.77803016/0.20.50.61.73110205016/0.20.50.62.239.9168021/1.1310.61.111.920051/1.1310.61.215.4290101/1.1310.61.320.5580151/1.1310.61.524.1780201/1.1310.61.727.71010301/1.1310.6233.71430501/1.1310.62.242.5236027/0.531.50.61.213.625057/0.531.50.61.317.7460107/0.531.50.61.523.9760157/0.531.50.61.7281020207/0.531.50.6231.71350307/0.531.50.62.238.61900507/0.531.50.62.248.93060



Packing shipping
