10kv Cu/XLPE/PVC XLPE Insulated Screened Non-Armored 3 Core Electrical Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：CU,XLPE,PVC
- Wire Core Material：Bare Copper Wire
- Certification：ISO
- Model：Cu,XLPE,PVC
- Brand：Hongda
- Transport Package：Steel & Wooden Drum
- Specification：0~630sqmm
- Trademark：Hongda
- Origin：China
- HS Code：8544601200
- Production Capacity：500km,Month
Description
Basic Info.
Model NO. CU/XLPE/PVC Wire Core Material Bare Copper Wire Certification ISO Model Cu/XLPE/PVC Brand Hongda Transport Package Steel & Wooden Drum Specification 0~630sqmm Trademark Hongda Origin China HS Code 8544601200 Production Capacity 500km/MonthProduct Description
10kV CU/XLPE/PVC XLPE Insulated Screened Non-armored 3 Core Electrical CableAPPLICATION
XLPE insulated 3 core cable functions well for electricity transmission and distribution lines for its excellent electrical and physical properties, including the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.
STANDARD
| IEC60502,IEC 60228,IEC60332, BS 5467, BS 6622, IS 1554, IS 7098 and ICEA S-66-524 etc. |
| Hongda Cable can also design and produce for special application requirement. |
PRODUCT RANGE
Rated voltage: 6/10kV
No. of Cores: single core
The ambient temperature for installation: ≥0ºC
Max. conductor temperature in normal operation: 90ºC
Max. operating temperature of conductor when cable short-circuited (5s maximum duration): 250ºC
CONSTRUCTION
| Conductor: Plain annealed stranded copper conductor wires to IEC60228 class 2 |
| Conductor Screen: Extruded semi-conductive compound |
| Insulation: XLPE (cross-linked polyethylene) |
| Insulation Screen: Extruded semi-conductive compound |
| Metallic Screen: Copper tape |
| Outer Sheath: PVC (type ST2) to IEC 60502 |
Main Technical Parameters
Non-armored 6/10kV Al/XLPE/CTS/PVC 3 Core Cable
| Cross Section | Conductor | Conductor Dia. | Insualation | Insulation Screen | Screen | Sheath | Overall Dia. | Weight for Aluminum Cable |
| mm2 | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 25 | 6.0 | 0.8 | 3.4 | 0.8 | 0.1 | 2.3 | 40.0 | 1522 |
| 35 | 7.0 | 0.8 | 3.4 | 0.8 | 0.1 | 2.3 | 42.3 | 1727 |
| 50 | 8.4 | 0.8 | 3.4 | 0.8 | 0.1 | 2.4 | 45.5 | 2019 |
| 70 | 10.0 | 0.8 | 3.4 | 0.8 | 0.1 | 2.5 | 49.2 | 2385 |
| 95 | 11.5 | 0.8 | 3.4 | 0.8 | 0.1 | 2.7 | 52.7 | 2794 |
| 120 | 13.0 | 0.8 | 3.4 | 0.8 | 0.1 | 2.7 | 56.0 | 3196 |
| 150 | 14.5 | 0.8 | 3.4 | 0.8 | 0.1 | 2.9 | 59.5 | 3665 |
| 185 | 16.2 | 0.8 | 3.4 | 0.8 | 0.1 | 3.0 | 63.4 | 4204 |
| 240 | 18.4 | 0.8 | 3.4 | 0.8 | 0.1 | 3.2 | 68.5 | 4982 |
| 300 | 20.5 | 0.8 | 3.4 | 0.8 | 0.1 | 3.3 | 73.3 | 5816 |
| 400 | 23.5 | 0.8 | 3.4 | 0.8 | 0.1 | 3.5 | 80.3 | 7088 |
| 500 | 26.5 | 0.8 | 3.4 | 0.8 | 0.1 | 3.7 | 87.1 | 8471 |

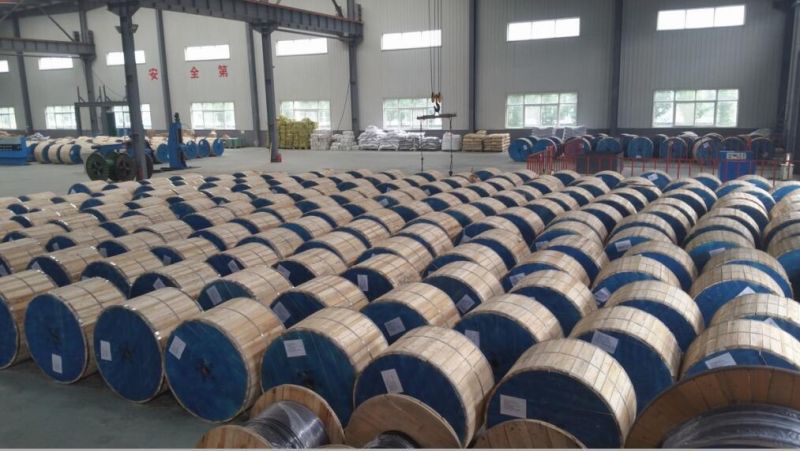

Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges
FAQ
1. Q: Are you the factory or the trading company?
A: We are the factory.
2. Q: How long is your guarantee Period?
A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
A: We can make the sample order. And usually you will charge for it.
But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.
Factory
Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Our Service
1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
