- Model NO.:telephone Cable 0.5mm
- Material Shape:Round Wire
- Range of Application:Flame Retardant
- Certification:ISO9001, CE, CCC
- Brand:Hongda
- Transport Package:Plastic Film & Pallets
- Specification:2~61 cores, 0.5~4sqmm
- Trademark:Hongda
- Origin:China
- HS Code:8544492100
- Production Capacity:3000km,Month
AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm | Nominal Copper Weight kg/Km | Nominal Weightkg/Km |
20(16/32) | 2x0.50 | 0.6 | 0.7 | 5.6 | 9.7 | 46 |
18(24/32) | 2x0.75 | 0.6 | 0.8 | 6.2 | 14.4 | 52 |
17(32/32) | 2x1 | 0.6 | 0.8 | 6.6 | 19.2 | 66 |
16(30/30) | 2x1.5 | 0.7 | 0.8 | 7.6 | 29 | 77 |
14(30/50) | 2x2.5 | 0.8 | 0.9 | 9.2 | 48 | 110 |
20(16/32) | 3x0.50 | 0.6 | 0.7 | 5.9 | 14.4 | 54 |
18(24/32) | 3x0.75 | 0.6 | 0.8 | 6.6 | 21.6 | 68 |
17(32/32) | 3x1 | 0.6 | 0.8 | 7 | 29 | 78 |
16(30/30) | 3x1.5 | 0.7 | 0.9 | 8.2 | 43 | 97 |
14(30/50) | 3x2.5 | 0.8 | 1 | 10 | 72 | 154 |
20(16/32) | 4x0.50 | 0.6 | 0.8 | 6.6 | 19 | 65 |
18(24/32) | 4x0.75 | 0.6 | 0.8 | 7.2 | 28.8 | 82 |
17(32/32) | 4x1 | 0.6 | 0.8 | 7.8 | 38.4 | 104 |
16(30/30) | 4x1.5 | 0.7 | 0.9 | 9.3 | 58 | 128 |
14(30/50) | 4x2.5 | 0.8 | 1.1 | 10.9 | 96 | 212 |
20(16/32) | 5x0.50 | 0.6 | 0.8 | 7.3 | 24 | 80 |
18(24/32) | 5x0.75 | 0.6 | 0.9 | 8 | 36 | 107 |
17(32/32) | 5x1 | 0.6 | 0.9 | 8.6 | 48 | 123 |
16(30/30) | 5x1.5 | 0.7 | 1 | 10.3 | 72 | 149 |
14(30/50) | 5x2.5 | 0.8 | 1.1 | 12.1 | 120 | 242 |
20(16/32) | 6x0.50 | 0.6 | 0.9 | 8.1 | 28.8 | 104 |
18(24/32) | 6x0.75 | 0.6 | 0.9 | 8.7 | 43.2 | 132 |
17(32/32) | 6x1 | 0.6 | 1 | 9.5 | 58 | 152 |
16(30/30) | 6x1.5 | 0.7 | 1.1 | 11.2 | 86 | 196 |
14(30/50) | 6x2.5 | 0.8 | 1.2 | 13.2 | | |
20(16/32) | 7x0.50 | 0.6 | 0.9 | 8.1 | 33.6 | 119 |
18(24/32) | 7x0.75 | 0.6 | 1 | 8.9 | 50.5 | 145 |
17(32/32) | 7x1 | 0.6 | 1 | 9.5 | 67 | 183 |
16(30/30) | 7x1.5 | 0.7 | 1.2 | 11.4 | 101 | 216 |
14(30/50) | 7x2.5 | 1.3 | 0.8 | 13.4 | 168 | 350 |
20(16/32) | 12x0.50 | 0.6 | 1.1 | 10.9 | 58 | 186 |
18(24/32) | 12x0.75 | 0.6 | 1.1 | 11.7 | 86 | 231 |
17(32/32) | 12x1 | 0.6 | 1.2 | 12.8 | 115 | 269 |
16(30/30) | 12x1.5 | 0.7 | 1.3 | 15 | 173 | 324 |
14(30/50) | 12x2.5 | 1.5 | 0.8 | 17.9 | 288 | 543 |
20(16/32) | 18x0.50 | 0.6 | 1.2 | 12.9 | 86 | 251 |
18(24/32) | 18x0.75 | 0.6 | 1.3 | 14.1 | 130 | 313 |
17(32/32) | 18x1 | 0.6 | 1.3 | 15.1 | 173 | 400 |
16(30/30) | 18x1.5 | 0.7 | 1.5 | 18 | 259 | 485 |
14(30/50) | 18x2.5 | 1.8 | 0.8 | 21.6 | 432 | 787 |
20(16/32) | 25x0.50 | 0.6 | 1.4 | 15.4 | 120 | 349 |
18(24/32) | 25x0.75 | 0.6 | 1.5 | 16.8 | 180 | 461 |
17(32/32) | 25x1 | 0.6 | 1.5 | 18 | 240 | 546 |
16(30/30) | 25x1.5 | 0.7 | 1.8 | 21.6 | 360 | 671 |
14(30/50) | 25x2.5 | 0.8 | 2.1 | 25.8 | 600 | 1175 |
20(16/32) | 36x0.50 | 0.6 | 1.5 | 17.7 | 172 | 510 |
18(24/32) | 36x0.75 | 0.6 | 1.6 | 19.3 | 259 | 646 |
17(32/32) | 36x1 | 0.6 | 1.7 | 20.9 | 346 | 775 |
16(30/30) | 36x1.5 | 0.7 | 2 | 25 | 518 | 905 |
14(30/50) | 36x2.5 | 0.8 | 2.3 | 29.8 | 864 | 1791 |
20(16/32) | 50x0.50 | 0.6 | 1.7 | 21.5 | 240 | 658 |
18(24/32) | 50x0.75 | 0.6 | 1.8 | 23.2 | 360 | 896 |
17(32/32) | 50x1 | 0.6 | 1.9 | 24.5 | 480 | 1052 |
16(30/30) | 50x1.5 | 0.7 | 2 | 28.9 | 720 | 1381 |
14(30/50) | 50x2.5 | 0.8 | 2.3 | 35 | 600 | 1175 |
20(16/32) | 61x0.50 | 0.6 | 1.8 | 23.1 | 293 | 780 |
18(24/32) | 61x0.75 | 0.6 | 2 | 25.8 | 439 | 1030 |
17(32/32) | 61x1 | 0.6 | 2.1 | 26 | 586 | 1265 |
16(30/30) | 61x1.5 | 0.7 | 2.4 | 30.8 | 878 | 1640 |
14(30/50) | 61x2.5 | 0.8 | 2.4 | 37.1 | 1464 | 2724 |

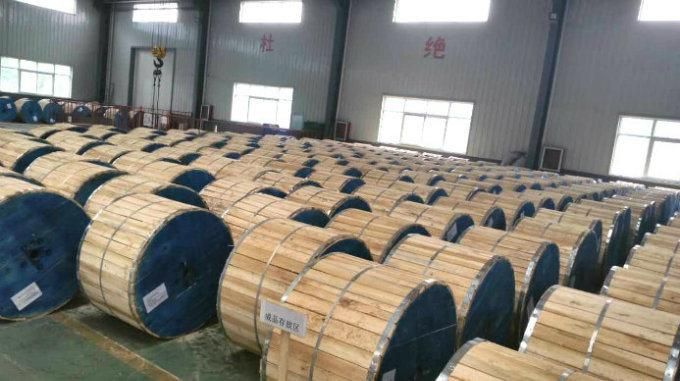

Packing:

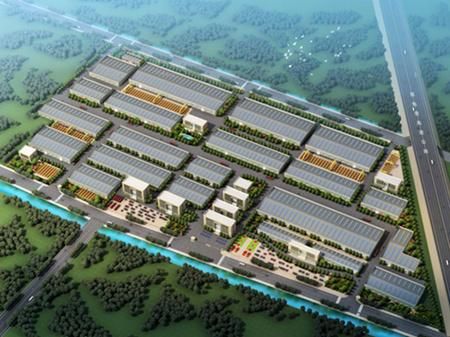

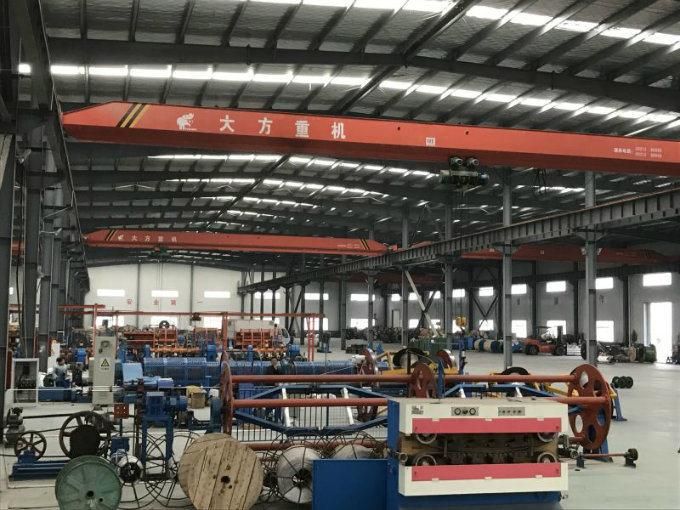

Factory information:
More information and other cable inquiry, pls contact us as follows:
HENEN HONGDA CABLE CO., LTD.
Office: 21/F, Yaxing Times Square, Songshan Road, Erqi Zone, Zhengzhou 450000, China
Factory: Huijin Rd & Changping Rd, East Development Zone, Zhandian, Jiaozuo 454950, China.
