BS6622 6.35/11kv XLPE Awa/Swa PVC Armoured Underground Power Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：XLPE
Base Info
- Model NO.：bs6622 XLPE AWA,SWA CABLE
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CCC
- Brand：OEM
- Transport Package：Wooden Drum
- Specification：2.5~400sqmm
- Trademark：OEM
- Origin：China(Mainland)
- HS Code：8544492100
- Production Capacity：50 Kilometer,Month
Description
Basic Info.
Model NO. bs6622 XLPE AWA/SWA CABLE Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC Brand OEM Transport Package Wooden Drum Specification 2.5~400sqmm Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 50 Kilometer/MonthProduct Description
BS6622 6.35/11kv XLPE Awa/Swa PVC Armoured Underground Power Cable
Single core armoured cable with XLPE insulation. Rated voltage 6.35/11 KV (Um=12kV)
STANDARDS
International : IEC 60502-2 BS 6622
DESCRIPTION
Electric cable with copper conductor, semiconductive conductor screen, XLPE insulation, semiconductive insulation screen, copper metallic screen on each core, PVC bedding, aluminium wires armour (AWA), PVC outer sheath
Application
for energy networks where mechanical stesses are expected. Suitable for underground installation or in ducts
Note: the cable is suitable for rated voltage 6/10 KV (Um=12kV) according to IEC 60502-2

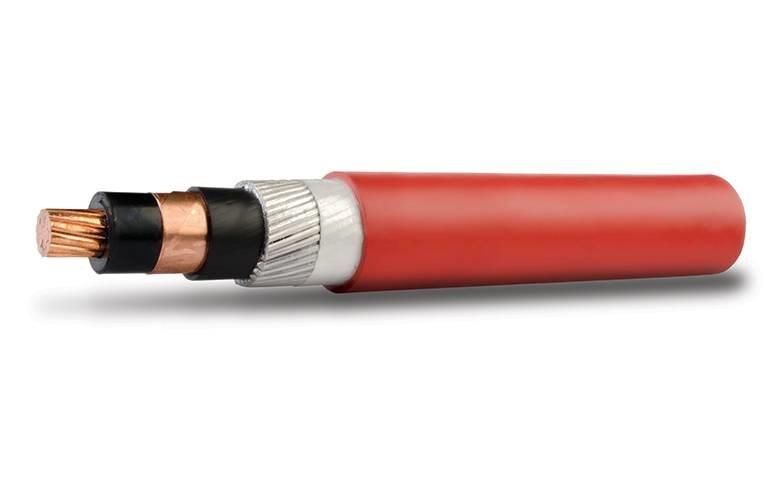

Design
1. copper/aluminum conductor
2. semiconductive conductor screen
3. XLPE insulation
4. semiconductive insulation screen
5. metallic screen
6. PVC bedding
7. aluminum wires armour
8. PVC outer sheath
Product Introduction
Product Parameters
| Sizes(mm2) | Overall Dia.(mm) | Weight(kg/km) | Rated Current(in soil,A) |
| 1x25(Cu) | 26.0 | 964 | 157 |
| 1x35(Cu) | 26.8 | 1088 | 187 |
| 1x50(Cu) | 28.0 | 1256 | 220 |
| 1x70(Cu) | 30.0 | 1529 | 269 |
| 1x95(Cu) | 31.6 | 1829 | 320 |
| 1x120(Cu) | 34.0 | 2203 | 363 |
| 1x150(Cu) | 35.6 | 2526 | 407 |
| 1x185(Cu) | 37.4 | 2936 | 458 |
| 1x240(Cu) | 40.0 | 3575 | 530 |
| 1x300(Cu) | 42.4 | 4236 | 597 |
| 1x400(Cu) | 46.6 | 5298 | 580 |
| 1x500(Cu) | 50.0 | 6425 | 772 |
| 1x630(Cu) | 53.8 | 7939 | 873 |
| 1x800(Cu) | 58.2 | 9796 | 976 |
Packing shipping
Why Choose Us ?

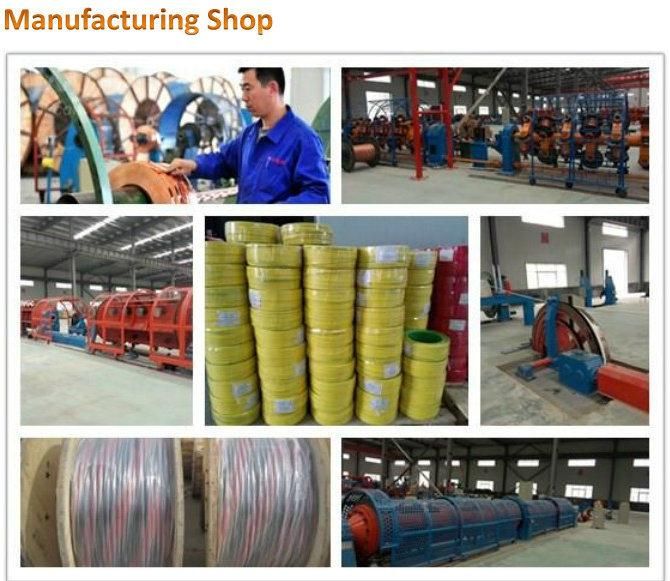

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
If you have another question, pls feel free to contact us below
