Nyy Type 241 1.1 Kv to 11 Kv Underground Above Ground Power Supply Mobile Equipment Open Cut Machine Mine Mining Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Application：Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：Epr (R-Ep-90)
  • Sheath Material：Heavy Duty HD-85-Pcp
  • Material Shape：Round

Base Info

  • Model NO.：Type 209
  • Wire Core Material：Tinned Copper
  • Certification：ISO, CCC, CE
  • Model：Mc
  • Brand：Fengda
  • OEM / ODM：Available
  • Rated Voltage：1.1 Kv - 11 Kv
  • Installation Conditions：in Free Air, in Duct, Mobile Equipment, Machines
  • Behaviour in Flame and Fire：Fire Retardant
  • Transport Package：Drum
  • Specification：1.8m * 1.8m * 1.1m
  • Trademark：Fengda
  • Origin：China
  • HS Code：8544421900
  • Production Capacity：50000000 Meter , Year

Description

Basic Info.

Model NO. Type 209 Wire Core Material Tinned Copper Certification ISO, CCC, CE Model Mc Brand Fengda OEM / ODM Available Rated Voltage 1.1 Kv - 11 Kv Installation Conditions in Free Air, in Duct, Mobile Equipment, Machines Behaviour in Flame and Fire Fire Retardant Transport Package Drum Specification 1.8m * 1.8m * 1.1m Trademark Fengda Origin China HS Code 8544421900 Production Capacity 50000000 Meter / Year

Product Description

UNDERGROUND MINE CABLES 1.1-11 kV

Nyy Type 241 1.1 Kv to 11 Kv Underground Above Ground Power Supply Mobile Equipment Open Cut Machine Mine Mining Cable
Cable description

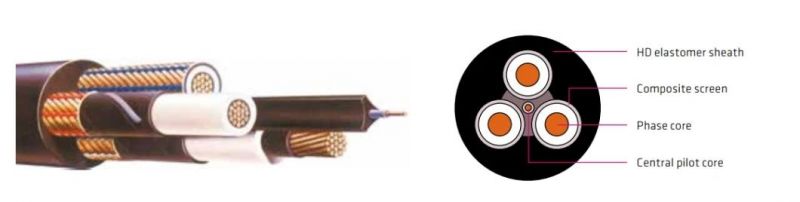

Composite screened cable for general use to AS/NZS 1802

Application
1.1/1.1 kV to 11/11 kV general cable used extensively for feeder connection between transformer and gate-end box or similar, or feeder cables to pumps, fans, crushers, etc or as a substitute to Type A or B feeder cables. This cable can also be used above ground for power supply to mobile equipment.

Temperature range:
Maximum operating temperature: +90 °C
Minimum operating temperature: -25 °C

Flexibility:Flexible

Resistance to
Chemical exposure: Very good/Frequent
Mechanical impact: Heavy
Water exposure: Immersion/Temporary coverage
Solar radiation and weather exposure: Suitable for direct exposure

Installation conditions
In free air / In duct / Mobile equipment / Machines
