• Model NO.：AFG21M21
• Wire Core Material：Tinned Wire
• Certification：ISO, CCC, SGS
• Model：Afg21m21
• Brand：Hongda
• Standard：IEC 60332
• Rated Voltage：600,1000 Volts
• Suitable for：Public
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：20km,Day

Basic Info.

Model NO. AFG21M21 Wire Core Material Tinned Wire Certification ISO, CCC, SGS Model Afg21m21 Brand Hongda Standard IEC 60332 Rated Voltage 600/1000 Volts Suitable for Public Transport Package Drum or as Customer Require Specification 1.5mm2 to 400mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 20km/Day

Product Description

AFG21M21 - 0,6/1 kV

LOW VOLTAGE CABLES - ENERGY AND WIRING, ZERO HALOGEN

Description
The AFG21M21 cables - 0.6 / 1 kV are cables for transporting energy and transmitting signals in indoor or outdoor environments, even when wet. The AFG21M21 - 0.6 / 1 kV cables guarantee optimal operation for at least 25 years in normal conditions of use. Long-term operation (TI temperature index): 120 ° C referred to 20,000 hours (CEI EN 60216-1).

Construction features
Conductor: aluminum, flexible formation cl. 5
Filling sheath: special reticulated compound PEG21 (LS0H). Natural color
Outer sheath: Special crosslinked compound M21 (LS0H)
Color: black, red blue



Normative reference
Construction and requirements: CEI 20-91 | V1 / 2010
Flame propagation: CEI EN 60332-1-2
Gas emission: CEI EN 50267-2-1
Smoke emission: CEI EN 50267-2-2
UV resistance: HD 605-A1
Ozone resistance: CEI EN 50396
Resistance to thermal stress: CEI EN 60216-1
Low Voltage Directive: 2006/95 / EC

Functional characteristics
• Maximum voltage Um: 1200 V AC
• Maximum voltage (also to earth) Um: 1800 V d.c.
• Maximum operating temperature: 90 ° C
• Minimum operating temperature: -55 ° C (in the absence of mechanical stress)
• Minimum installation temperature: -40 ° C
• Maximum overload temperature: 120 ° C
• Maximum short circuit temperature: 250 ° C
• Maximum tensile stress: 50 N / mm² of cable section
• Minimum bending radius: 6 times the maximum external diameter

Conditions of use
AFG21M21 - 0.6 / 1 kV are indicated for the interconnection of elements of photovoltaic systems, in public, private and industrial buildings, agricultural plants, lighting systems and work areas for connection between modules and panels of parallel strings. Suitable for fixed installation outside and inside, within visible or recessed pipes or in similar closed systems. Suitable for installation directly underground or within buried pipes. Operation for at least 25 years under normal conditions of use. Long-term operation (TI temperature index): 120 ° C referred to 20,000 hours (CEI EN 60216-1).

Electrical and mechanical characteristics

Size	Approx. Conductor	Average insulation thickness	Outer Diameter	Approx. Cable Weight	Max. electrical resistance at 20ºC
Noxmm2	mm	mm	mm	kg/km	Ω/km
1x2.5	2.0	0.7	6.5	28.17	11.660
1x4	2.6	0.7	7.15	35.07	7.340
1x6	3.4	0.7	7.5	46.51	4.890
1x10	4.4	0.7	7.99	67.26	2.920
1x16	5.7	0.7	9.1	94.25	1.770
1x25	6.9	0.9	10.4	138.64	1.170
1x35	8.1	0.9	11.7	174.23	0.816
1x50	9.8	1.0	14.05	239.87	0.604
1x70	11.6	1.1	15.9	314.57	0.423
1x85	12.8	1.1	16.6	373.81	0.330
1x95	13.3	1.1	17.6	405.48	0.320
1x120	15.1	1.2	19.9	498.21	0.253
1x150	16.8	1.4	22.01	618.15	0.206
1x185	18.8	1.6	24.2	772.98	0.164
1x240	21.4	1.7	26.88	975.27	0.125
1x300	23.9	1.8	31.7	1194.00	0.092
1x400	27.5	2.0	35.1	1568.52	0.069

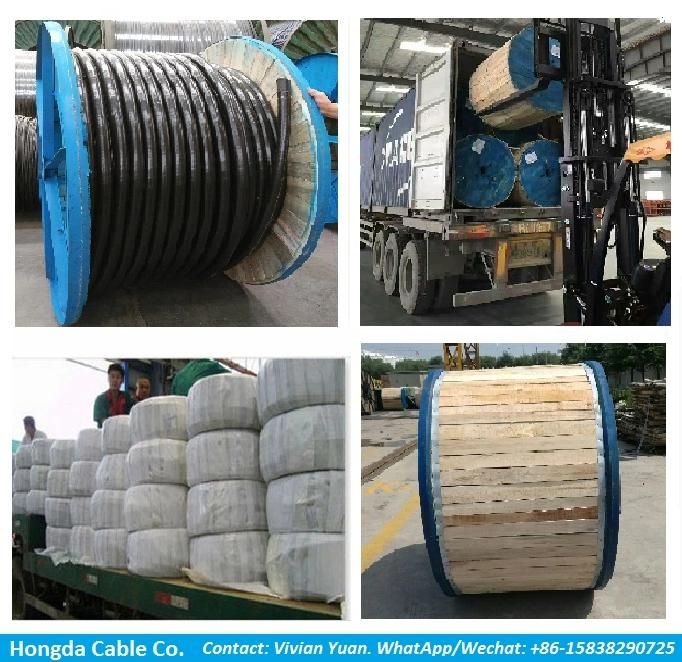

Packing & Shipping:




FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

We are looking forward to your inquiry and nice cooperation.
