Economical and Practical Coaxial Cable for Festoon Systems
Hangzhou Nante Machinery Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Conductor Material:Copper
- Material Shape:Flat Wire
- Certification:ISO9001
- Rated Voltage:≤ 1.5mm: 300,500V ≥ 1.5mm: 450,750V
Base Info
- Test Voltage:≤ 1.5mm: 2500V ≥ 1.5mm: 3000 V
- Temperature Range:-15ºC to +80ºC
- Transport Package:Carton
- Trademark:NANTE
- Origin:China
- Production Capacity:100000 Sets Per Year
Description
can be used for festoon systems, power tracks, cable tenders, cranes and hoists.
Feature:
Sheath: Special polychloreprene (Butadiene-Acrylonitrile Rubber) which is flame
resistance and self-extinguishing.
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: Special polychloreprene (Butadiene-Acrylonitrile Rubber)

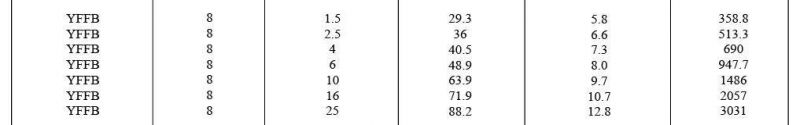

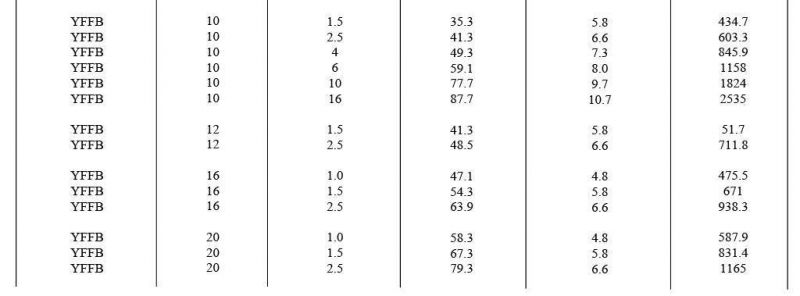

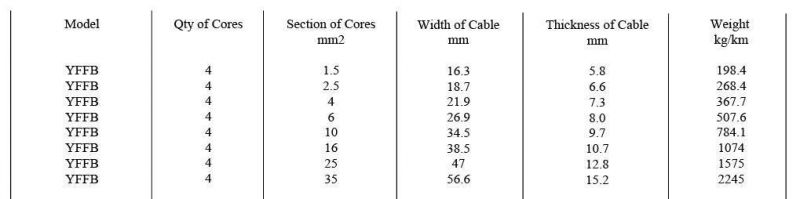

Technical data:
Rated voltage: ≤1.5mm2 300/500V >1.5mm2: 450V/750V
Test voltage: ≤1.5mm2 2500V >1.5mm2: 3000V
Temperature range: -20°C to +80°C
Crane Cable Power Supply PVC Series
Applications:
PVC Series Cable is special designed for frequent motion and flexing. This cable
can be used for festoon systems, power tracks, cable tenders, cranes and hoists.
Feature:
Sheath: PVC which is flame resistance and self-extinguishing.
Conductor: Superfine Soft Bare Copper which purity can reach 99.999%.
Insulation: PVC which is oil and flame resistance and self extinguishing and so on.
Technical data:
Rated voltage: ≤1.5mm2 300/500V >1.5mm2: 450V/750V
Test voltage: ≤1.5mm2 2500V >1.5mm2: 3000V
Temperature range: -20°C to +80°C
