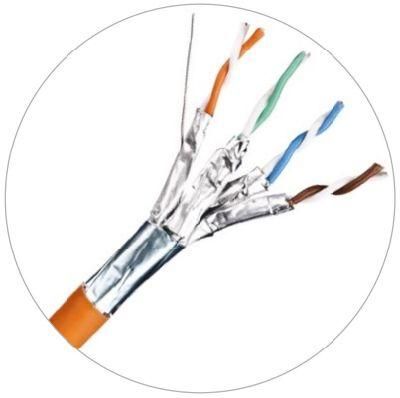

Cat7 UTP FTP SFTP Ethernet Network Cable Patch LAN Cable

GENERAL CLAD CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 7
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：CAT7
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Color：Grey, Blue, Black, Yellow, Red etc
  • Transport Package：Carton Box
  • Specification：305m,roll
  • Trademark：General Clad
  • Origin：China
  • Production Capacity：10000 Boxes, Month

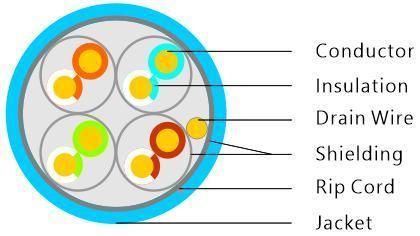

Description

Cat7 UTP FTP SFTP Ethernet Network Cable Patch LAN CableCat7 UTP FTP SFTP Ethernet Network Cable Patch LAN Cable DescriptionRated temperature -20- 75ºC
Standard UL444, TIA/EIA568B, ISO/IEC11801
23 awg wire gauge
Single bare copper conductor
Insulated high-density polyethylene
Line of 4
Sheathed PVC
Tear rope as neededElectrical propertiesCharacteristic impedance of 1.0~ 500.0mhz (ohms) 100±15
1.0~ 500.0mhz delay difference (ns/100m) ≤45
At 20ºC, the maximum dc resistance of the conductor (ohms/km) is ≤65.8
Conductor resistance imbalance (%) ≤1.0Application100 Base - T4
100 Base - TX
100 VG - AnyLAN
155 Mbps ATM
622 Mbps ATM
packaging
305 m/easy pull box/shaft (as required)

   Package
 Cat7 UTP FTP SFTP Ethernet Network Cable Patch LAN CableCat7 UTP FTP SFTP Ethernet Network Cable Patch LAN CableCat7 UTP FTP SFTP Ethernet Network Cable Patch LAN Cable
