• Model NO.：H07V-R
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC
• Brand：Hongda
• Sample：Free
• Standard：IEC 60227
• Transport Package：Wooden Box, Wooden Pallet
• Specification：1.5~630sqmm
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：1000km,Month

Basic Info.

Model NO. H07V-R Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Hongda Sample Free Standard IEC 60227 Transport Package Wooden Box, Wooden Pallet Specification 1.5~630sqmm Trademark Hongda Origin China HS Code 8544492100 Production Capacity 1000km/Month

Product Description

450/750V Stranded Copper PVC Insulated Cable H07V-R for Housing Use

H07V-R cable is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.


Construction
Conductor: Stranded Copper wire Class 2 to VDE0295/IEC60228
Insulation: PVC

H07V-R 450/750V Technical Data

Rated voltage	450/750V
Test voltage	2500V
Flexing bending radius	12.5 x Ø
Static bending radius	12.5 x Ø
Flexing temperature	-5º C to +70º C
Static temperature	-30º C to +80º C
Flame retardant	IEC 60332.1
Insulation resistance	10 MΩ x km


H07V-R PVC electric wire Cable 450/750V Specification

AWG		No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter	Nominal Copper Weight kg/Km	Nominal Weight kg/Km
16(7/24)		1 x 1.5	3	14.4	23
14(7/22)		1 x 2.5	3.6	24	35
12(7/20)		1 x 4	4.2	39	51
10(7/18)		1 x 6	4.7	58	71
8(7/16)		1 x 10	6.1	96	120
4(7/12)		1 x 25	8.4	240	260
2(7/10)		1 x 35	9.5	336	350
1(19/13)		1 x 50	11.3	480	480
350MCM(37/10)		1 x 185	20.2	1776	1780
500MCM(61/11)		1 x 240	22.9	2304	2360

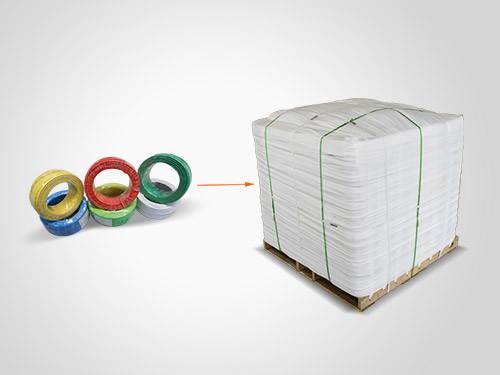

Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges

FAQ

1. Q: Are you the factory or the trading company?
    A: We are the factory.
2. Q: How long is your guarantee Period?
    A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
    A: We can make the sample order. And usually you will charge for it.
    But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
    A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
    A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.

Factory

Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.



Our Service

1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
