Veriflex XLPE Insulation Jacket Flexible Wire Electric Cable H07zz-F H05zz-F Control Cable Electric Wire Coaxial Cable Waterproof Rubber Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, Installation in Ground, Indoors, Outdoors.
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：LSZH (Low Smoke Zero Halogen) Cross-Linked Compoun
- Sheath Material：LSZH (Low Smoke Zero Halogen) Cross-Linked Compoun
- Material Shape：Round Wire
Base Info
- Model NO.：H07ZZ-F,wd-Yz
- Wire Core Material：Copper or Aluminum
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：H07zz-F,Wd-Yz
- Brand：Feiya
- Temperature Range：-20 Degree to +90 Degree
- OEM&ODM：Yes
- Rated Voltage：450,750V
- Operating Environment：Handling Equipment, Mobile Power Supplies, Worksit
- Other Service：Can Be Customized
- Colors：Can Be Customized
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper,aluminum,rubber
- Trademark：Feiya
- Origin：China
- HS Code：8544492100
- Production Capacity：80000 Meter,Meters Per Month
Description
Product Description

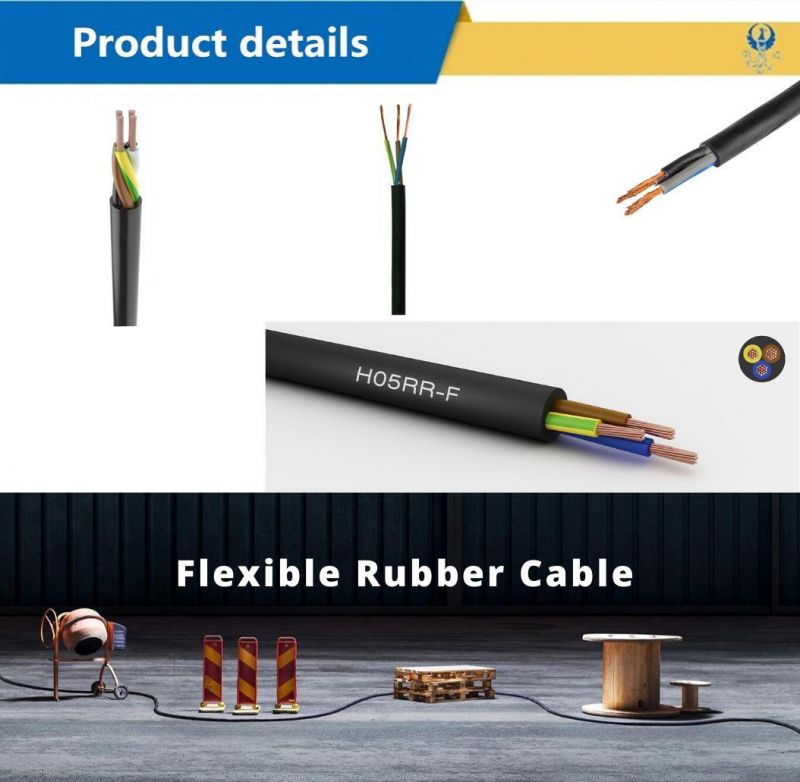

H03RN-F, H05RN-F, H07RN-F is a lightweight, harmonized, rubber insulated, flexible and jacketed multi-conductor European cord.
Application
The 300/500V copper conductor EPR insulated rubber cable used for household electrical appliances, electrical tools, and various mobile electrical equipments.
Basic structure
Conductor: Stranded bare or tinned soft copper wire
Insulation: EPR (Ethylene-Propylene Rubber)
Sheath: Neoprene (Chloroprene rubber)
Rated Voltage
300/300V (H03RN-F)
300/500V (H05RN-F)
450/750V (H07RN-F)
Temperature rating
Conductor operating temperature -25° C to +60° C (85° C max)
The other cables we can also produced have: H03RN-F, H05RN-F, H07RN-F etc. Please feel free to contact us if you need more detailed information!
