• Model NO.：GJX
• Material Shape：Round Wire
• Range of Application：Mine
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Optelec
• Cable Diameter：1,4 Inch
• Transport Package：Iron Wooden Drum
• Specification：IEEE1138
• Trademark：Powtech
• Origin：China
• HS Code：7316
• Production Capacity：100km,Month

Basic Info.

Model NO. GJX Material Shape Round Wire Range of Application Mine Certification ISO9001, CE, UL, CCC, RoHS Brand Optelec Cable Diameter 1/4 Inch Transport Package Iron Wooden Drum Specification IEEE1138 Trademark Powtech Origin China HS Code 7316 Production Capacity 100km/Month

Product Description

Stay Wire/Guy Wire 1.0mm*7Rods:


Features:
1. High quality, competive price
2. Free sample
3. ASTM, BS, GB
4. Cable manufacturer

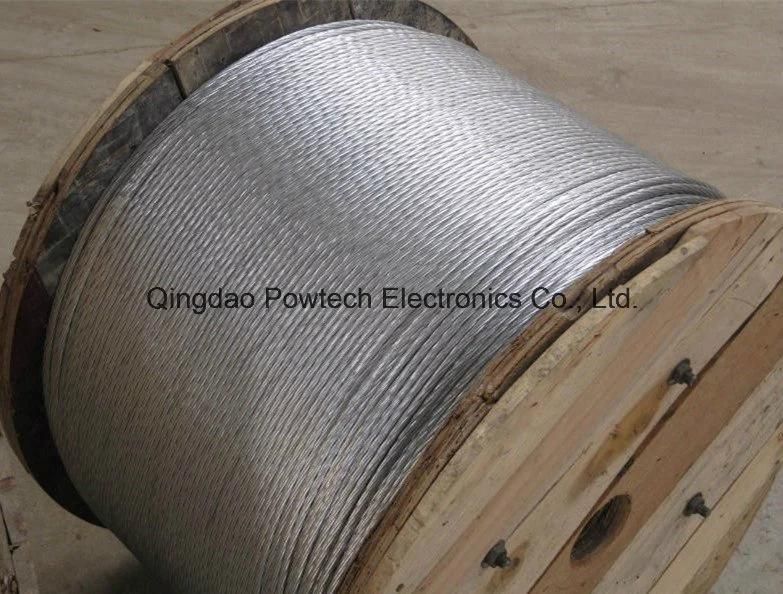

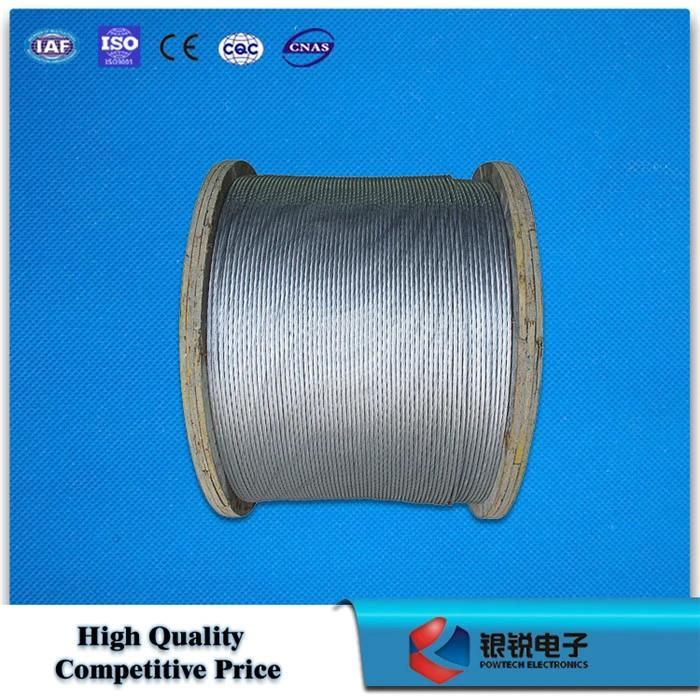

Galvanized Steel Wire/Stay Wire/Guy Wire BS 183 1*7

1. Application:

The conductors are used in overhead power line. Overhead conductor covers a serious of conductors such as AAC(All Aluminium Conductor), ACSR(Aluminium Conductor Steel Reinforced ), AAAC(Aluminium Alloy Conductor ), BCC(Bare Copper Conductor), ACS(Aluminium Clad Steel Conductor).

2. Specific Property for using

2.1 The permissible long-time operating temperature for aerial conductor is 70 ° C.

2.2 The circumstance that long distance rare climate and ice coverage rare occurring in heavy ice area, the most biggest stress of cable at the lowest arc downing point should not exceed 60% of the distructive power at a short time.

2.3 When connecting conductors, the conductor near to the connecting tube can`t be prominient. Otherwise, the force on the operating conductors will be unbalanced after connectors are pressed, the connecting tube should be plated ny moistureproof paint in order to protect from corroding.

2.4 Under installation, the arc downing stress of all the conductors at home distance ot the ground and across building can be 10-15% higher than regular tension.

We can also supply the OEM and customized products according to customer's requirement.

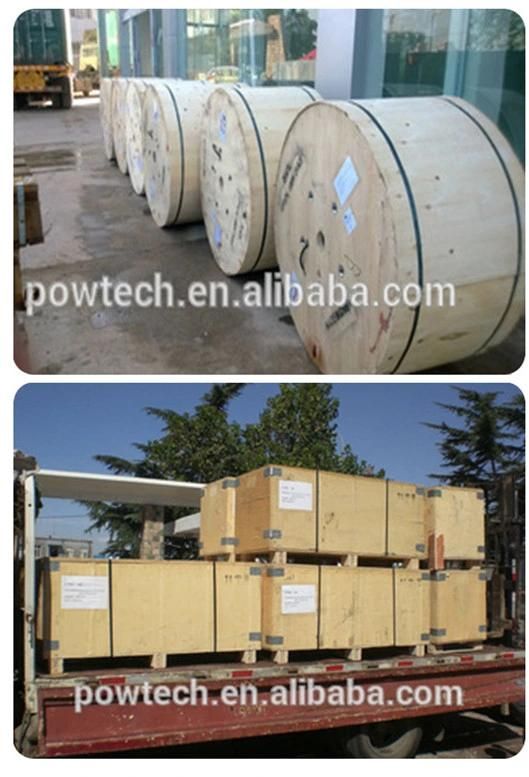

Warehouse:

Technical Data Sheet:

Structure	Diameter(mm)	Tensile Strength MPa
1X3	6.2-8.6	1175 1270 1370 1470 1570
1X7	3.0-12	1175 1270 1370 1470 1570
1X19	8.0-20	1175 1270 1370 1470 1570
