• Model NO.：AXMK
• Wire Core Material：Aluminum
• Certification：ISO, CCC, SGS
• Model：Yjlv
• Brand：Hongda
• Rated Voltage：Uo,U = 0,6,1 Kv, Um = 1,2 Kv
• Transport Package：500m,1000m,2000m Per Export Drum
• Specification：1.5-630mm2
• Trademark：Hongda
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：600km,Month

Basic Info.

Model NO. AXMK Wire Core Material Aluminum Certification ISO, CCC, SGS Model Yjlv Brand Hongda Rated Voltage Uo/U = 0,6/1 Kv, Um = 1,2 Kv Transport Package 500m/1000m/2000m Per Export Drum Specification 1.5-630mm2 Trademark Hongda Origin Henan, China HS Code 8544492100 Production Capacity 600km/Month

Product Description

0.6/1 Kv XLPE Insulated Power Cable 4x50 4x70 4x150 4x185 4x240 4x300 AXMK Cable

RATED VOLTAGE: Uo/U = 0,6/1 kV, Um = 1,2 kV
Power cables 1 kV
AXMK-PLUS 4 conductors


APPLICATION:
For fixed installation indoors and outdoors. installable also the ground by plowing.

Maximum conductor temperature:
• Continuous operation at 90 ° C
• in case of a fault (maximum 5 s) 250 ° C
The lowest recommended treatment temperature is -20 ° C

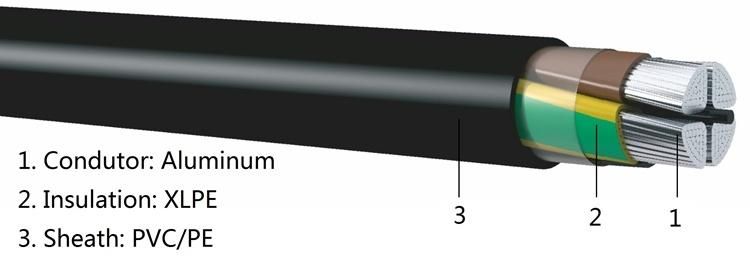

STRUCTURE

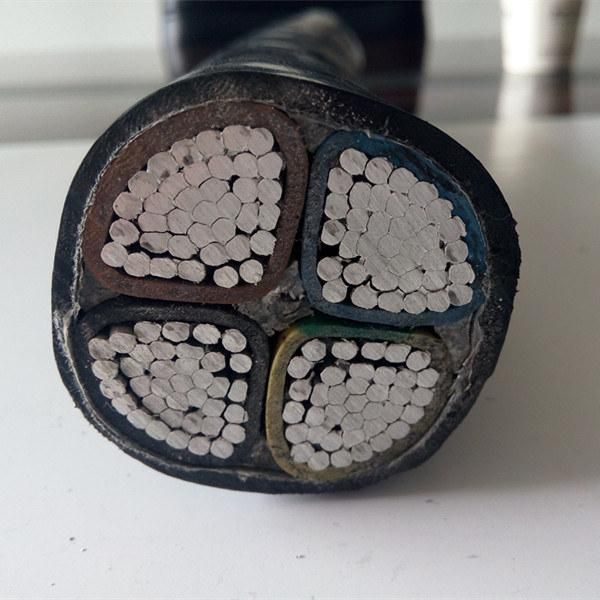

Conductor: 16 … 25 mm² circular stranded aluminium, IEC 60228 class 2
35 …300 mm² sector shaped, stranded aluminium, IEC 60228 class 2
Insulation: with UV-resistant XLPE plastic
Twisting Insulated conductors twisted together
Outer sheath: Black UV-resistant PVC/PE



PHASE IDENTIFICATION
Color recognition of wires according to HD 308 S2:
4-wire Yellow-green, brown, black, gray

STANDARDS
SFS 4879 / SFS 5800
HD 603-5D / -5E
IEC 60502-1
EN 50575: 2014 + A1: 2016
EN 13501-6, Category: Eca (CPR fire classification)
IEC 60332-1-2 (self sam.)

PROPERTIES


Specification	Voltage	Diameter (mm)	Weight	Maximum DC resistance of phase conductor, +20°C (ohm/km)
AXMK 1x300	0,6/1 (1,2) kV	30	1190	0.100
AXMK 4×16 S	0,6/1 (1,2) kV	21	380	1.910
AXMK 5×16 S	0,6/1 (1,2) kV	23	480	1.910
AXMK 4×25 S	0,6/1 (1,2) kV	25	530	1.200
AXMK 4×35 S	0,6/1 (1,2) kV	25	650	0.868
AXMK 4×50 S	0,6/1 (1,2) kV	28	850	0.641
AXMK 4×70 S	0,6/1 (1,2) kV	32	1160	0.443
AXMK 4×95 S	0,6/1 (1,2) kV	35	1510	0.320
AXMK 4×120 S	0,6/1 (1,2) kV	40	1890	0.253
AXMK 4×150 S	0,6/1 (1,2) kV	44	2310	0.206
AXMK 4×185 S	0,6/1 (1,2) kV	49	2810	0.164
AXMK 4×240 S	0,6/1 (1,2) kV	55	3690	0.125
AXMK 4×300 S	0,6/1 (1,2) kV	59	4450	0.100

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
