0.6/1kv Distribution Cable 3 Core Al XLPE Copper Neutral Screen Cables 3*240+Wns

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE,PVC,PE
  • Sheath Material：PVC or PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：copper neutral screen cables 3*240+WNS
  • Wire Core Material：Copper or Aluminum
  • Certification：ISO, CCC, CE
  • Model：Power Cable
  • Brand：Hongda
  • Transport Package：Coil and Drum
  • Specification：up to 1000mm2
  • Trademark：Hongda
  • Origin：Henan, China
  • HS Code：8544921000
  • Production Capacity：5000000m,Month

Description

ConductorsAL Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295InsulationXLPE  PVC compoundFillerspouted elastomer or plastomer compound or wrapped thermoplastic tapesConcentricin inner layer corrugated spirally wrapped copperconductorwires, in external layer copper tape wrapped in counter-helixSheathPVC compound
Technical data
Temperature range

during installation: -5 °C up to +50 °C

fixed installed: -30 °C up to +70 °C

at short circuit of max. 5 s: up to 160 °C

Nominal voltageUο/U = 0,6/1 kVTest voltage4 kVMax. operating voltage in three-phase systems1,2 kVMax. tensile strength50 N/mm²Behaviour in fireIEC 60332-1Minimal inner bending radius

single core: 15D

multi core: 20D


Cable Parameters
Number of cores and
nominal cross section

mm2		Copper
figure

kg/km		Overall
diameter
appr.
mm		Weight

appr.
kg/km		Current
carrying
capacity ground
A		Current
carrying
capacity air
A
2 x 10 RE/ 10325,0 19 660,0 79 60
3 x 10 RE/ 10425,0 20 760,0 79 60
3 x 16 RE/ 16670,0 22 1.040,0 102 80
3 x 25 RM/ 16940,0 26 1.490,0 133 108
3 x 25 RM/ 251.045,0 26 1.580,0 133 108
3 x 35 SM/ 161.240,0 27 1.800,0 160 132
3 x 35 SM/ 351.460,0 29 1.880,0 160 132
3 x 50 SM/ 251.795,0 30 2.260,0 190 160
3 x 50 SM/ 502.083,0 31 2.460,0 190 160
3 x 70 SM/ 352.510,0 33 3.060,0 234 202
3 x 70 SM/ 702.913,0 34 3.310,0 234 202
3 x 95 SM/ 503.433,0 38 4.080,0 280 249
3 x 95 SM/ 953.949,0 40 4.510,0 280 249
3 x 120 SM/ 704.413,0 42 5.040,0 319 289
3 x 120 SM/1204.985,0 43 5.490,0 319 289
3 x 150 SM/ 705.313,0 46 6.040,0 357 329
3 x 150 SM/1506.219,0 47 6.750,0 357 329
3 x 185 SM/ 956.649,0 51 7.510,0 402 377
3 x 240 SM/1208.585,0 57 9.640,0 463 377
4 x 10 RE/ 10525,0 21 890,0 79 60
4 x 16 RE/ 16829,0 23 1.240,0 102 80
4 x 25 RM/ 161.190,0 28 1.800,0 133 108
4 x 35 SM/ 161.590,0 28 2.130,0 160 132
4 x 50 SM/ 252.295,0 33 2.870,0 190 160
4 x 70 SM/ 353.210,0 36 3.870,0 234 202
4 x 95 SM/ 504.383,0 43 5.303,0 280 249
4 x 120 SM/ 705.613,0 46 6.380,0 319 289
4 x 150 SM/ 706.813,0 51 7.730,0 357 329
4 x 185 SM/ 958.499,0 57 9.770,0 402 377
4 x 240 SM/12010.913,0 64 12.540,0 463 443

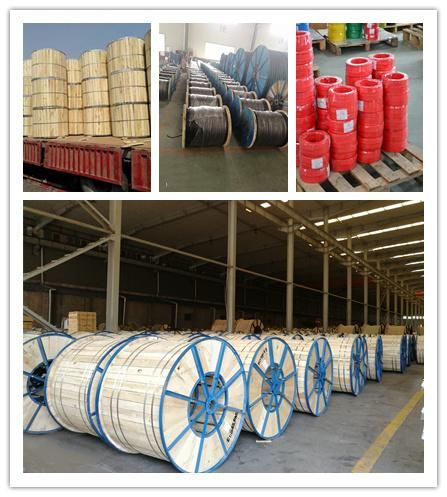

Packing:

0.6/1kv Distribution Cable 3 Core Al XLPE Copper Neutral Screen Cables 3*240+Wns

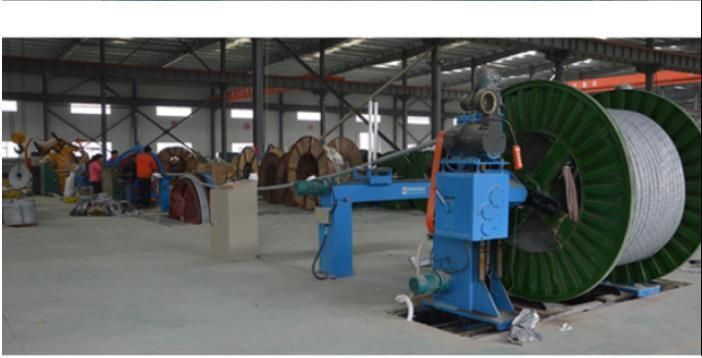

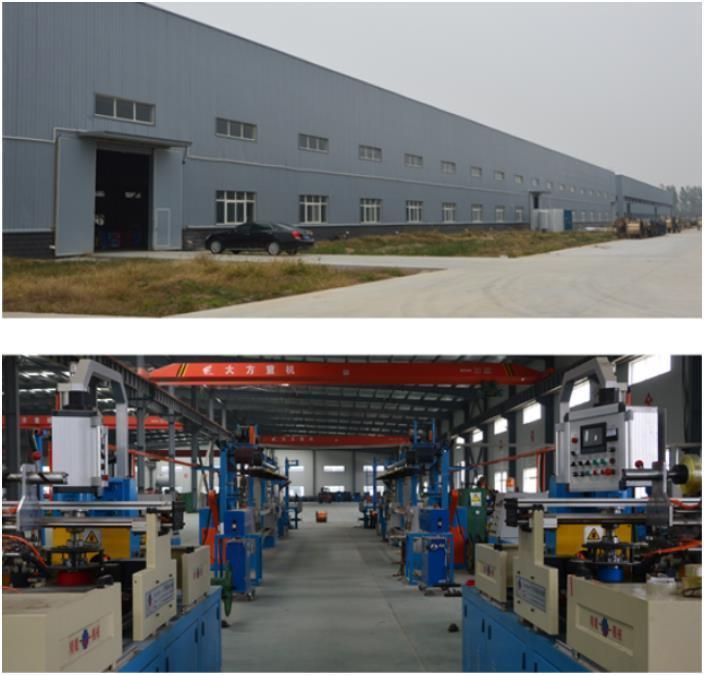

Factory :

0.6/1kv Distribution Cable 3 Core Al XLPE Copper Neutral Screen Cables 3*240+Wns
0.6/1kv Distribution Cable 3 Core Al XLPE Copper Neutral Screen Cables 3*240+Wns
