Feiya 2021 TUV Approved PV Solar Cable Zz-F H1z2z2-K Photovoltaic Solar Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：XLPE
- Insulation Material：XLPE
Base Info
- Model NO.：H1 Z2Z2-K
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description

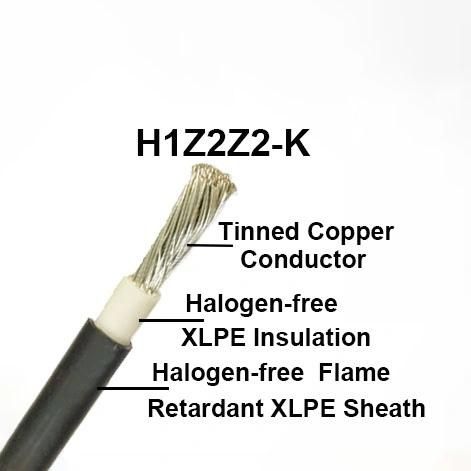

Type:H1 Z2Z2-K
Standard:EN 50618 Halogen free:EN 50267 / IEC 60754 Smoke
Density:light transmittance acc. to EN 50267 / IEC 61034
Conductor: Electrolytic annealed flexible tinned copper conductor
Insulation: Halogen Free, Thermosetting insulated
Sheath: Halogen Free, Thermosetting Sheath
Rate Voltage: 0.6/1kV AC;1800V DC HCI Content: <0.5% pH: >4.3 Smoke
Density: light transmittance >60%
Temperature Limits: Ambient Temperature: -40 to 90°C; Maximum conductor temp: 120°C Maximum short circuit temp: 250°C (max 5s). Short Circuit temp: 250°C
| Tinned Conductor size mm² | Number of cores | Overall Diameter mm | Approx Weight kg/km |
| 1.5 | 1 | 4.5 | 37 |
| 2.5 | 1 | 5.0 | 49 |
| 4 | 1 | 5.5 | 67 |
| 6 | 1 | 6.1 | 88 |
| 10 | 1 | 7.1 | 134 |
| 16 | 1 | 9.0 | 203 |
| 25 | 1 | 11.0 | 310 |
| 35 | 1 | 13.1 | 424 |
| 50 | 1 | 15.1 | 577 |
| 70 | 1 | 17.3 | 789 |
| 95 | 1 | 18.7 | 1000 |
| 120 | 1 | 20.8 | 1267 |
| 150 | 1 | 23.7 | 1578 |
| 185 | 1 | 25.9 | 1929 |
| 240 | 1 | 29.3 | 2525 |
