• Model NO.：GL-1087
• HS Code：8205590000
• Production Capacity：15000 Piece,Pieces , Week

Basic Info.

Model NO. GL-1087 HS Code 8205590000 Production Capacity 15000 Piece/Pieces / Week

Product Description

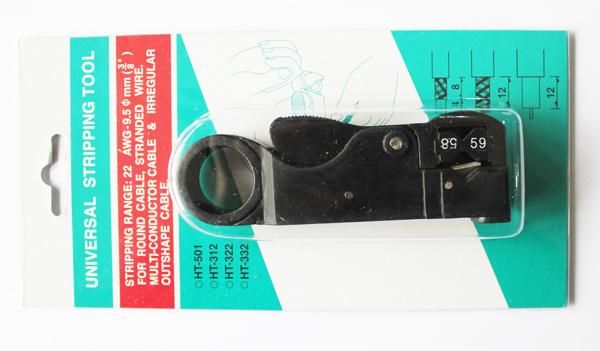

Coaxial Cable Stripper
1. Own the same function with lm-5020
2. The inner blade is used for RG58, RG59 coaxial cable
Blades' Depth: You may use the hex wrench, which is install on the bottom of the tool to adjust the blades' depth. Insert the hex wrench into the blade depth adjuster on the bottom of the stripper, then rotate the hex wrench clockwise (to cut smaller cable) or counterclockwise (to cut larger cable).

Repeat above steps to set the other blade.

Stripping Cable:

1. Use hex wrench to push the V-block out of the housing, align the character on the V-block with the arrow, and then insert the V-block into its housing. The indicated arrow recommended the RG cable size mark in front of the V-block. The V-block is reversible.

2. Press the knurled portion on the upper jaw to open the stripper's jaws.

3. Insert the cable you want to strip through the V-block until the cable reaches the V-shaped cable guide. Then release the upper jaw to close the jaws.

4. Insert your index finger into the stripper's finger ring, turn the stripper clockwise 3-5 times. The cable's insulation is cut while you turn the stripper.

5. Open the jaws and remove the cable. Pull away the outer jacket and dielectric to expose the inner conductor.
