Overhead AAC Bare Aluminium Conductor with IEC61089
Guangdong Vango Cable Industry Co., Ltd.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：Bare
- Material Shape：Round Wire
Base Info
- Model NO.：AAC Conductor
- Wire Core Material：Aluminium
- Certification：ISO, CCC, CE
- Model：AAC Conductor
- Brand：Gdyg
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600tons Per Month
Description
D.C. resistanceWire Conductor mm2 mm mm kg/km kN Ohm/km 10 10 7 1.35 4.05 27.4 1.95 2.8633 16 16 7 1.71 5.12 43.8 3.04 1.7896 25 25 7 2.13 6.40 68.4 4.50 1.1453 40 40 7 2.70 8.09 109.4 6.80 0.7158 63 63 7 3.39 10.2 172.3 10.39 0.4545 100 100 19 2.59 12.9 274.8 17.00 0.2877 125 125 19 2.89 14.5 343.6 21.25 0.2302 160 160 19 3.27 16.4 439.8 26.40 0.1798 200 200 19 3.66 18.3 549.7 32.00 0.1439 250 250 19 4.09 20.5 687.1 40.00 0.1151 315 315 37 3.29 23.0 867.9 51.97 0.0916 400 400 37 3.71 26.0 1102.0 64.00 0.0721 450 450 37 3.94 27.5 1239.6 72.00 0.0641 500 500 37 4.15 29.0 1377.6 80.00 0.0577 560 560 37 4.39 30.7 1542.9 89.60 0.0515 630 630 61 3.63 32.6 1738.3 100.80 0.0458 710 710 61 3.85 34.6 1959.1 113.60 0.0407 800 800 61 4.09 36.8 2207.4 128.00 0.0361 900 900 61 4.33 39.0 2483.3 144.00 0.0321 1000 1000 61 4.57 41.1 2759.2 160.00 0.0289 1120 1120 91 3.96 43.5 3093.5 179.20 0.0258 1250 1250 91 4.18 46.0 3452.6 200.00 0.0231 1400 1400 91 4.43 48.7 3866.9 224.00 0.0207 1500 1500 91 4.58 50.4 4143.1 240.00 0.0193

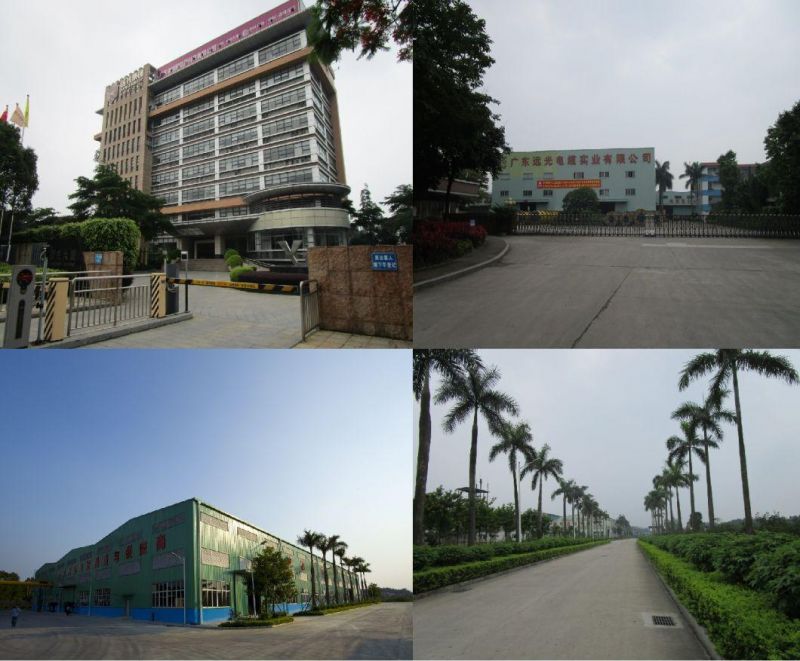

Our Company

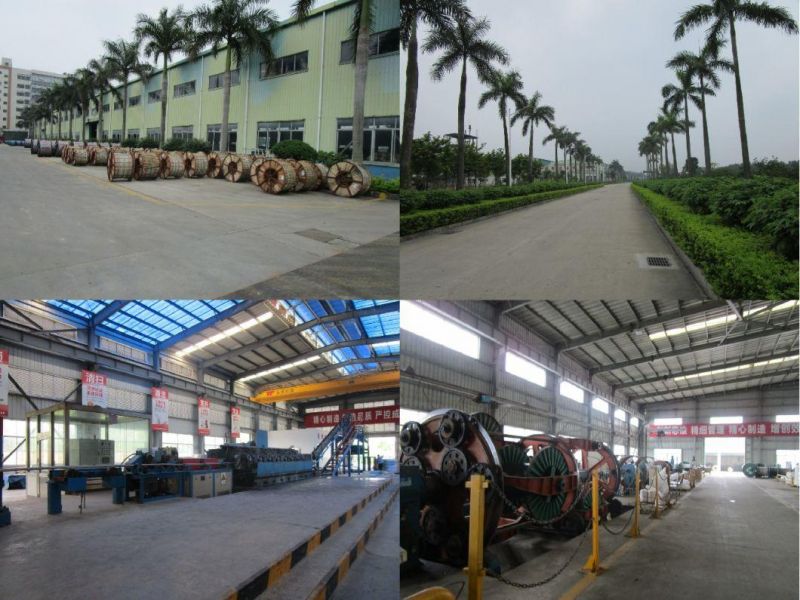

Factory & Workshop

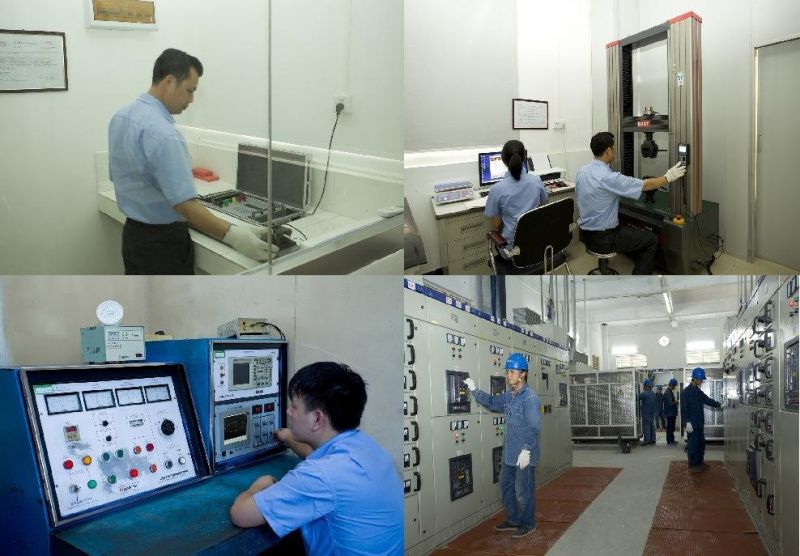

Test
