• Model NO.：CPVV
• Material Shape：Round Wire
• Range of Application：Cathodic Protection System
• Certification：ISO9001, CCC
• Brand：Yifang
• Core：1
• Transport Package：Drum or as Per Customer′s Request
• Specification：10mm2 to 70mm2
• Trademark：YIFANG
• Origin：China
• HS Code：8544492100
• Production Capacity：500km Per Week

Basic Info.

Model NO. CPVV Material Shape Round Wire Range of Application Cathodic Protection System Certification ISO9001, CCC Brand Yifang Core 1 Transport Package Drum or as Per Customer′s Request Specification 10mm2 to 70mm2 Trademark YIFANG Origin China HS Code 8544492100 Production Capacity 500km Per Week

Product Description

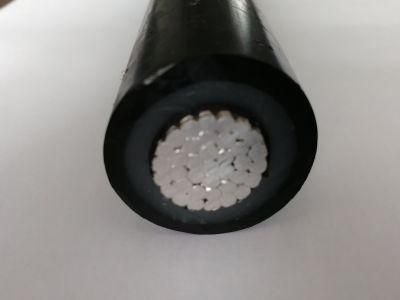

Copper Condcutor insulated DC Cathodic Protection Cable

1. Applications
The cathodic protection cable mainly used for impressed current cathodic protection system.
It has excellent electrical properties, mechanical behavior, heat aging property, resistance to environment stress and chemical corrosion resistance ability, very low water absorption and simple structure ,easy to use and not retain by laying fall etc.
The products is equivalent to the national standards GB16702 and the national petroleum company of Saudi Arabia 17-SAMSS-017<Impressed current cathodic protection cable procurement norms>of our corporate standard to organize production. The company also may require the user or by other standards, designing and manufacturing some special functions of cathodic protection cable.

2. Cable type, core number and conductor cross section
 1. Cable type and name

Type	Name
CPVV	Copper core PVC insulated and sheathed cathodic protection cable (Cu/PVC/PVC)
CPY	Copper core HMWPE insulated cathodic protection cable (Cu/HMWPE)
CPFY	Copper core fluorine plastic insulated HMWPE sheathed cathodic protection cable (Cu/PVDF/HMWPE; Cu/ KYNAR/HMWPE)
CPFY33	Copper core fluorine plastic insulated fine-steel-wire-armored HMWPE sheathed cathodic protection  cable(Cu/PVDF/SWA/HMWPE; Cu/ KYNAR/SWA/HMWPE)

2. Core number: 1 core
 3. Conductor cross section: 10, 16, 25,35,50,70

4. Characteristics
1. Rated voltage: DC600V
2. Long-term permissible working temperature of cable conductor:
  PVC insulated cable: 70ºC
  HMWPE insulated cable: 90ºC
  PVDF/ KYNAR insulated cable: 135ºC
 3. The layout temperature of cable shall not be lower than -20ºC
 4. The bending radius: 20D,(D is outer diameter cable )
5. Technical Requirements
1. DC Resistance: the resistance value of finished cable at 20ºC is not more than the following table provides.

Cross section (mm2)	10	16	25	35	50	70
Resistance (Ω/km)	1.83	1.15	0.727	0.524	0.387	0.268

2. AC voltage withstand test:
The cable impose 50Hz, 3500V AC, sustainable 5 min, during the test, the insulation should not occur breakdown.
3. Insulation-resistanca test
Insulation resistance at 20ºC should be greater than 1500MΩ/km
