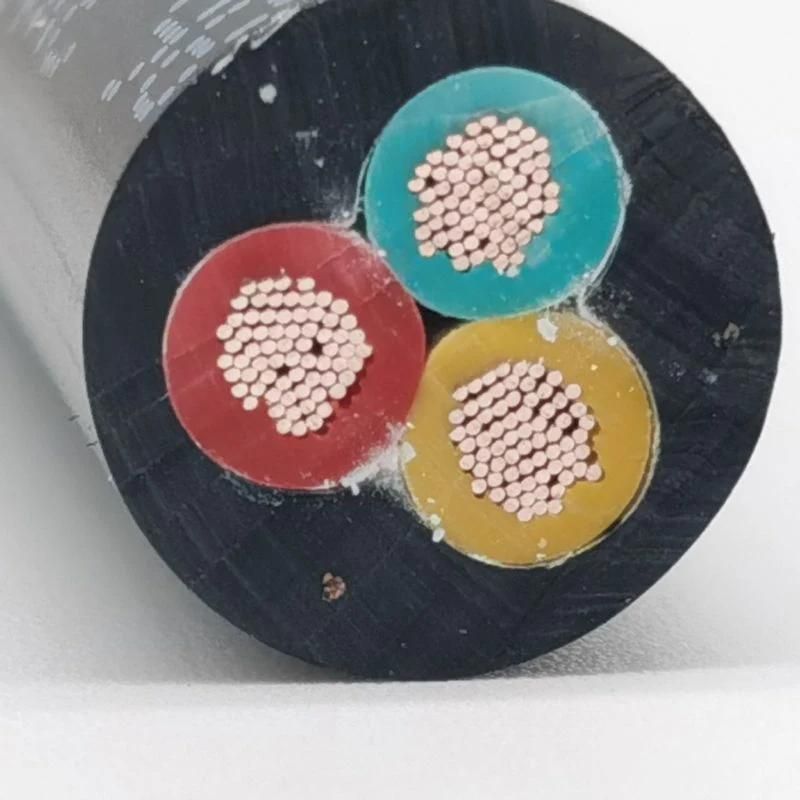

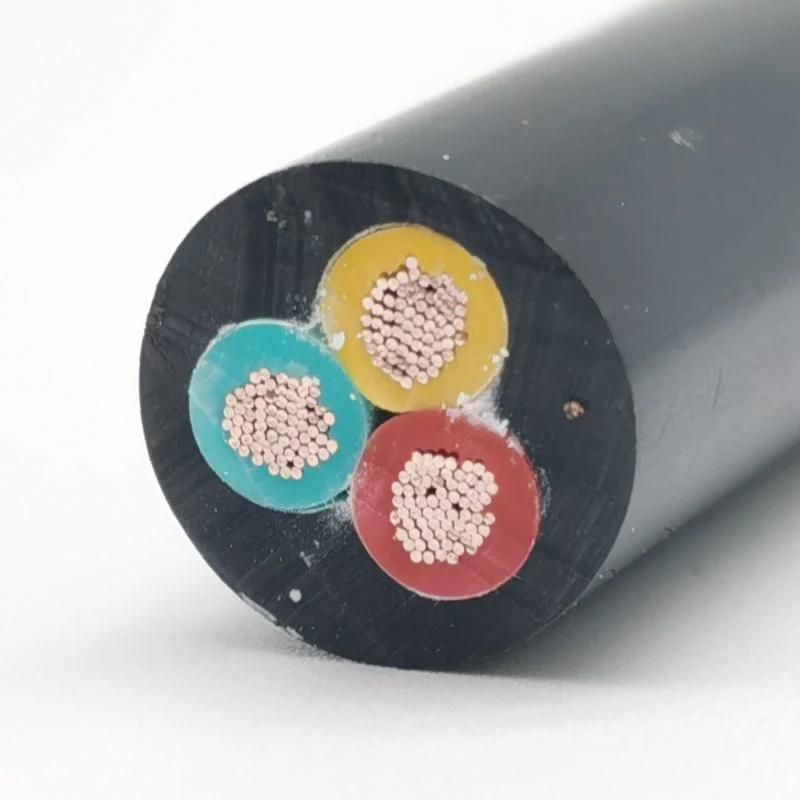

H07rn-8-F Cable Flexible Rubber Cable as Energy Supply Cable for Submersed Pumps

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Rubber
  • Insulation Material：Rubber
  • Material Shape：Round Wire

Base Info

  • Model NO.：H07RN-8-F Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemH07RN-8-F Cable  ConductorClass 5 flexible copper conductorInsulationRubberOuter sheathRubberRated voltage Uo/U: 450/750 VCore numberMulticores (As client's requirement)Temperature Rating
Fixed: -40°C to +60°C

Flexed: -15°C to +60°C
 Minimum Bending Radius
Fixed: 4 x overall diameter

Flexed: 6 x overall diameter
 temp. at conductor+60 °CApplicationFor installation in dry, damp or wet environments, in workshops with explosive atmospheres: it can be immersed in fresh water up to 10m depth and it could be used as energy supply cable for submersed pumps. Not suitable for underwater power transmission or installation in a waterway or where mechanical damage might occur and cause hazard. For connections liable to moderate mechanical stresses, i.e. industrial or agricultural workshop apparatus, large boilers, heater plates, electric tools such as drills and disk saws, electric appliances, portable motors and generators on building sites; also for fixed installations along floors or shelving on temporary job sites, for connecting structural elements in lifting apparatus, machinery, etc. Suitable for applications up to 1kV for adequately protected fixed installations (i.e. inside pipes or equipment) as well as for rotor connections to lifting equipment motors.
