• Model NO.：Cable ADSS
• Jacket：PVC,LSZH,PE,TPU,...
• Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
• Allowed Tensile Strength：100n<1000n
• Operating Temperature：-20ºC~ +60ºC
• Applications：FTTX
• Related Products：Patchcords and Pigtails
• Cable Type：ADSS
• Fiber Type1：50,125,62.5,125,Om3-150,300 ,Om4
• Fiber Type2：G657A, G657A2, G652D
• Trademark：YDA or OEM
• Origin：Ningbo, China
• HS Code：8544700000
• Production Capacity：2500, 000metres,Week

Basic Info.

Model NO. Cable ADSS Jacket PVC/LSZH/PE/TPU/... Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100n<1000n Operating Temperature -20ºC~ +60ºC Applications FTTX Related Products Patchcords and Pigtails Cable Type ADSS Fiber Type1 50/125,62.5/125,Om3-150/300 ,Om4 Fiber Type2 G657A, G657A2, G652D Trademark YDA or OEM Origin Ningbo, China HS Code 8544700000 Production Capacity 2500, 000metres/Week

Product Description

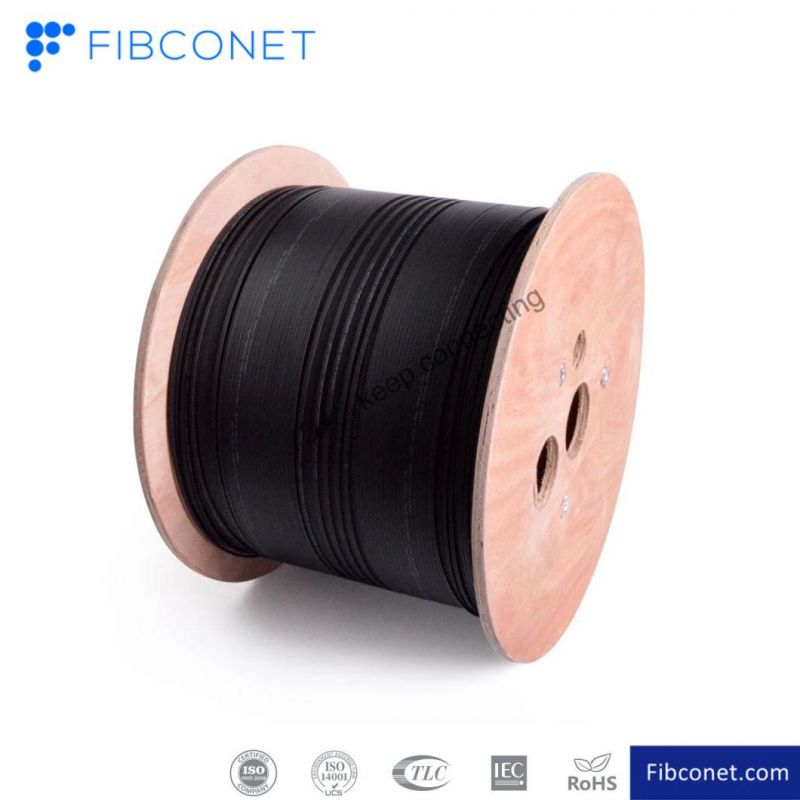

FTTH ADSS Fiber Optic Outdoor Cable 12-144 cores cable with fast connector

ADSS Fiber Optic Outdoor Cable





Description:

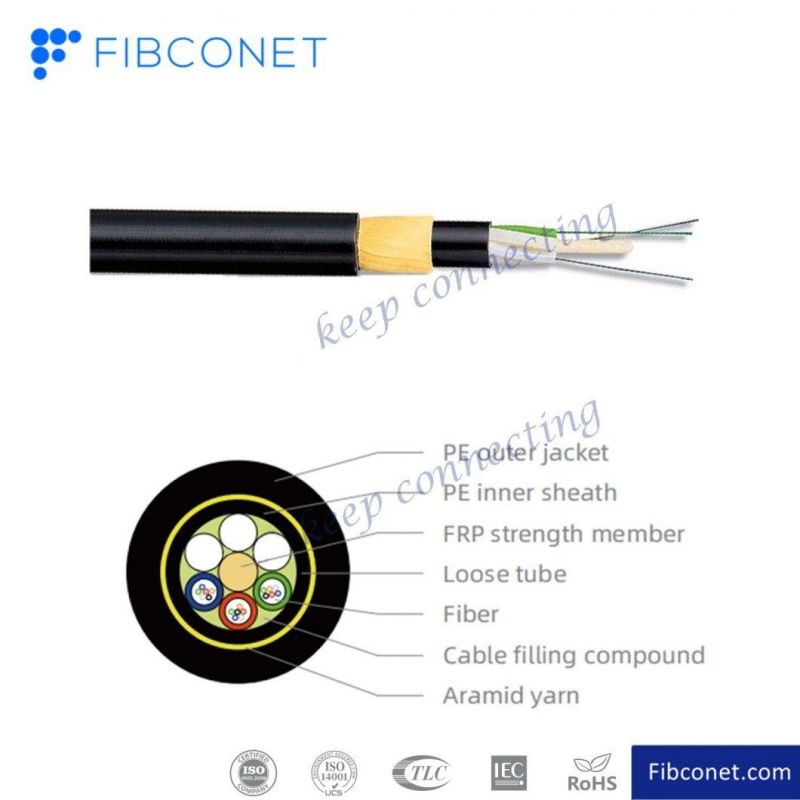

All Dielectric Self-supporting Aerial Cable is loose tube stranded. 200um or 250um fiber , is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Features:

• Precise optical fiber length control, ensure that the cable in the design load optical fiber does not force.
• Precise control of aramid fiber pay-off tension and twisted pitch, improve the fiber optic cable tensile resistance.
• Reasonable production process makes the outer sheath, aramid fiber, combined closely with the cable conductor, cable structure more compact.
• Use electric mark excellent material, fiber in high induction electric potential under the environment of more security.

Applications:

• The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines 10kv and 35kv, PE outer sheath is applied
• FOR power lines 110kV and 220KV, AT outer sheath is applied
• The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans

Specification:

Item	Unite	Parameter
Fiber No.		12
Cable Diameter	mm	12.0±0.2
Cable Weight	Kg/ Km	120±10
Outer Sheath Thickness	mm	1.9±0.1
Inner Sheath Diameter	mm	7.9±0.1
Loose Tube Diameter	mm	2.0±0.1
Fiber No./Tube		6
Loose Tube No.		2
Filler No.		4
FRP Diameter	mm	2.0±0.1

1.Q: The History of our factory?

A: In 2000, Fibconet entered the communications industry and began to make adapters. It accumulated funds to invest in jumper production in 2006, and increased the optical splitter workshop in 2009. Fibconet won the national high-tech industry in 2013, and sold over 15 million US dollars in 2015, and began to explore foreign markets.

2.Q: The location of our factory?

A: Our factory is located in Ningbo, Zhejiang, and our new factory has also been put into production, located in the Northeast (Jilin Province).

3.Q: Occupied area for our factory ?

A: The construction area of our factory is about 23,000 square meters, including 8000 square meters in Fenghua Plant and 15,000 square meters in Northeast China.

4.Q: What is the quality for your product?

A: All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

5.Q:What's your best price for your passive fiber optic product?

A: Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

6.Q:How do you arrange the shipping?

Solution a:  Fibconet take care of everything.  Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution b:  Clients assign a Shenzhen logistic company to do the shipping, Fibconet follow the company's instructions and finish the shipping.

7.Q:How can you guarantee the delivery time?

A:To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8.Q:What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.

Please always feel free to contact us for any questions, it's our honor to be on service of you
