Eib/Knx 1 Quad 20AWG Bus Cable
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable
- Conductor Material:Copper
- Cover Material:PVC
- Material Shape:Round Wire
- Conductor Type:Stranded
- Wire Core Material:Bare Copper Wire
Base Info
- Certification:CE, ISO, RoHS
- Color:Gray, White, Black
- Inner Conductor:20AWG Bc
- Nom. Thick:1.4mm
- Export Length:100m,Roll, 5000m,Drum
- Pairs:4 Pairs
- Transport Package:Carton Box, Pallet
- Specification:2X2*0.8mm CU LSZH
- Trademark:Risun
- Origin:Zhejiang, China
- HS Code:8544491100
- Production Capacity:30000boxes,Month
Description
Basic Info.
Certification CE, ISO, RoHS Color Gray, White, Black Inner Conductor 20AWG Bc Nom. Thick 1.4mm Export Length 100m/Roll, 5000m/Drum Pairs 4 Pairs Transport Package Carton Box, Pallet Specification 2X2*0.8mm CU LSZH Trademark Risun Origin Zhejiang, China HS Code 8544491100 Production Capacity 30000boxes/MonthProduct Description

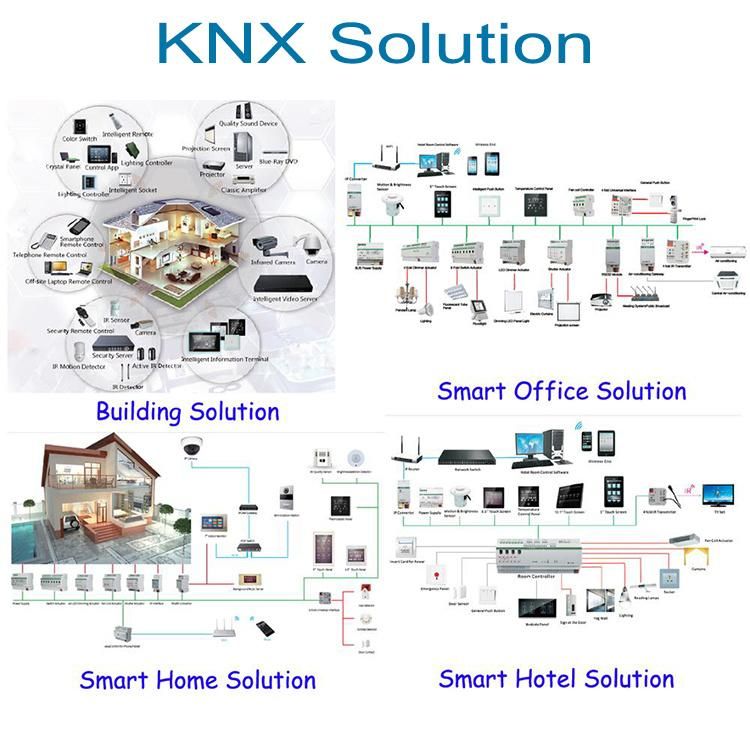

EIB/KNX 1 Quad 20AWG BUS CABLEEIB/KNX is a Shielded Bus Cable which meets the requirements of the "European Installation Bus" standard. It is widely used in Building System Technology to control Lighting, Ventilation, Heating, Air-conditioning,Blinds, Time Management,Energy Management and locking System. The cable also powers the sensors used.
The cables can be used in dry, wet or damp areas either inside or outside (if protected form direct sunlight), but can't be directly buried.

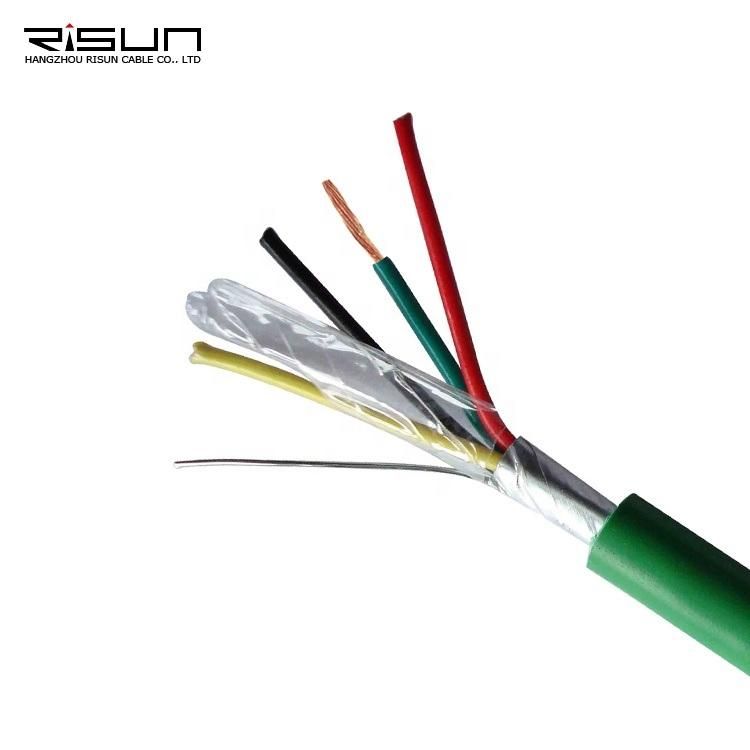

Product Construction
Conductor:
20AWG (0.8mm )Annealed Solid bare copper
Insulation:
1.45mm PVC or PE
Color code: (Black,Red,White,yellow)
Cores twisted into a quad
Rip cord
Yes
Screen
AL-polyester Tape Foil (100% coverage)
Drain wire
Solid Tinned Copper (0.4mm)
Jacket:
PVC OR LSZH
Suitable for use from -20ºC to +75ºC
Evey 2 feet / 1meter sequential marking
Color: Green RAL6017
Rated Voltage
300V
RoHS Compliant

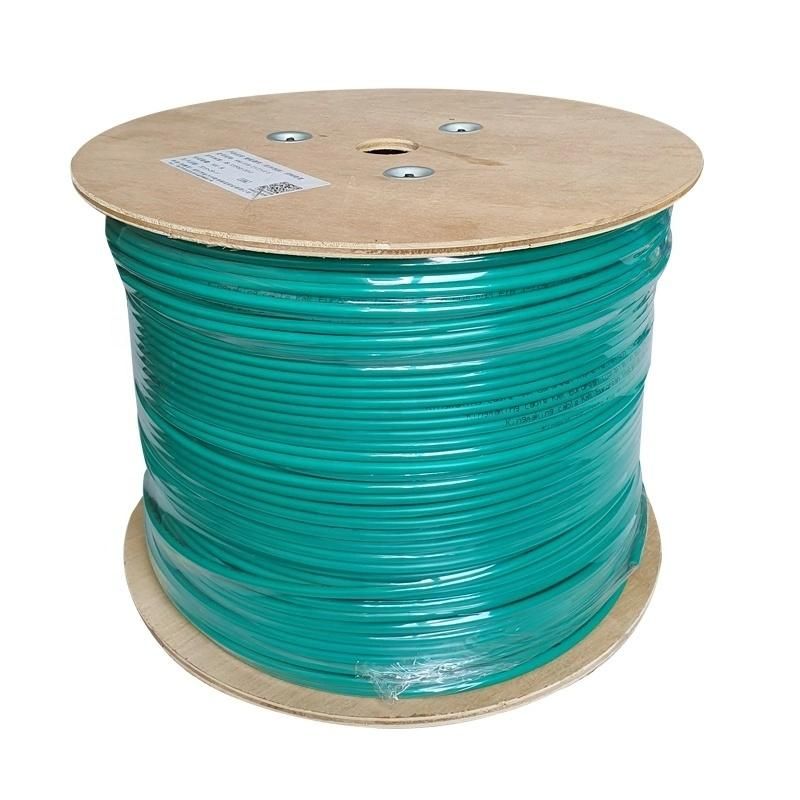

Packaging:
305mtr/wooden reel/CTN
Cable printing:
KNX EIB BUS Cable Quad core 20 AWG Shielded PVC / LSZH ***M
Application:

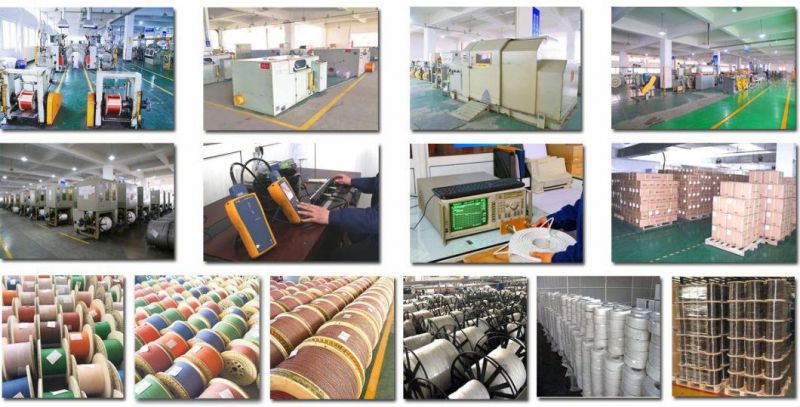

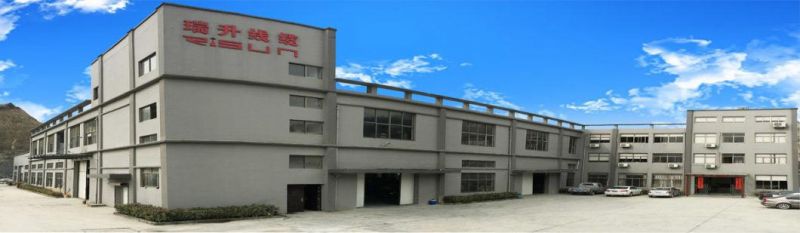

Company Introduction
RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

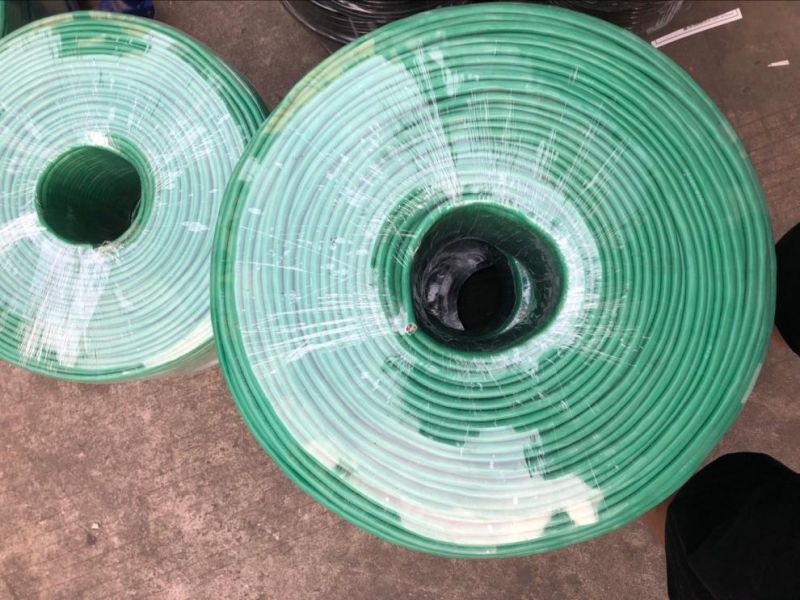

Packing:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
