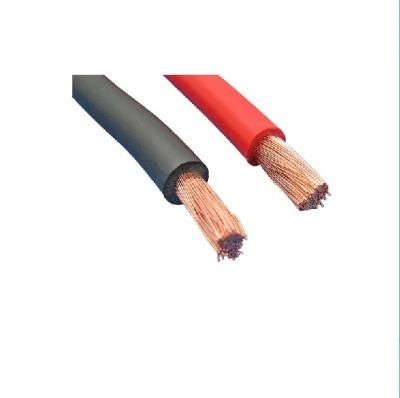

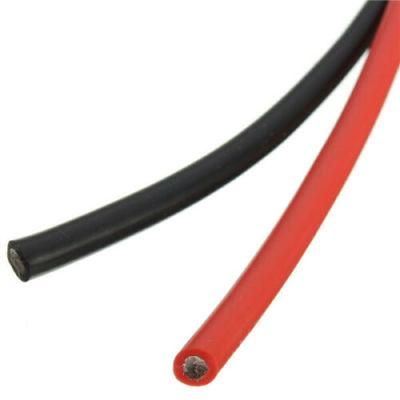

High Temperature Resistant ETFE Insulation Tinned Copper Wire UL1670
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：for General Purpose Internal Wiring of Appliance
- Conductor Material：Copper
- Insulation Material：ETFE
- Material Shape：Round Wire
Base Info
- Model NO.：UL1670
- Certification：ISO9001, CE, UL, RoHS, Reach
- Brand：B&T
- According to：UL Subject758, UL1581, CSA22.2 No.210.2
- Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
- Performance：for Internal Wiring of Appliance
- Conductor：Silver,Nickel Plated Copper
- Color：Could Be Customized Color
- Delivery Time：7-15days
- Products Certification：UL,cUL,RoHS, Reach
- Package：Coil or Spool Packing
- Factory Certificate：ISO9001:2008 Standard
- Capacity：300,000km Annual
- Transport Package：as Per Required
- Specification：30-14 AWG
- Trademark：B&T
- Origin：Xiamen, Fujian
- HS Code：8544492100
- Production Capacity：300, 000km
Description
Overall Diameter
(mm)Nom. Min. Nom. Tol. 14 19/0.361 8.96 1.85 0.13 0.10 2.10 ±0.10 16 19/0.287 14.60 1.50 0.13 0.10 1.75 ±0.10 18 19/0.235 23.20 1.18 0.13 0.10 1.45 ±0.10 20 19/0.19 36.70 0.95 0.13 0.10 1.20 ±0.10 22 19/0.15 59.40 0.76 0.13 0.10 1.02 ±0.10 24 7/0.20 94.20 0.60 0.13 0.10 0.85 ±0.10 26 7/0.16 150.00 0.48 0.13 0.10 0.75 ±0.10 28 7/0.127 239.00 0.38 0.13 0.10 0.65 ±0.10 30 1/0.254 361.00 0.254 0.13 0.10 0.52 ±0.10
(mm)
