• Model NO.：JBS0202H
• Cable Entrance：2-in,2-out
• Max. Fiber Capacity：144fibers
• Transport Package：Carton + Pallet
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：85477000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. JBS0202H Cable Entrance 2-in/2-out Max. Fiber Capacity 144fibers Transport Package Carton + Pallet Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 85477000 Production Capacity 5000PCS/Month

Product Description

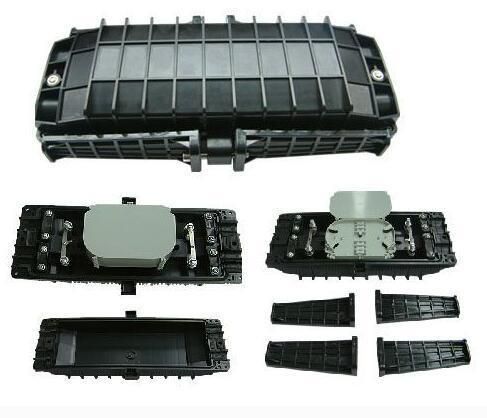

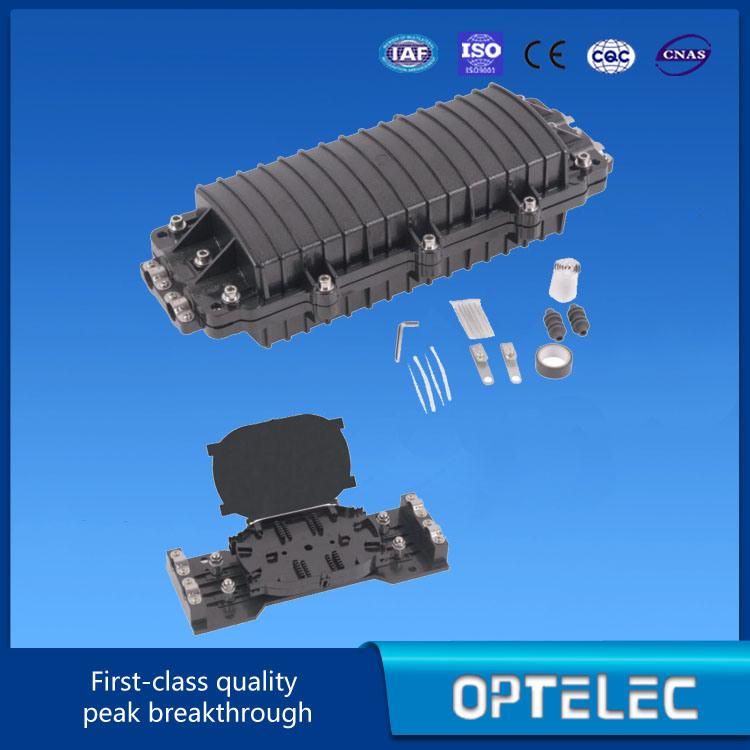

High Quality Outdoor Waterproof Fiber Optic Closure Splice Joint Box Horizontal




Features:
Type: 2 Inlet / 2Outlet
External dimensions: 51x22cm
Max. Capacity: 144 cores
Weight: 3kgs
Description:
Innovative design is an erect and horizontal type with one hinge in one side and open in another side. Our fiber splice enclosure is the most reliable fiber splice closure with the simplest installation in the world. The fiber splice closure is suitable for protecting fiber cable splices in straight through and branching applications.

Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic ABS or PC by
Numerical control equipment; Therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet
Radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during
Pulling, compressing, and impacting, bending, tensioning, axial tensioning.

Our fiber splice enclosure ensures long-term reliability and usage under ambient temperature from -40degC to +85degC

Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, metal hook, seal fittings, numeral bar, retaining ring

Purpose: Aerial, direct-burying, wall-mounting, Pipeline laying way.

Material: ABS or PC

Atmospheric pressure: 70~106KPa

Insulation resistance>= 2X104Mohm

Span-life: 30 years.

Model	Fiber capacity	Cable entrance	Net weight(kg)	Material	Installation
JBS02012-P	12 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02024-P	24 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02048-P	48 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02096-P	96 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS03012-P	12 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03024-P	24 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03048-P	48 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03096-P	96 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS04012-P	12 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04024-P	24 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04048-P	48 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04096-P	96 fibers	4ports	2	PC (Polycarbonate)	Pole
