• Model NO.：H05VVC4V5-K
• Material Shape：Round Wire
• Range of Application：Control, Measur and Signal Technology
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：US $0.5-5, Meter
• Trademark：FengDa
• Origin：Tianjin, China
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Basic Info.

Model NO. H05VVC4V5-K Material Shape Round Wire Range of Application Control, Measur and Signal Technology Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Feiya Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

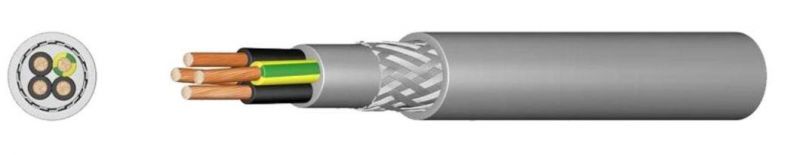

Product Description

Application
It is used as a screened termination and connection cable in the control, measuring and signal technology. It is suitable as a signal and impulse cable for control and inspection of industrial plants, machinery, and working processes.

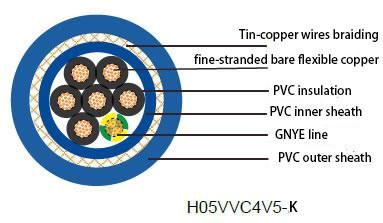

Product DescriptionConductor:  fine-stranded bare flexbile copper
Product Standard: DIN VDE-0281-13, DIN EN 60228 class 5(construction)
Conductor Insulation:PVC
 Inner Jacket: PVC
Shield: Tinned copper braid shielding
Outer jacket material:PVC
Rated voltage: 2000v
Tempreture Range: -5ºC till +70ºC(in motion)
                                 -40ºC till +70ºC
 Bending radius: Min 12.5 times diameter(one time/fixed)
                             Min 15 times diameter(in motion)

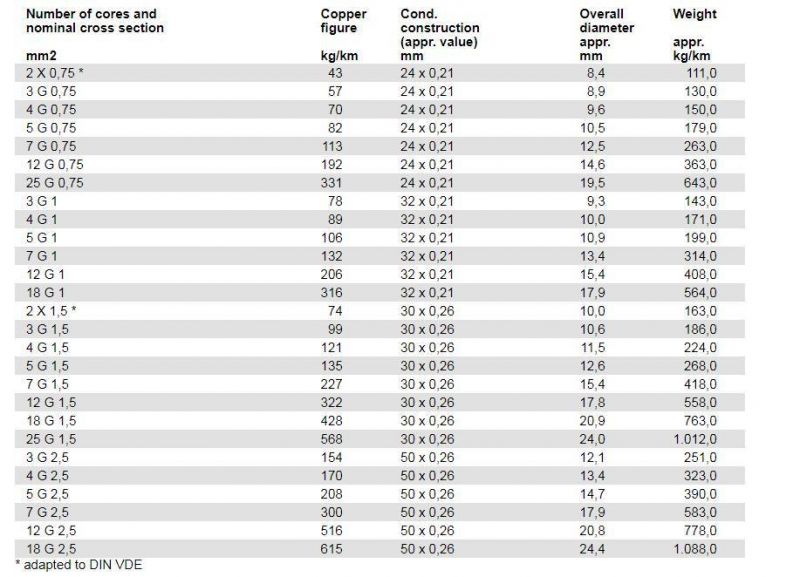

 Technical data:
