• Model NO.：PV1-F H1Z2Z2-K
• Material Shape：Round Wire
• Range of Application：Solar
• Certification：ISO9001, CE, UL, CCC, RoHS
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：US $0.5-5, Meter
• Trademark：FengDa
• Origin：Tianjin, China
• HS Code：8544492100
• Production Capacity：5, 000, 000km,Year

Basic Info.

Model NO. PV1-F H1Z2Z2-K Material Shape Round Wire Range of Application Solar Certification ISO9001, CE, UL, CCC, RoHS Transport Package Wooden Box Packing or Pallet Shipping Containers Specification US $0.5-5/ Meter Trademark FengDa Origin Tianjin, China HS Code 8544492100 Production Capacity 5, 000, 000km/Year

Product Description

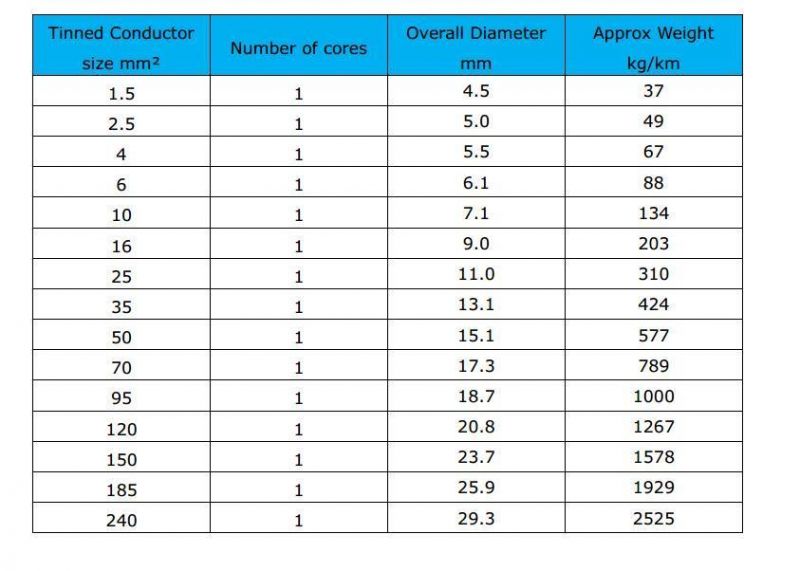

Solar PV cable
Type: PV1-F
Standard: 2 PFG 116908-2007
Halogen free: EN 50267 / IEC 60754
Smoke Density: light transmittance acc. to EN 50267 / IEC 61034
Conductor: Electrolytic annealed flexible tinned copper conductor
Insulation: Halogen Free, Thermosetting insulated
Sheath: Halogen Free, Thermosetting Sheath
Rate Voltage: 0.6/1kV AC;1800V DC
HCI Content: <0.5%
pH: >4.3
Smoke Density: light transmittance >60%
Ambient Temperature:
-40 to 90°C; Maximum conductor temp: 120°C
Maximum short circuit temp: 250° C (max 5s).
Short Circuit temp: 250°C

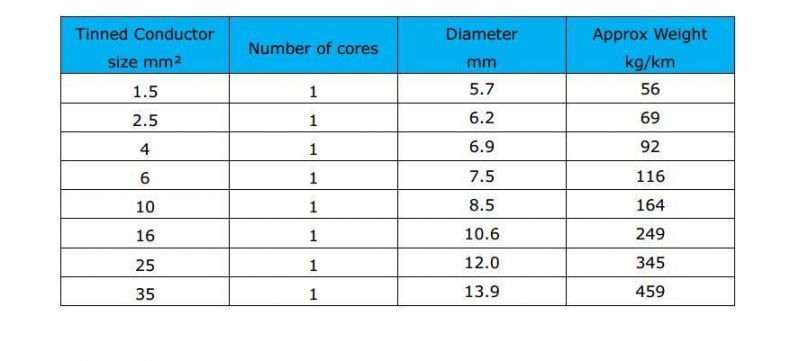

Solar cable
Type: H1 Z2Z2-K
Standard: EN 50618
Halogen free: EN 50267 / IEC 60754
Smoke Density: light transmittance acc. to EN 50267 / IEC 61034
Conductor: Electrolytic annealed flexible tinned copper conductor
Insulation: Halogen Free, Thermosetting insulated
Sheath: Halogen Free, Thermosetting Sheath
Rate Voltage: 0.6/1kV AC;1800V DC
HCI Content: <0.5%
pH: >4.3
Smoke Density: light transmittance >60%
Ambient Temperature:
-40 to 90° C; Maximum conductor temp: 120°C
Maximum short circuit temp: 250°C (max 5s).
Short Circuit temp: 250°C
