• Model NO.：aluminum Conductor 1,4.5 and 4x0.5mm cu wire PE In
• Material Shape：Round Wire
• Range of Application：LSOH
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Hongda
• Product Description：Aluminum Conductor 1,4.5 and 4X0.5mm Cu Wire PE in
• Key Word：UV Resistance Service Cable
• Product Type：Concentric Cables
• Transport Package：Wooden Drum
• Specification：aluminum Conductor 1,4.5 and 4x0.5mm cu wire PE In
• Trademark：hongda cable
• Origin：Henan China
• HS Code：8544200000
• Production Capacity：500000

Basic Info.

Model NO. aluminum Conductor 1/4.5 and 4x0.5mm cu wire PE In Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, CCC, RoHS, VDE Brand Hongda Product Description Aluminum Conductor 1/4.5 and 4X0.5mm Cu Wire PE in Key Word UV Resistance Service Cable Product Type Concentric Cables Transport Package Wooden Drum Specification aluminum Conductor 1/4.5 and 4x0.5mm cu wire PE In Trademark hongda cable Origin Henan China HS Code 8544200000 Production Capacity 500000

Product Description

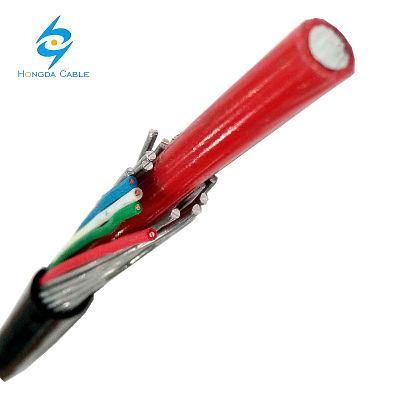

aluminum Conductor 1/4.5 and 4x0.5mm cu wire PE Insulated of Pilot UV Resistance Service Cable

Tags: Copper Concentric BS 7870 PVC Cable, Aluminum Concentric BS 7870 PVC Cable, Power, PVC.

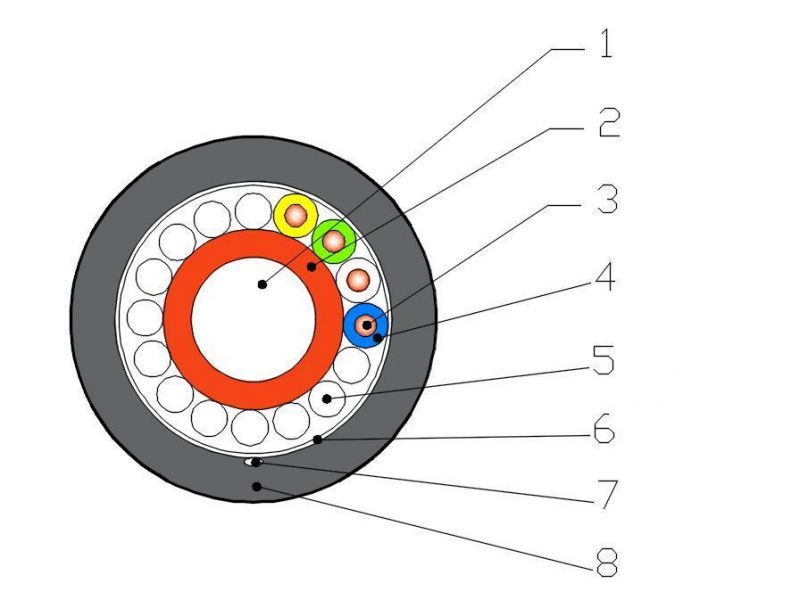

1.Phase conductor:Solidal  16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black  )

ITEM	SPECIFICATION (PARTICULARS	UNIT	Data
1	Insulation Voltage	V	600/1000
2	Conductor size	mm²	16
3	Phase Conductor material	N/A	Hard drawn Aluminium conductor -Single core
4	Insulation Material	N/A	XLPE
5	Earth wire material type	N/A	Bare Aluminium conductor
6	Rip Chord	N/A	Nylon
7	Reference Standards	N/A	SANS 1507, NRS 063, IEC 60502/228 ESI 09-7
8	Phase conductor Insulation thickness	mm	1.0
	Construction (Phase conductor)
9	Structure	mm	Single core
10	Insulation Thickness	mm	1.0
11	Reference Insulation O.D	mm	7.1
	Construction (Earth Wire)
12	Structure	Numbers	12
13	Wire structure	N/A	12/1.7
	Construction (Pilot/Communication Wires)
14	Structure	mm²	4X0.5
15	Reference Insulation O.D	mm	1.13
16	Conductor material	N/A	Copper
17	Insulation Material	N/A	LLPDE/XLPE
18	Number of conductors	Numbers	4
	Construction (Sheath)
19	Nominal Thickness	mm	1.6
20	Reference Insulation O.D	mm	14.5
21	Sheath Material	N/A	LLPE Black UV stable/HQ PVC
	Insulation material colours
22	Phase conductor	N/A	Red
23	Pilot wires (04)	N/A	Red, Green, White, Blue
24	Sheath	N/A	Black
	Performance (Electrical Characteristics)
25	Phase Conductor - Maximum resistance at		≤1.91
26	Earth Wires - - Maximum resistance at		≤7.40
27	Pilot Wires - Maximum resistance at 20		≤36

Hongda Cables supplies a comprehensive range of concentric and split concentric cables manufactured in accordance with standard BS7870. These aluminium and copper cables are UK Power Network (UKPN) approved and are devised for use by Distribution Network Operators (DNOs) to provide the final connection to residential properties. Additional functionality includes use for sub-main distribution and within high-rise buildings and street lighting systems.

The choice between Concentric and Split Concentric cable is determined by the supply type: TN-C-S supply for Concentric and TN-S supply for Split Concentric. These are LSZH cables (low smoke zero halogen) with the outersheath suitable for installations requiring a reduction to the risk to human life or sensitive equipment in the event of fire
