XLPE Insulated Armoured Marine Cable
Henan Jiapu Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Marine
- Conductor Material：Copper
- Insulation Material：XLPE
- Transport Package：Wooden Drums
Base Info
- Model NO.：YJV,YJV22,YJV32
- Specification：any one
- Trademark：Jiapu
- Origin：Henan China
- HS Code：4101962331
- Production Capacity：5000km,Month
Description
TYPE
NAME
Main Application
CU core
AL core
YJV/YJY
YJLV/YJLY
XLPE insulated, PVC/PE sheathed power cable
For laying indoor, tunnel, canal and underground. Unable to bear external mechanical forces, but bear the traction force during laid
YJV22/YJV23
YJLV22/YJLV23
XLPE insulated, steel tape armored, PVC/PE sheathed power cable
For laying indoor, tunnel, canal and underground. Able to bear external mechanical forces, but unable to bear large pulling force
YJV32/YJV33
YJLV32/YJLV33
XLPE insulated, thin steel wire armored, PVC/PE sheathed power cable
For laying in shaft, water underground will large difference of level. Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43
YJLV42/YJLV43
XLPE insulated, thick steel wire armored, PVC/PE sheathed power cable
For laying in water and seabed. Able to bear positive pressure and pulling force

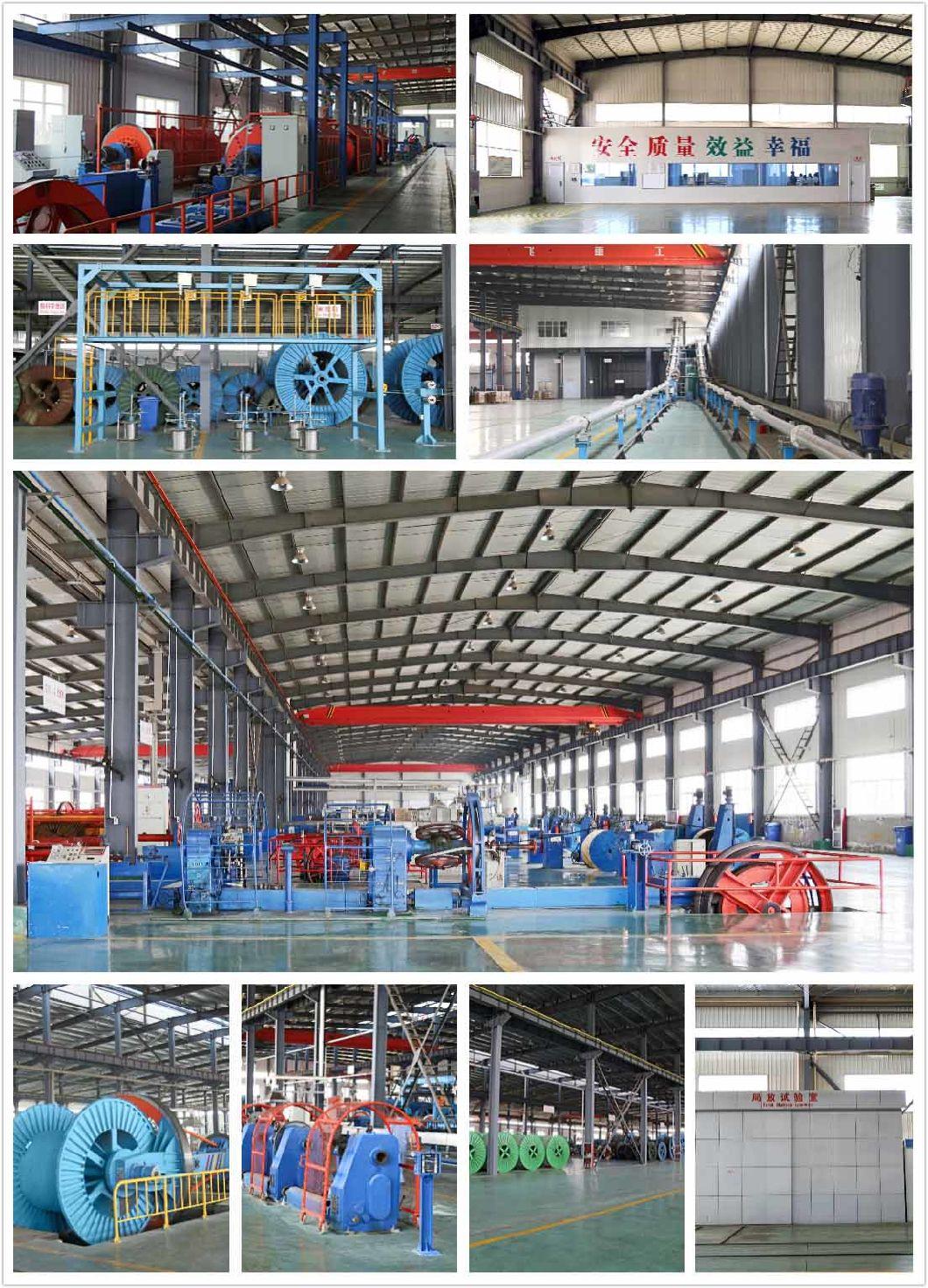

Workshop:

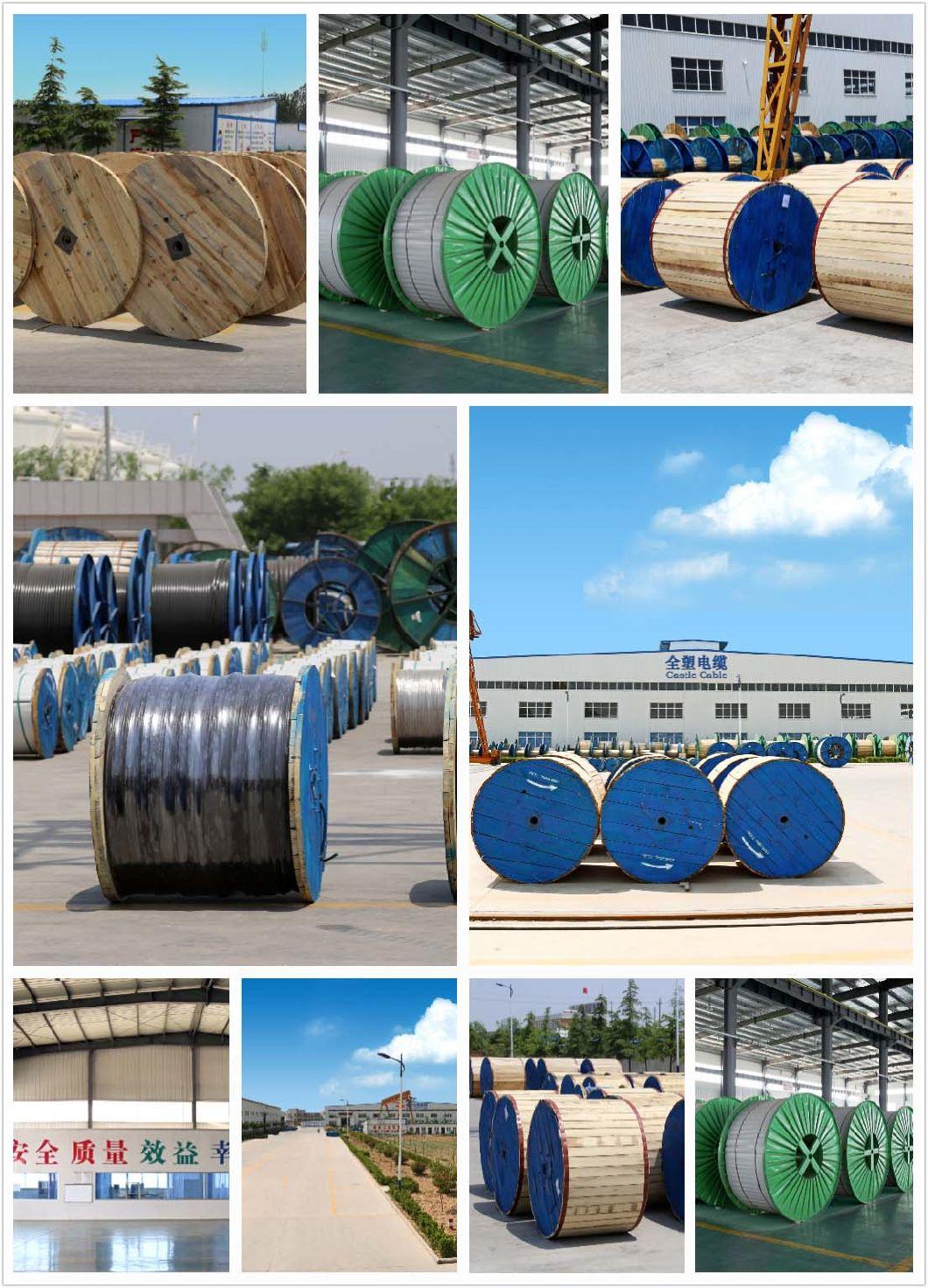

Shipment:
Customer:
Certification:
FAQ:
1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China
2. What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
7. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
8. Do you supply the customers with installation service in foreign country ?
We don't have professional installation teams in foreign country.But if that is necessary, we will recommend our partners to cooperate with you.
