• Model NO.：BV BVR
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Class of Conductor：5 or 6
• Rated Voltage：450,750 V
• Manufacture Standard：IEC 60227
• Transport Package：100m Per Roll, 100FT Per Roll
• Specification：0.75mm to 2.5mm2 4mm
• Trademark：Hongda
• Origin：China
• HS Code：8544492900
• Production Capacity：40km,Day

Basic Info.

Model NO. BV BVR Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC, SGS Brand Hongda Class of Conductor 5 or 6 Rated Voltage 450/750 V Manufacture Standard IEC 60227 Transport Package 100m Per Roll, 100FT Per Roll Specification 0.75mm to 2.5mm2 4mm Trademark Hongda Origin China HS Code 8544492900 Production Capacity 40km/Day

Product Description

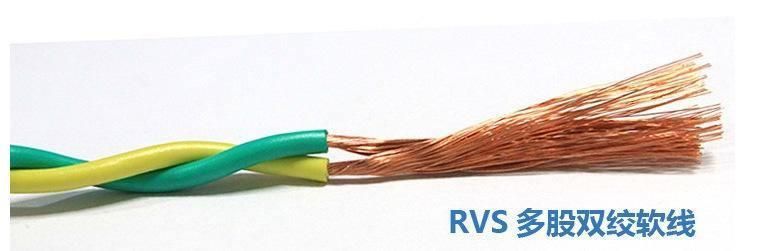

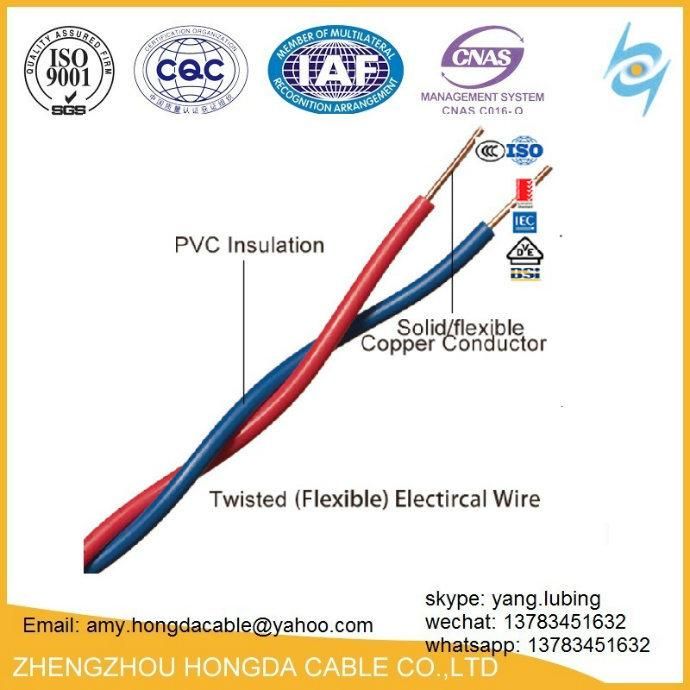

2.5mm 4mm flexible copper PVC insulated BV BVR building electric wire








Specifications
bv bvv rv electrical PVC insulated copper building construction cables wire 2.5mm
1.Certificate: SGS,ISO,CCC
2.Standard: IEC60227
3.High quality

Applications:
The product is fit for ac rated voltage 450/750 and below of domestic electrical applicances of smaller size motoriace tools of instruments of varous meters and motorized lighting installations.
This prduct is suitable to be used in household appliances ,electric tools and lighting in home , office and similar indoor place where request flexible wire

Technological property:
1)If finished insulation core and finished power line is pot into warm water20+/-5 °c for an hour, they will be able to bear stipulated as soaked, soaked voltage test as stated in table.
2)Wire has excellent electric insulation property, mechanical property, non-inflammability. So it is safety and convenience in using the producters name. The model and the voltage should be cleany printed on the surface of the finished power line of insulation and sheath delivery requirements.

Nominal Area	Insulated Thickness	Sheathed Thickness	Approx. dia of cable	Cable approx weight	D.C Resisance Of conductor 20°C(Ω/km)	Least Insulates resistance
mm²	mm	mm	mm	(kg/km)	(Ω/km)	mΩ/km
2×0.75	0.6	0.8	6.6	50.8	39.0	0.011
2×1.0	0.6	0.8	7.0	59.2	19.5	0.010
2×1.5	0.7	0.8	8	78.6	13.3	0.010
2×2.5	0.7	1.0	9.4	114.1	7.98	0.009

Factory information:

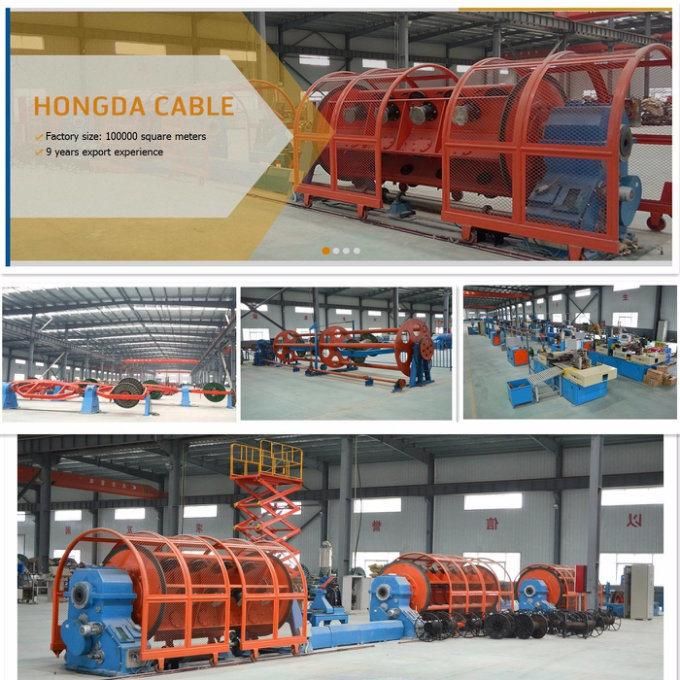

Hongda cable Co., Ltd. is one of the most professional cable & wire producer, which was founded in 1988, have exported for 9 years, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co.,  The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc



Our advantages
1.  With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2.  Good cost-control system, with highly-competitive prices;
3.  Strong and Professional R&D team to meet your specific needs;
4.  Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM

Packing:


*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Any needs or question, please contact me Mobile:+86-13783451632 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
