Cable Unipolaire Alu 1X630mm2 - 18/30 (36) Kv NFC 33-226

YIFANG ELECTRIC GROUP INC.

Application：Construction, Underground, Industrial, Power Station
Voltage：High Voltage Cable
Current：AC Cable
Insulation Material：XLPE
Sheath Material：PE
Material Shape：Round Wire

Base Info

Wire Core Material：Aluminum
Certification：ISO, CE
Model：Yjly62
Brand：Yifang
Standard：NFC 33-226

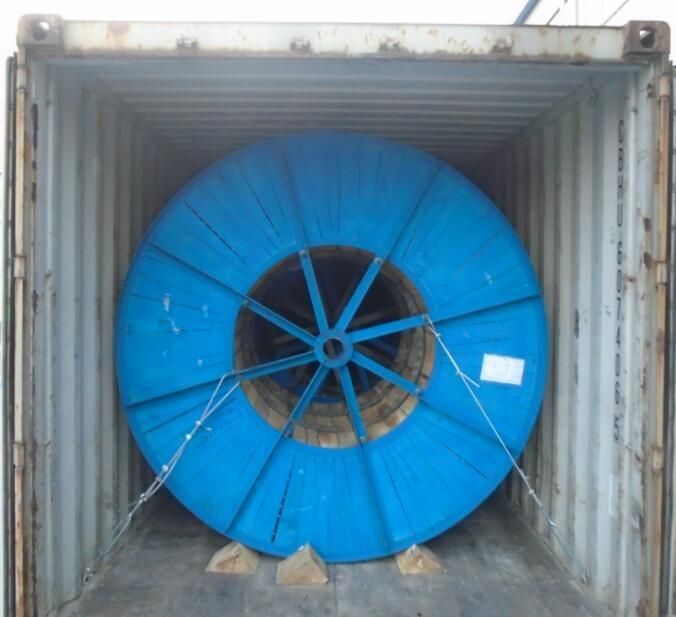

Transport Package：Steel-Wooden Drum
Trademark：Yifang
Origin：China
Production Capacity：500km Per Month

Description

Basic Info.

Wire Core Material Aluminum Certification ISO, CE Model Yjly62 Brand Yifang Standard NFC 33-226 Transport Package Steel-Wooden Drum Trademark Yifang Origin China Production Capacity 500km Per Month

Product Description

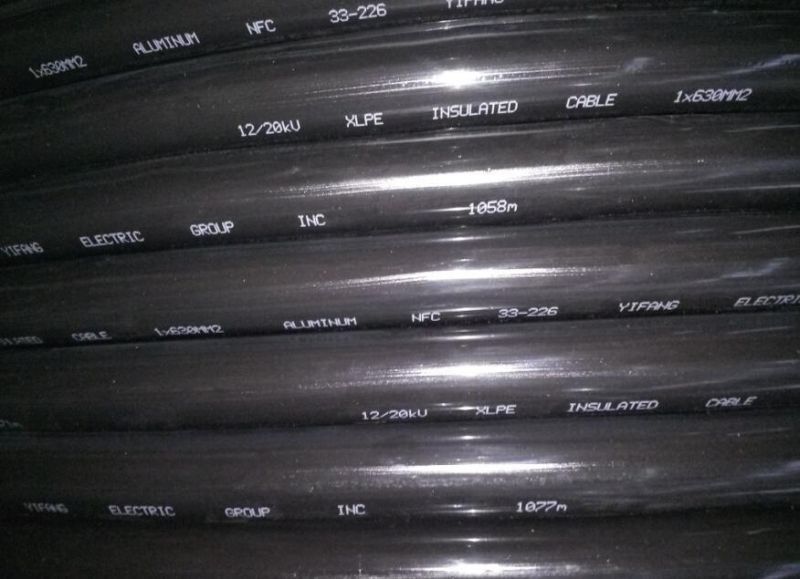

Cable unipolaire Alu 1x630mm2 - 18/30 (36) KV NFC 33-226

Application:

The cable can be used for overhead power transmission . The cable can bear external mechanical pressure and moderate pulling force with different design , such as metallic armour , water proof material , etc.

Standards: NFC 33-226

Rated voltage:12/20KV (24KV), 18/30KV (36KV)

Cable construction:

Conductor: Aluminum

Number of cores: 1

Conductor screen: Semi-conducting compound

Insulation:XLPE

Insulation screen: Strippable semi-conducting compound ,longitude with grooves and sealing power over it

Metallic screen layer: Longitude aluminum plastic tape

Outer sheath: PE, HDPE, LDPE, LLDPE

Color: black or as your request

Conductor Cross-section area is from 25mm2 to 630mm2

Main exporting market: African countries
