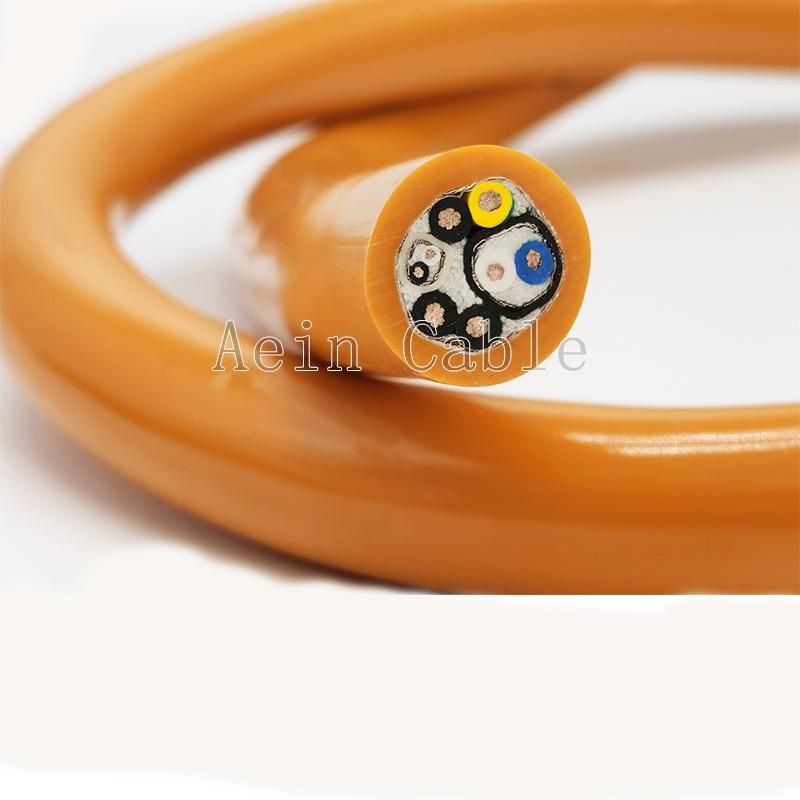

52DSL Sk-C-PUR Cable for Drag Chain Applications Low Capacity

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PUR
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：52DSL SK-C-PUR Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Single core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item52DSL SK-C-PUR Cable For Drag Chain ApplicationsConductorBare copper StrandInsulationPVCShieldSignal pair/control pair: each pair shielded with tinned copper braid, optic. cover. appr. 85%Overall StrandingCores & elements stranded togetherShieldCopper braid tinded, cover. appr. 85%Outer SheathPURCore NumberMulticores (As client's requirement)Rated Voltage Power- & control cores: IEC: 0,6/1kV; UL/CSA: 1kV; signal pair: max. 300VTemperature RangeOperat. temp. fixed min/max -50°C / +80°C
Operat. temp. moved min/max -40 °C / +80 °CColorOptionalSpecial Features• largely resistant to grease, coolant fluids and lubricants
• resistant to oil acc. to DIN EN 60811-2-1
• silicone-free (by productiuon)
• space and weight saving
• UV-resistant, halogen-free, low abrasion
• with the 1.000 V UL approval, the parallel laying with other cables that are equally approved for 1.000 V, is permittedApplicationLoop Detector Cable is used to measure and control traffic flow. Typical applications are for traffic control signals, safety cameras, variable speed control systems, flow monitoring and access control.
