• Model NO.：Conductor Venus 61,3.75 AAC
• Wire Core Material：Aluminum or Aluminum Alloy
• Certification：ISO, CCC
• Model：ACSR
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：Venus 61,3.75
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：76149000
• Production Capacity：50 Kilometer,Month

Basic Info.

Model NO. Conductor Venus 61/3.75 AAC Wire Core Material Aluminum or Aluminum Alloy Certification ISO, CCC Model ACSR Brand OEM Transport Package Wooden Drum Specification Venus 61/3.75 Trademark OEM Origin China(Mainland) HS Code 76149000 Production Capacity 50 Kilometer/Month

Product Description

Description:
Consisting of one or more strands of 1350 aluminum alloy wire, AAC is a flexible and relatively lightweight conductor.  Compared to the similar ACSR, a steel reinforced aluminum conductor, this conductor provides more versatility and mobility while ACSR provides a higher level of conductor strength.

Applications:
It can be used in low and medium voltage overhead lines. It's commonly used in urban areas because of its ability to carry significant voltages over short distances.  The long-lasting, corrosion resistant qualities of aluminum make this conductor a popular choice for use in coastal areas as well as for use in the railway and subway industries.  Shipyards and offshore construction sites benefit from the conductor's durability.  This conductor can be used for most overhead transmission duties when conductor strength is not a factor.  The conductor can also be used for primary and secondary distribution applications.

Specifications:
All Aluminum Conductor meets or exceeds the specifications set forth by the American Society for Testing and Materials:
• B-230 for Aluminum Wire and 1350-H19 grade aluminum for Electrical Purposes.
• B-231 standards, calculated by using the wire's nominal diameter and minimum average strength for Aluminum Conductors and Concentric-Lay-Stranded categories.

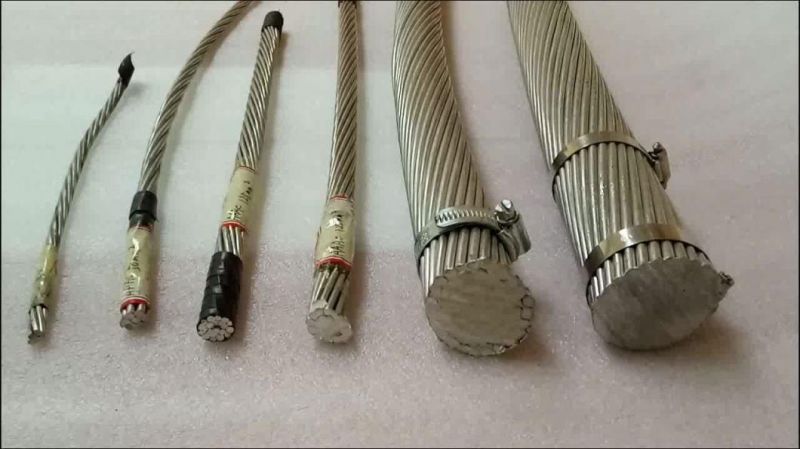

Construction:
• Conductors - AAC is constructed of one or more aluminum alloy 1350-H19 wires.  Bare EC grade strands are hard drawn wrapped around a central wire.
• Stranding - Helically stranded.

AAC 1350 All Aluminum Conductor Venus 61/3.75 AAC Wire Cable specifications

Part Number	Conductor Code	Stranding and Wire Diameter (No/mm)	Nominal Overall Diameter (mm)	Cross Sectional Area (mm2)	Approx. Mass (kg/km)	Breaking Load (kN)	Modulus of Elasticity (GPa)	Coefficient of Linear Expansion (x10-6/oC	DC Resistance (Ω/km)
AAC-7/2.50	Leo	7/2.50	7.5	34.36	94.3	5.71	65	23	0.833
AAC-7/2.75	Leonids	7/2.75	8.25	41.58	113	6.72	65	23	0.689
AAC-7/3.00	Libra	7/3.00	9	49.48	135	7.98	65	23	0.579
AAC-7/3.75	Mars	7/3.75	11.3	77.28	211	11.8	65	23	0.37
AAC-7/4.50	Mercury	7/4.50	13.5	111.3	304	16.9	65	23	0.258
AAC-7/4.75	Moon	7/4.75	14.3	124	339	18.9	65	23	0.232
AAC-19/3.25	Neptune	19/3.25	16.3	157.6	433	24.7	65	23	0.183
AAC-19/3.50	Orion	19/3.50	17.5	182.8	503	28.7	65	23	0.157
AAC-19/3.75	Pluto	19/3.75	18.8	209.8	576	31.9	65	23	0.137
AAC-37/3.00	Saturn	37/3.00	21	261.6	721	42.2	64	23	0.11
AAC-37/3.25	Sirius	37/3.25	22.8	307	845	48.2	64	23	0.094
AAC-19/4.75	Taurus	19/4.75	23.8	336.7	924	51.3	65	23	0.0857
AAC-37/3.75	Triton	37/3.75	26.3	408.5	1120	62.2	64	23	0.0706
AAC-61/3.25	Uranus	61/3.25	29.3	506.1	1400	75.2	64	23	0.0573
AAC-61/3.50	Ursula	61/3.50	31.5	586.9	1620	87.3	64	23	0.0493
AAC-61/3.75	Venus	61/3.75	33.8	673.4	1860	97.2	64	23	0.0429

  Packing & Shipping







Any problem and inquiry pls contact with Tina
Phone number: +86-15737156317
