• Transport Package：Wooden Drum
• Specification：1-240mm2
• Trademark：NANDIAN
• Origin：Guangzhou China
• HS Code：8544492100

Basic Info.

Transport Package Wooden Drum Specification 1-240mm2 Trademark NANDIAN Origin Guangzhou China HS Code 8544492100

Product Description

Locomotive Cable Made in China:

Scope of application
It is suitable for electrical distribution systems, control systems, and  electrical equipment cables for railway passenger car wire and cable with rated voltage 3kv or lower in signal system.Especially suitable for narrow spaces and occasions with special requirements such as low smoke, halogen free, flame retardant, etc.

Use characteristics

1. Rated voltage (AC) is divided into 500V, 700V, 1500V, 3000V
2. When the cable is used for a long time, the maximum working temperature of the core does not exceed 125⁰C, and the temperature of conductor shall not exceed 250⁰C at short circuit for 5 seconds.
3. Minimum ambient temperature of the cable:

The Minimum ambient temperature of non-high-strength thin-walled railway passenger car cable is -40⁰C,
The Minimum ambient temperature of high-strength thin-walled railway passenger car cable is -60⁰C.    4.Non-high-strength thin-walled railway passenger car cables are allowed to be used in oil-contaminated environments.      5.Allowable bending radius for cable laying:When the cable diameter is less than or equal to 10mm, the allowable bending radius of the cable laying is not more than twice the outer diameter of the cable.
cable diameter≤10mm, allowable bending radius≤2 times the outer diameter of the cable,
10mm≤cable diameter ≤ 20mm, allowable bending radius ≤ 4 times the outer diameter of the cable,
cable diameter ≥20mm, allowable bending radius≤6 times the outer diameter of the cable.

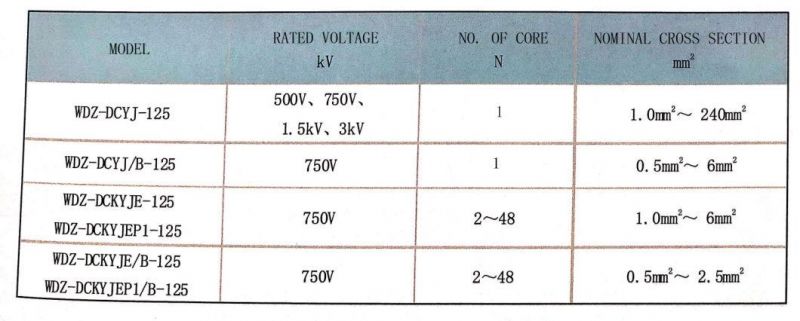

Specification


Guangdong Linegiant Cable Co., Ltd. started in January 1994 and is a leader in the energy cable industry in Southeast Asia and East Asia.We have an excellent R&D team in China's wire and cable industry, and the world's top production testing equipment. Products sell well all over the world, and our position in the wire and cable industry in East Asia and Southeast Asia is unassailable.Headquartered in Guangzhou, China, we have two well-known brands, Nandian and Southcable, in Dongguan and India. We are a national high-tech enterprise and a key enterprise in Guangdong Province, occupying the leading position in energy, communication and high-tech wire and cable, and accounting for 30% of high-speed railway locomotive cables in China, more than 60% of residential wires, high-speed rail, ship and warship cables in Hong Kong and Guangzhou.
