- Material Shape:Round Wire
- Range of Application:Flame Retardant

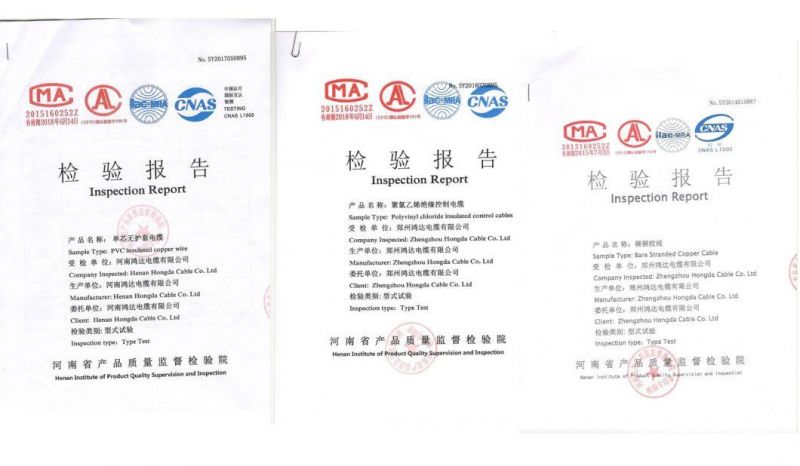

- Certification:ISO9001, CCC
- Brand:Hongda
- Transport Package:in Drum or in Coil
- Specification:1.5 2.5 4 6 10 16 25 35 50 70 95
- Trademark:OEM
- Origin:Henan
- HS Code:8544492100
- Production Capacity:10000 M Per Day
Description | Multicore Flexible Shielding Cable |
Conductor: | Stranded Copper Conductor of Class 5/6 (Flexible) |
Insulation: | PVC Compound |
Insulation Color | Red, Blue, Grey, Yellow/Green or as request |
Sheath | PVC Compound |
Sheath Color | White, Black, Grey |
Shielding(Screen) | Aluminum Alloy, Tinned Copper, Pure Copper |
Temperature Range: | -30 - 70ºC |
Nominal Voltage: | 300/500V, 450/750 V |
Test Voltage: | 2000 V |
Minimal Bending Radius: | 4D for D < 8 mm 5D for 8 - 12 mm 6D for D > 12 |
Standard | IEC 60552 |
Technical Data
Cores x conductor cross-section | External diameter | Cu weight | Cable weight |
| approx. | | approx. |
N x mm² | mm | kg/km | kg/km |
2 x 0,5 | 5,3 | 32 | 45 |
3 x 0,5 | 5,6 | 39 | 55 |
4 x 0,5 | 6,3 | 46 | 61 |
5 x 0,5 | 6,6 | 52 | 74 |
6 x 0,5 | 7,2 | 66 | 89 |
7 x 0,5 | 7,6 | 68 | 98 |
8 x 0,5 | 8,3 | 80 | 117 |
10 x 0,5 | 9 | 81 | 135 |
12 x 0,5 | 9,5 | 117 | 157 |
14 x 0,5 | 10,4 | 122 | 190 |
16 x 0,5 | 11,2 | 123 | 210 |
18 x 0,5 | 11 | 156 | 217 |
20 x 0,5 | 11,8 | 173 | 240 |
21 x 0,5 | 12,3 | 189 | 250 |
24 x 0,5 | 13 | 236 | 300 |
25 x 0,5 | 13,6 | 250 | 314 |
30 x 0,5 | 14 | 297 | 360 |
32 x 0,5 | 15,2 | 301 | 425 |
34 x 0,5 | 15,3 | 312 | 433 |
36 x 0,5 | 15,7 | 320 | 446 |
40 x 0,5 | 16,5 | 343 | 475 |
50 x 0,5 | 18,4 | 407 | 573 |
|
2 x 0,75 | 6,2 | 39 | 59 |
3 x 0,75 | 6,2 | 49 | 66 |
4 x 0,75 | 6,7 | 57 | 77 |
5 x 0,75 | 7,4 | 70 | 93 |
6 x 0,75 | 8 | 78 | 113 |
7 x 0,75 | 8,6 | 98 | 130 |
8 x 0,75 | 9,2 | 16 | 145 |
10 x 0,75 | 10,3 | 140 | 180 |
12 x 0,75 | 10,7 | 151 | 202 |
14 x 0,75 | 11,4 | 144 | 225 |
16 x 0,75 | 12 | 172 | 275 |
18 x 0,75 | 12,8 | 207 | 292 |
20 x 0,75 | 13,4 | 220 | 320 |
24 x 0,75 | 15,5 | 250 | 435 |
25 x 0,75 | 15,6 | 271 | 415 |
27 x 0,75 | 15,8 | 287 | 435 |
30 x 0,75 | 16,1 | 297 | 450 |
32 x0,75 | 16,6 | 330 | 484 |
34 x 0,75 | 17,2 | 370 | 535 |
37 x 0,75 | 18,1 | 386 | 592 |
42 x 0,75 | 18,8 | 430 | 610 |
50 x 0,75 | 20,8 | 480 | 777 |
61 x 0,75 | 23,7 | 555 | 900 |
|
2 x 1 | 6,7 | 55 | 65 |
3 x 1 | 7 | 70 | 80 |
4 x 1 | 7,1 | 80 | 98 |
5 x 1 | 8,5 | 95 | 127 |
6 x 1 | 9,1 | 105 | 144 |
7 x 1 | 9,7 | 120 | 158 |
8 x 1 | 11 | 130 | 197 |
10 x 1 | 12 | 138 | 232 |
12 x 1 | 12,4 | 186 | 260 |
14 x 1 | 13 | 198 | 302 |
16 x 1 | 13,9 | 203 | 346 |
18 x 1 | 14,5 | 245 | 380 |
20 x 1 | 15,8 | 286 | 440 |
25 x 1 | 18 | 342 | 534 |
34 x 1 | 20,6 | 440 | 741 |
37 x 1 | 21 | 485 | 790 |
50 x 1 | 24,2 | 626 | 1205 |
61 x 1 | 27,3 | 710 | 1205 |
|
2 x 1,5 | 7,3 | 65 | 88 |
3 x 1,5 | 7,7 | 90 | 100 |
4 x 1,5 | 8,3 | 110 | 126 |
5 x 1,5 | 9,4 | 125 | 160 |
7 x 1,5 | 10,7 | 159 | 208 |
8 x 1,5 | 12 | 172 | 244 |
10 x 1,5 | 13,4 | 193 | 315 |
12 x 1,5 | 13,6 | 254 | 338 |
14 x 1,5 | 13,7 | 272 | 383 |
16 x 1,5 | 14,3 | 285 | 424 |
18 x 1,5 | 16,3 | 367 | 479 |
21 x 1,5 | 17 | 424 | 560 |
24 x 1,5 | 19,7 | 448 | 690 |
25 x 1,5 | 20,3 | 492 | 705 |
34 x 1,5 | 21,3 | 683 | 950 |
42 x 1,5 | 25,8 | 782 | 160 |
50 x 1,5 | 26,7 | 977 | 1290 |
61 x 1,5 | 29,1 | 1120 | 1705 |
|
2 x 2,5 | 9 | 98 | 130 |
3 x 2,5 | 9,9 | 148 | 167 |
4 x 2,5 | 10,2 | 174 | 195 |
5 x 2,5 | 11,6 | 200 | 223 |
7 x 2,5 | 13,7 | 235 | 344 |
10 x 2,5 | 15,8 | 335 | 460 |
12 x 2,5 | 18,2 | 440 | 570 |
18 x 2,5 | 19 | 569 | 978 |
25 x 2,5 | 22,2 | 827 | 1358 |
|
3 x 4 | 11,5 | 178 | 245 |
4 x 4 | 12,9 | 290 | 310 |
5 x 4 | 14,3 | 328 | 385 |
7 x 4 | 15,4 | 355 | 500 |
|
3 x 6 | 13 | 240 | 315 |
4 x 6 | 14,7 | 360 | 415 |
5 x 6 | 16,4 | 441 | 509 |
7 x 6 | 18 | 505 | 672 |
|
3 x 10 | 16,9 | 371 | 490 |
4 x 10 | 18,9 | 535 | 731 |
5 x 10 | 20,7 | 714 | 853 |
7 x 10 | 22,6 | 820 | 1291 |
|
4 x 16 | 20,8 | 809 | 993 |
5 x 16 | 22,9 | 1050 | 1295 |
7 x 16 | 24,8 | 1470 | 1813 |
Application
Flexible signal cable used for surveillance and control of static or mobile devices in industry, electric plants or offices. Screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances. Lightweight and relatively thin, resistant to medium mechanical loads, used for fixed or limited mobile installations (not permanently mobile) without strain. Installed in dry or damp premises, outdoor application only under protection against UV-irradiation. Not intended for laying in ground or water.
