UL1668 Multi-Core FEP Insulated Cable
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Underground
- Conductor Material：Copper
- Sheath Material：FEP
- Insulation Material：FEP
Base Info
- Model NO.：UL1668
- Material Shape：Round Wire
- Range of Application：Heating
- Certification：ISO9001, CE, UL, CCC, RoHS, CSA
- Brand：Fongming
- Name：UL1668 Multi-Core FEP Insulated Cable
- Rating Voltage：300V
- Working Temperature：200c
- Color：as Required, Red, Green, Yellow, Blue
- Sample：3 Meters Free, 3 Days
- Customize：Available
- MOQ：2000 Meters
- Standard：UL758, UL1581
- Transport Package：305m Per Roll, Carton Box Outside
- Specification：2*18~7*14AWG
- Trademark：Fongming
- Origin：Yangzhou, P. R China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. UL1668 Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name UL1668 Multi-Core FEP Insulated Cable Rating Voltage 300V Working Temperature 200c Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 2000 Meters Standard UL758, UL1581 Transport Package 305m Per Roll, Carton Box Outside Specification 2*18~7*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
Product DescriptionUL1668 Multi-Core FEP Insulated Cable
Description
Name: Multi-core FEP Insulated Wire
Model: UL1668
Size: 2*18~7*14AWG
Feature
Ratings Voltage: 300V
Rated Temperature: 200C

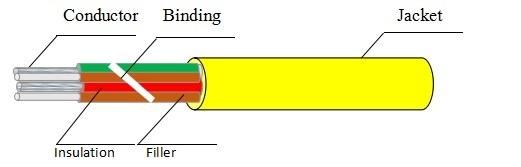

Structure
Conductor: Tinned Copper/Nickel Plated Copper
Insulation: Extruded FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
Shield:Optional
Jacket:FEP
| Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Jacket Thickness (mm) | O.D. (mm) |
| 2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.51 | 4.4±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.51 | 4.7±0.2 |
| 4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.51 | 5.1±0.3 |
| 5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.51 | 5.6±0.3 |
| 6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.51 | 5.8±0.3 |
| 7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.51 | 6.1±0.3 |
| 2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.51 | 5.0±0.3 |
| 3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.51 | 5.4±0.3 |
| 4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.51 | 5.9±0.3 |
| 5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.51 | 6.5±0.3 |
| 6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.51 | 6.7±0.3 |
| 7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.51 | 7.1±0.4 |
| 2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.51 | 5.8±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.51 | 6.2±0.3 |
| 4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.51 | 6.8±0.3 |
| 5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.51 | 7.5±0.4 |
| 6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.51 | 7.7±0.4 |
| 7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.51 | 8.2±0.4 |
