• Model NO.：type E
• Material Shape：Round Wire
• Range of Application：Temperature Sensors
• Certification：ISO9001, CE, RoHS
• Brand：Ht Elite
• Types：K,J,E,N,T,R,S,B
• Standard：IEC584
• Temperature：0-300 Degree
• Samples：Available
• Packing：200m,Roll, 250m,Roll, 500, Roll
• Other Packing：Plastic Spool
• Production Time：10-15 Days
• Transport Package：in Roll
• Specification：AWG 24, 22, 20, 18, 16, 14, 12
• Trademark：no
• Origin：China
• HS Code：8544491900
• Production Capacity：80, 0000

Basic Info.

Model NO. type E Material Shape Round Wire Range of Application Temperature Sensors Certification ISO9001, CE, RoHS Brand Ht Elite Types K/J/E/N/T/R/S/B Standard IEC584 Temperature 0-300 Degree Samples Available Packing 200m/Roll, 250m/Roll, 500, Roll Other Packing Plastic Spool Production Time 10-15 Days Transport Package in Roll Specification AWG 24, 22, 20, 18, 16, 14, 12 Trademark no Origin China HS Code 8544491900 Production Capacity 80, 0000

Product Description

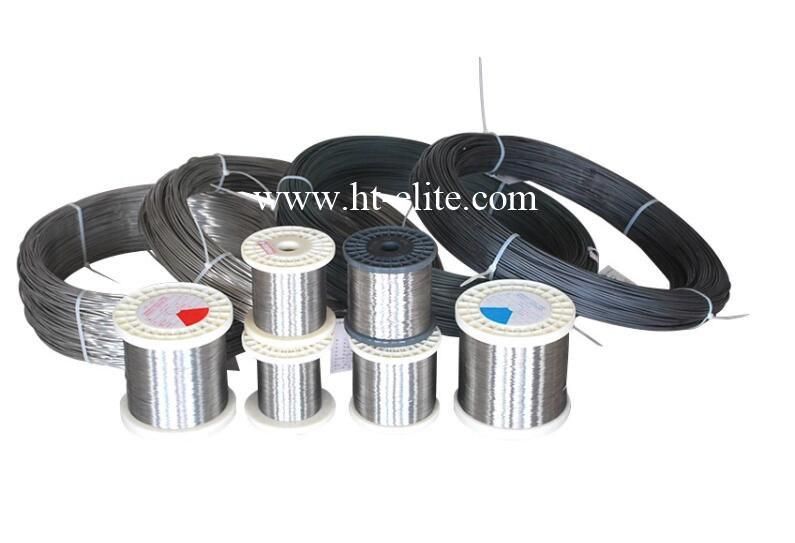

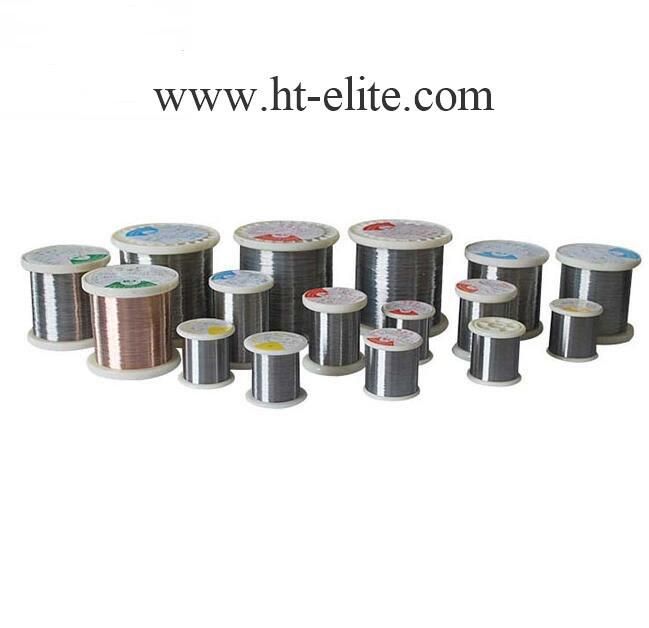

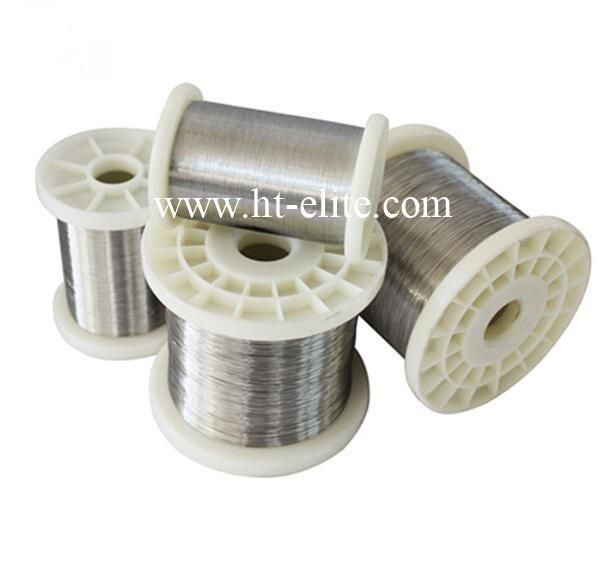

E Type Thermocouple bare Alloy Wire


1. Thermocouple Wire Introduction:


NiCr- CuNi thermocouple (type E) is also named NiCr-Constantan thermocouple.. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.

Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases

Type E chemical composition:

Positive leg NiCr (EP) is Ni: Cr≈90:10; negative leg Constantan (EN) isCu: Ni≈ 55%: 45%

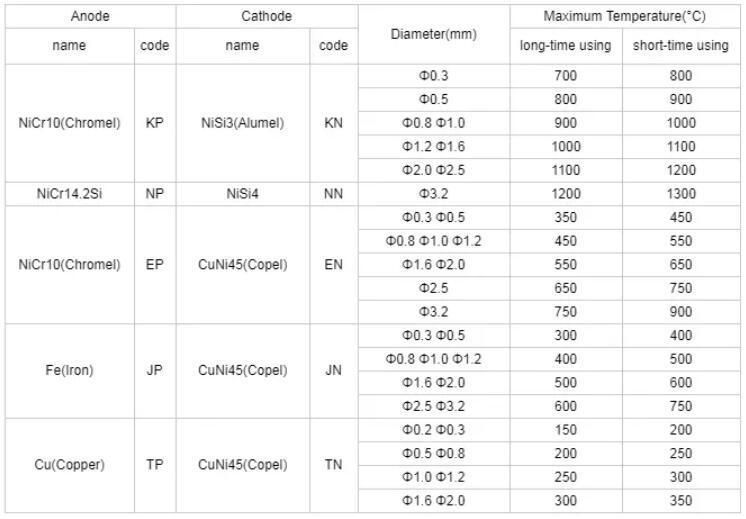

Type E Temperature Range:

    (1)Thermocouple grade wire, -200~900 ºC(for short term) and 0~750ºC( for long term)

    (2)Extension wire, 32 to 392F (0 to 200C)

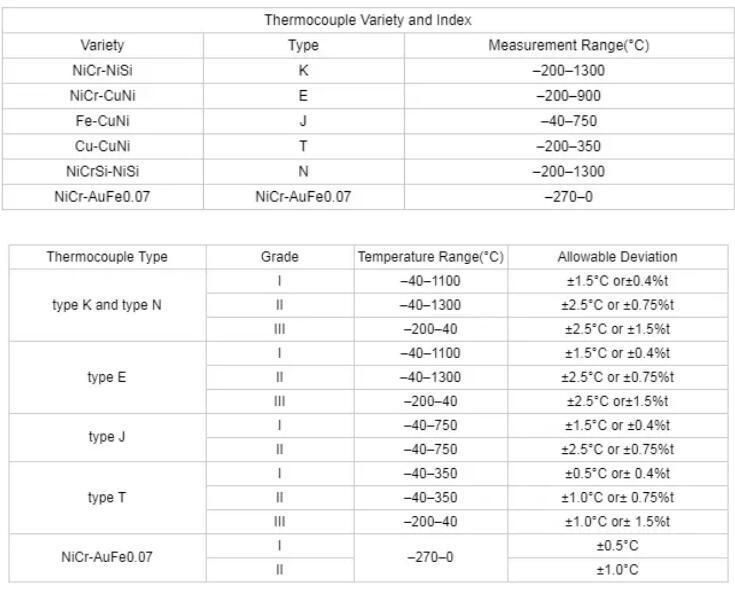

Type E Tolerance :

    Standard: ±1.5ºC/±0.4%t

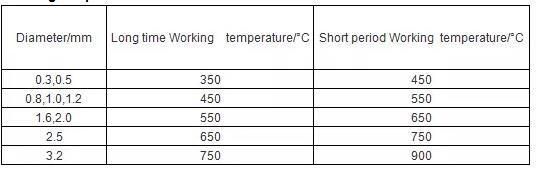

Working temperature:



Other product series :

FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.

NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.

CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.

Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.

Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.

Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.

Incoloy alloy: Incoloy 800,800H,800HT,825,925.

Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.

Monel Alloy: Monel 400,K500.

High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.

Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.

Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
