Ntscgewoeu Rubber Trailing Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Rubber
- Sheath Material：Rubber
- Material Shape：Round Wire
Base Info
- Model NO.：NTSCGEWOEU
- Wire Core Material：Tinned Wire
- Certification：ISO, CCC, CE, VDE
- Model：Ntscgewoeu
- Brand：Yifang
- Standard：DIN VDE 0250, Part 813
- Transport Package：Drum
- Specification：3x50+3x25,3mm2
- Trademark：YIFANG
- Origin：China
- HS Code：8544492100
- Production Capacity：5000m Per Week
Description
9Outer Sheath Nominal thickness mm 4.5 Color of sheath -- Red 10 Approx. Overall Dia. of cable mm 78~82 11 Approx. Weight kg/km 8500 12 Minimum Bending Radius
for installation 7D according to VDE 0298 PART 3 13 Max. Permissible Tension Strength N/mm2 ≥15 14 Standard Packing Length m 500
for installation

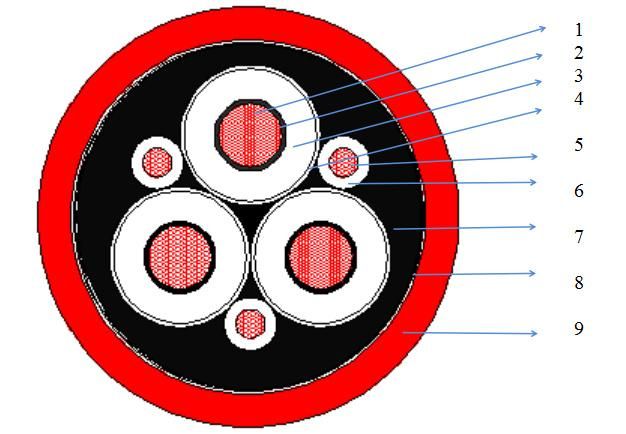

- POWER CORE
- SEMI-CONDUCTIVE LAYER
- INSULATION
- OUTER SEMI-CONDUCTIVE LAYER
- GROUND CORE
- SEMI-CONDUCTIVE LAYER
- INNER SHEATH
- ANTITOSION BRAID REINFORCEMENT
- OUTER SHEATH
