• Model NO.：JX-G-GPF, KX-G-GPF
• Material Shape：Round Wire
• Range of Application：Temperature Measurement
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Fongming
• Name：FEP Fiberglass Insulation Shielded Extension Wire
• Color：as Required, Red, Green, Yellow, Blue
• Sample：3 Meters Free, 3 Days
• Customize：Available
• MOQ：1000 Meters
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：2*26-2*14AWG
• Trademark：Fongming
• Origin：Yangzhou, P. R China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. JX-G-GPF, KX-G-GPF Material Shape Round Wire Range of Application Temperature Measurement Certification ISO9001, CE, UL, CCC, RoHS Brand Fongming Name FEP Fiberglass Insulation Shielded Extension Wire Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 2*26-2*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

Product Description

FEP Fiberglass Insulation Shielded Extension Wire

Description
Name: FEP Fiberglass Insulation Shielded Extension Wire
Model: JX-G-GPF, KX-G-GPF
Size: 2*26-2*14AWG

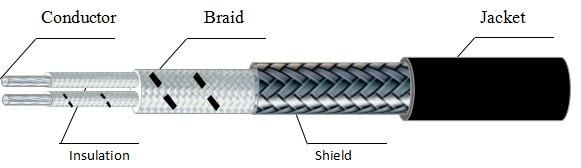

Structure
Conductor: Fe, Cu-Ni (Or other material for K S T E N L R Type)
Insulation: Fiberglass Braid with Silicone Resin Coating
Braid: Fiberglass Braid with Silicone Resin Coating
Shield: Tinned Copper
Jacket: FEP







Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Shield Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3*2.0	0.2	1.7*2.2	0.5	2.7±0.2*3.2±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4*2.2	0.2	1.8*2.4	0.5	2.8±0.2*3.4±0.2
2*22	7/0.254	0.76	0.2	1.2	0.2	1.6*2.6	0.2	2.0*2.8	0.5	3.0±0.2*3.8±0.2
2*20	7/0.32	0.96	0.2	1.4	0.2	1.8*3.0	0.2	2.2*3.2	0.5	3.2±0.2*4.2±0.2
2*18	7/0.39	1.17	0.2	1.6	0.2	2.0*3.4	0.2	2.4*3.6	0.5	3.4±0.2*4.6±0.2
2*16	19/0.3	1.5	0.2	1.9	0.2	2.3*4.0	0.2	2.7*4.2	0.5	3.7±0.2*5.2±0.2
2*14	19/0.37	1.85	0.2	2.3	0.2	2.7*4.8	0.2	3.1*5.0	0.5	4.1±0.2*6.0±0.2

Certifications



Company Information





Packaging&Shipping





Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.



2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3. Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
