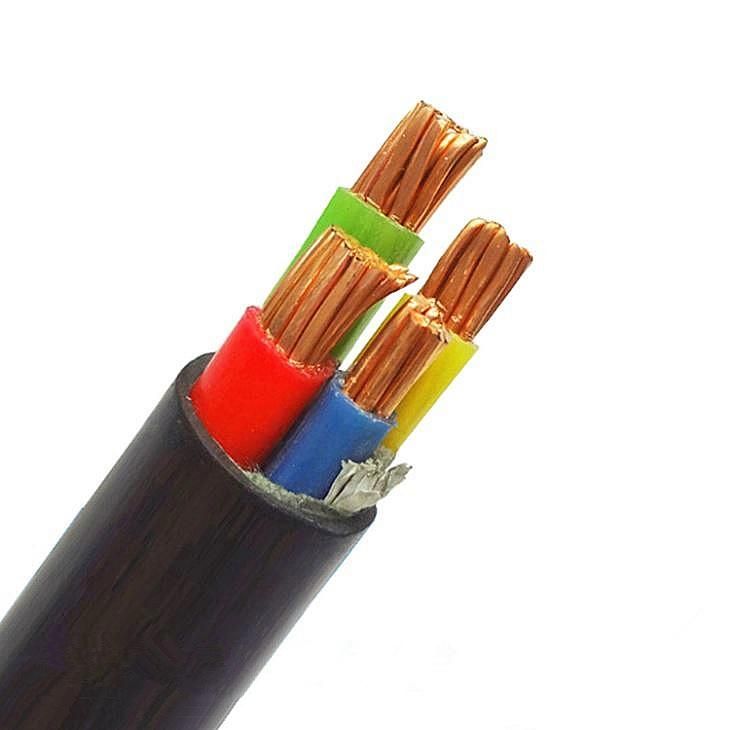

0.6/1kv XLPE Insulated Halogen Free Flame Retardant Polyolefin Sheathed Power Cable Hfco

Henan Hongda Cable Co., Ltd.

Application：Construction, Underground, Industrial, Power Station
Voltage：Low and Medium Voltage Cable
Current：AC Cable
Insulation Material：XLPE
Sheath Material：Halogen Free Flame Retardant Polyolefin
Material Shape：Round Wire

Base Info

Model NO.：Cable HFCO
Wire Core Material：Red Copper Wire
Certification：ISO, CCC
Model：4 Core 120mm XLPE Cable
Brand：OEM
Transport Package：Wooden Drum
Specification：1.5-500mm2
Trademark：OEM
Origin：China(Mainland)
HS Code：8544492100
Production Capacity：500 Kilometer,Month

Description

Operating Voltage0.6/1kVOperating Temperature-15°C to 90°CFinal Short Circuit Temperature250CTest Voltage3.5kV for 5 minutes

Installation Reference

Min. Bending Radius (mm)8 x cable overall diameterMax. Pulling Tension (N/mm2)50

Reference Standards

Design SpecificationIEC60502-1ConductorIEC60228, BS EN60228Flame RetardancyIEC60332-3-22, BS EN60332-3-22Halogen Free Flame Retardant PolyolefinIEC61034-2, BS EN61034-2
IEC60754-1,IEC60754-2
BS EN50267-2-1, BS EN50267-2-2
